BF30 AX SHA (BAWS) - Honda Marine Engine, Made in Japan (SN: BAWS-3000001 - BAWS-9999999) SWIVEL CASE Parts Diagram

Marine Engine, Made in Japan

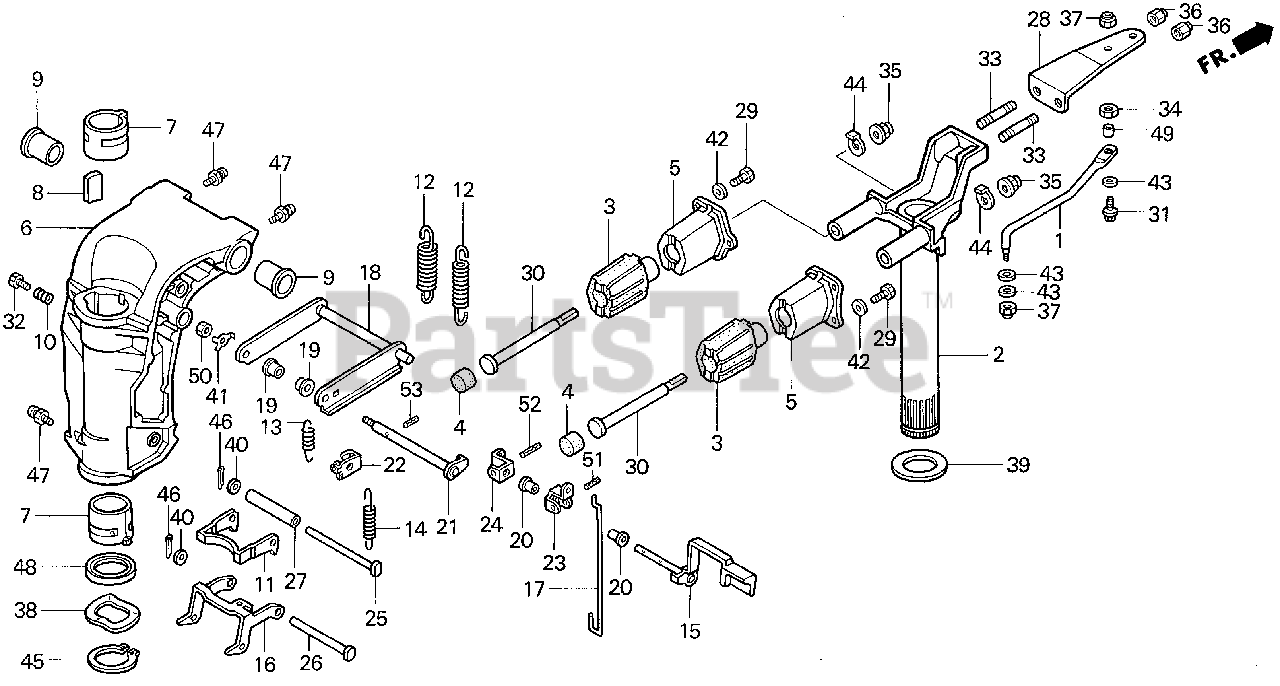

SWIVEL CASE Parts Diagram

  • Title

2

Honda 50100-ZV7-000ZA

FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

3

Honda 50151-ZV5-000

RUBBER, MOUNTING (UPPER)

$100.99

$

Usually ships in 3-6 days

0

4

Honda 50153-ZV5-000

RUBBER, MOUNTING (UPPER) (B)

$5.99

$

Usually ships in 3-6 days

0

5

Honda 50167-ZV7-000ZA

HOLDER, MOUNTING (UPPER) *NH282MU* (OYSTER SILVER METALLIC-U)

$73.99

$

Usually ships in 3-6 days

0

6

Honda 50201-ZV7-010ZA

SEE PART DETAILS - SUP; CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

7

Honda 50211-ZV5-003

LINER, SWIVEL CASE

$13.99

$

Usually ships in 3-6 days

0

8

Honda 50212-ZV5-000

BLOCK, FRICTION

$

$

Not available

9

Honda 50214-ZV5-003

BUSH, SWIVEL CASE

$11.99

$

Usually ships in 3-6 days

0

10

Honda 50233-881-000

SPRING, FRICTION ADJUSTING

$7.49

$

Usually ships in 3-6 days

0

11

Honda 50512-ZV7-000

HOOK, REVERSE LOCK

$

$

Not available

12

Honda 50514-ZV7-000

SPRING, REVERSE LOCK

$

$

Not available

13

Honda 50515-ZV4-300

SPRING, TILT LEVER

$

$

Not available

14

Honda 50516-ZV4-300

SPRING, TILT LINK

$7.49

$

In Stock, only 3 left!

0

15

Honda 50517-ZV7-000

SEE PART DETAILS - SUP; LEVER, TILT
(Superseded to 50517-ZV7-020)

Note: Use up to Frame SN 3000442.

$

$

Not available

15

Honda 50517-ZV7-010

SEE PART DETAILS - SUP; LEVER, TILT
(Superseded to 50517-ZV7-020)

Note: Use from Frame SN 3000443.

$

$

Not available

16

Honda 50518-ZV7-000

ARM, REVERSE LOCK

$

$

Not available

17

Honda 50519-ZV7-000

ROD, RELEASE SWIVEL CASE

$

$

Not available

18

Honda 50520-ZV7-010

SEE PART DETAILS - PRI; ARM, TILT

$111.99

$

Usually ships in 3-6 days

0

19

Honda 50521-ZV1-000

BUSH, TILT LEVER

$8.99

$

Usually ships in 3-6 days

0

20

Honda 50522-ZV4-000

BUSH, TILT LEVER

$7.99

$

In Stock, only 1 left!

0

21

Honda 50525-ZV7-000

SEE PART DETAILS - SUP; SHAFT, TILT

Note: Use up to Frame SN 3000442.

$

$

Not available

21

Honda 50525-ZV7-010

SEE PART DETAILS - SUP; SHAFT, TILT
(Superseded to 50525-ZV7-020)

Note: Use from Frame SN 3000443.

$

$

Not available

21

Honda 50525-ZV7-020

SEE PART DETAILS - PRI; SHAFT, TILT

Note: Use from Frame SN 3000443.

$

$

Not available

22

Honda 50526-ZV4-000

BRACKET, TILT SHAFT

$13.99

$

Usually ships in 3-6 days

0

23

Honda 50527-ZV4-000

BRACKET, RELEASE ROD

Note: Use up to Frame SN 3000442.

$

$

Not available

23

Honda 50527-ZV4-010

BRACKET, RELEASE ROD

Note: Use from Frame SN 3000443.

$7.99

$

In Stock, only 1 left!

0

24

Honda 50528-ZV4-000

BRACKET, TILT LEVER

Note: Use up to Frame SN 3000442.

$

$

Not available

24

Honda 50528-ZV4-010

BRACKET, TILT LEVER

Note: Use up to Frame SN 3000443.

$7.99

$

Usually ships in 3-6 days

0

25

Honda 50531-ZV7-000

SHAFT, REVERSE LOCK (A)

$14.99

$

Usually ships in 3-6 days

0

26

Honda 50532-ZV4-000

SHAFT, REVERSE LOCK (B)

$10.99

$

Usually ships in 3-6 days

0

27

Honda 50533-ZV4-000

COLLAR, REVERSE LOCK

$

$

Not available

29

Honda 90101-ZV1-000

BOLT, HEX. (6X18)

$4.49

$

Usually ships in 3-6 days

0

30

Honda 90101-ZV5-003

BOLT, SPECIAL (10X130)

$70.99

$

Usually ships in 3-6 days

0

32

Honda 90109-ZV4-000

BOLT, SPECIAL (8X20)

$5.99

$

Usually ships in 3-6 days

0

33

Honda 90109-ZV5-000

BOLT, STUD (10X28)

$9.99

$

Usually ships in 3-6 days

0

35

Honda 90305-ZW3-H00

SEE PART DETAILS - SUP; NUT, FLANGE (10MM)

$

$

Not available

38

Honda 90501-ZV5-000

WASHER, WAVE (40MM)

$11.99

$

Usually ships in 3-6 days

0

39

Honda 90504-ZV5-000

WASHER, THRUST (34MM)

$11.99

$

Usually ships in 3-6 days

0

40

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 6

0

41

Honda 90505-ZV4-000

WASHER, LOCK

$4.99

$

Usually ships in 3-6 days

0

42

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.99

$

In Stock, only 2 left!

0

44

Honda 90544-ZV7-000

SEE PART DETAILS - SUP; WASHER, SPECIAL
(Superseded to 90544-ZV7-030)

$4.49

$

Usually ships in 3-6 days

0

44

Honda 90544-ZV7-010

SEE PART DETAILS - PRI; WASHER, SPECIAL
(Superseded to 90544-ZV7-030)

$4.49

$

Usually ships in 3-6 days

0

45

Honda 90651-ZV5-000

CIRCLIP (OUTER) (39MM)

$11.99

$

Usually ships in 3-6 days

0

46

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$2.49

$

Usually ships in 3-6 days

0

47

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

In Stock, only 4 left!

0

48

Honda 91256-ZV5-003

SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6)

$11.99

$

Usually ships in 3-6 days

0

50

Honda 94002-06490-0S

NUT, HEX. (6MM)

$3.99

$

Usually ships in 3-6 days

0

51

Honda 94305-25223

PIN, SPRING (2.5X22)

Note: Use up to Frame SN 3000442.

$2.49

$

Usually ships in 3-6 days

0

51

Honda 90751-ZV4-C20

SEE PART DETAILS - SUP; PIN, SPRING (3.0X22)
(Superseded to 90751-ZV4-C21)

Note: Use from Frame SN 3000443.

$4.49

$

Usually ships in 3-6 days

0

51

Honda 90751-ZV4-C21

SEE PART DETAILS - PRI; PIN, SPRING (3.0X22)

Note: Use from Frame SN 3000443.

$4.49

$

Usually ships in 3-6 days

0

52

Honda 94305-25253

PIN, SPRING (2.5X25)

Note: Use up to Frame SN 3000442.

$2.49

$

Usually ships in 3-6 days

0

52

Honda 90752-ZV4-C20

SEE PART DETAILS - SUP; PIN, SPRING (3.0X25)
(Superseded to 90752-ZV4-C21)

Note: Use from Frame SN 3000443.

$4.49

$

Usually ships in 3-6 days

0

52

Honda 90752-ZV4-C21

SEE PART DETAILS - PRI; PIN, SPRING (3.0X25)

Note: Use from Frame SN 3000443.

$4.49

$

Usually ships in 3-6 days

0

53

Honda 94305-30253

PIN, SPRING (3X25)

Note: Use up to Frame SN 3000442.

$2.49

$

In Stock, only 1 left!

0

53

Honda 90752-ZV4-C20

SEE PART DETAILS - SUP; PIN, SPRING (3.0X25)
(Superseded to 90752-ZV4-C21)

Note: Use from Frame SN 3000443.

$4.49

$

Usually ships in 3-6 days

0

53

Honda 90752-ZV4-C21

SEE PART DETAILS - PRI; PIN, SPRING (3.0X25)

Note: Use from Frame SN 3000443.

$4.49

$

Usually ships in 3-6 days

0
