BF350 A UDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

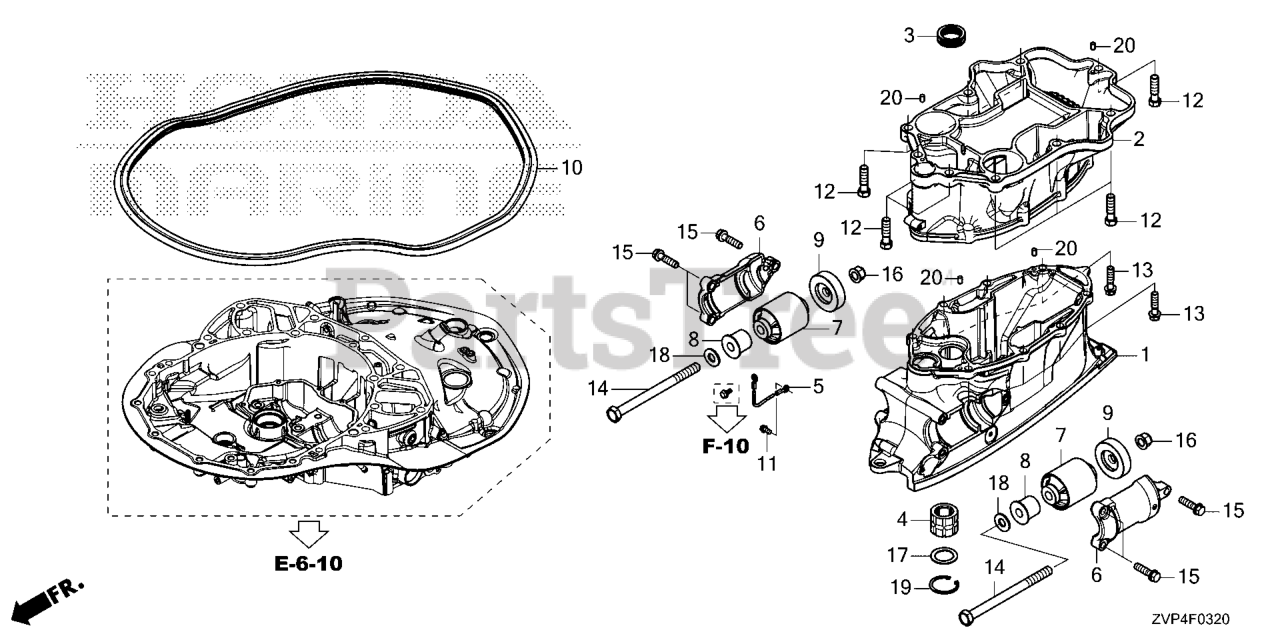

EXTENSION CASE Parts Diagram

  • Title

1

Honda 40201-ZVP-000

CASE, EXTENSION

$508.99

$

Usually ships in 3-6 days

0

2

Honda 40203-ZVP-000

SEPARATOR, EXTENSION

$508.99

$

Usually ships in 3-6 days

0

3

Honda 40204-ZVP-000

GROM, EXTENSION CASE

$6.49

$

Usually ships in 3-6 days

0

4

Honda 40210-ZY3-610

BUSH, VERTICAL SHAFT

$47.99

$

Usually ships in 3-6 days

0

5

Honda 40219-ZY3-023

WIRE, LEAD (1.5X116MM)

$13.99

$

Usually ships in 3-6 days

0

6

Honda 50111-ZVP-000

HSG, MT (LOWER)

$67.99

$

Usually ships in 0 days

0

7

Honda 50155-ZVP-000

MOUNT COMP, RUBBER

$91.99

$

Usually ships in 0 days

0

8

Honda 50156-ZVP-000

COLR, MOUNT (LOWER)

$24.99

$

Usually ships in 0 days

0

9

Honda 50157-ZVP-000

STOPPER, MOUNT

$49.99

$

Usually ships in 3-6 days

0

10

Honda 63718-ZVP-000

SEAL, MOUNT CASE

$79.99

$

Usually ships in 0 days

0

11

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90103-ZVL-000

BOLT-WASHER (12X50)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90105-ZVP-000

BOLT-WASHER (10X37)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90107-ZVP-000

BOLT, HEX. (14X185)

$59.99

$

Usually ships in 3-6 days

0

15

Honda 90123-ZY6-000

BOLT-WASHER (10X40)

$9.99

$

Usually ships in 3-6 days

0

16

Honda 90302-ZVP-000

NUT (14MM)

$16.99

$

Usually ships in 3-6 days

0

17

Honda 90503-ZY3-610

WASHER (30MM)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90511-ZY3-000

WASHER, PLAIN (14MM)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90652-ZY3-000

CIRCLIP (INNER) (43)

$16.99

$

Usually ships in 3-6 days

0

20

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$4.49

$

In Stock, only 2 left!

0
