BF350 A XCDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (SECOND) Parts Diagram

Marine Engine, Made in Japan

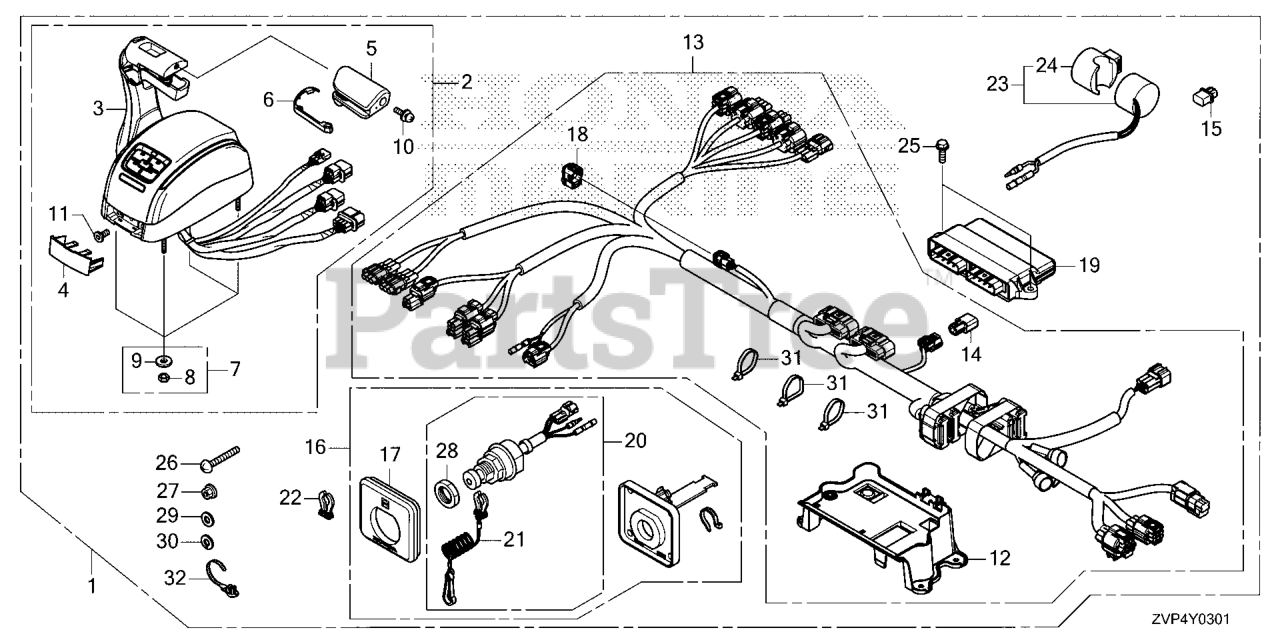

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (SECOND) Parts Diagram

  • Title

1

Honda 06250-ZVP-A00

BOX KIT (TWIN-2ND)
(Superseded to 06250-ZVP-A01)

Note: (Optional)

$3104.99

$

Usually ships in 3-6 days

0

2

Honda 24800-ZVP-601

BOX ASSY., REMOTE CONTROL (TOP MOUNT SINGLE)(RH)

Note: (Optional)

$

$

Not available

3

Honda 24810-ZVP-601

CONTROL HEAD

Note: (Optional)

$1748.99

$

Usually ships in 3-6 days

0

4

Honda 24811-ZVP-701

COVER CAP

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0

5

Honda 24821-ZVP-601

GRIP

Note: (Optional)

$52.99

$

Usually ships in 3-6 days

0

6

Honda 24822-ZVP-601

GRIP PLATE

Note: (Optional)

$93.99

$

Usually ships in 3-6 days

0

7

Honda 24840-ZVL-701

NUT SET, MOUNTING

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

8

Honda 24841-ZVL-701

NUT

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 24842-ZVL-701

WASHER

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 24891-ZVP-701

PAN HEAD SCREW

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 24892-ZVP-701

SOCKET HEAD CAP SCRE

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 30420-ZVP-000

CASE, CONTL UNIT

Note: (Optional)

$37.99

$

Usually ships in 3-6 days

0

13

Honda 30430-ZVP-A60

CASE (TWIN-2ND)

Note: (Optional)

$1083.99

$

Usually ships in 3-6 days

0

14

Honda 32107-ZVL-003

TERMINATOR ASSY.

Note: (Optional)

$16.99

$

Usually ships in 3-6 days

0

15

Honda 32108-ZVL-003

DUMMY, WATERPROOF CONNECTOR

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

16

Honda 32390-ZVL-003

PANEL ASSY., EMERGENCY STOP

Note: (Optional)

$167.99

$

Usually ships in 3-6 days

0

17

Honda 32396-ZVL-003

PANEL, EMERGENCY STOP SWITCH

Note: (Optional)

$43.99

$

Usually ships in 3-6 days

0

18

Honda 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 34330-ZVP-003

UNIT ASSY., CONTL

Note: (Optional)

$1120.99

$

Usually ships in 3-6 days

0

20

Honda 36180-ZVL-003

SWITCH ASSY., EMERGENCY STOP

Note: (Optional)

$80.99

$

Usually ships in 3-6 days

0

21

Honda 36182-ZY6-003

WIRE, EMERGENCY

Note: (Optional)

$27.99

$

Usually ships in 3-6 days

0

22

Honda 36187-ZY6-003

CLIP, EMERGENCY LOCK

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

23

Honda 38400-ZY9-A00

BUZZER ASSY., WARNING

Note: (Optional)

$109.99

$

Usually ships in 3-6 days

0

24

Honda 38402-ZY9-A00

SUSPENSION, WARNING BUZZER

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

25

Honda 90018-ZZ5-M01

BOLT, FLANGE (6X20)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90301-ZZ5-M01

NUT, FLANGE (5MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90302-ZY6-003

NUT

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90501-ZZ5-M01

WASHER, PLAIN (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 90502-ZZ5-M01

WASHER, SPG (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 91058-MG9-681

BAND, SELF-LOCK Use from Frame SN 3000253.

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 91549-TTA-003

CLIP, BAND HARNESS (152.4MM) (BLACK)

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0
