BF350 A XCDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) SMART UNIT Parts Diagram

Marine Engine, Made in Japan

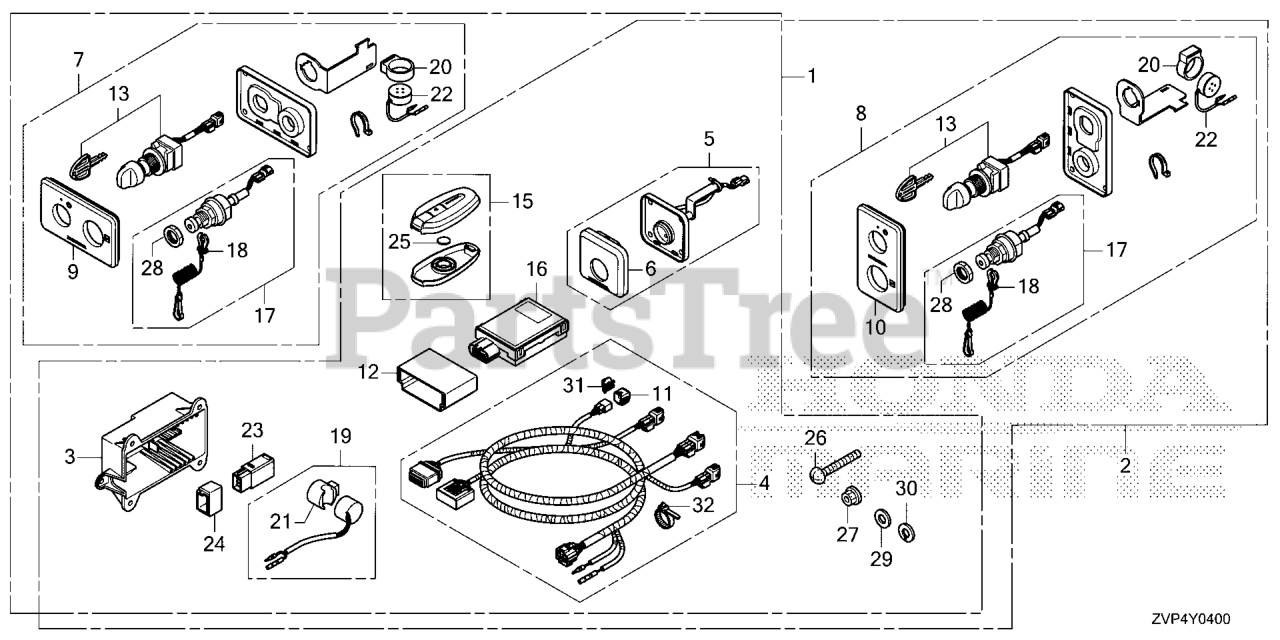

SMART UNIT Parts Diagram

  • Title

1

Honda 06311-ZVL-050

UNIT KIT, SMART KEY

Note: (Optional)

$2307.99

$

Usually ships in 3-6 days

0

2

Honda 06311-ZVL-805

UNIT KIT, SMART KEY

Note: (Optional)

$2208.99

$

Usually ships in 3-6 days

0

3

Honda 30435-ZVL-000

CASE, CONTROL UNIT (SMART)

Note: (Optional)

$64.99

$

Usually ships in 3-6 days

0

4

Honda 32145-ZVL-000

HARNESS ASSY., SMART KEY CONTROL

Note: (Optional)

$180.99

$

Usually ships in 3-6 days

0

5

Honda 32340-ZVL-601

PANEL ASSY., START STOP (SINGLE)

Note: (Optional)

$102.99

$

Usually ships in 3-6 days

0

6

Honda 32346-ZVL-601

PANEL, START STOP (SINGLE)

Note: (Optional)

$42.99

$

Usually ships in 3-6 days

0

7

Honda 32380-ZVL-601

PANEL ASSY., KEY SWITCH (SMART)

Note: (Optional)

$379.99

$

Usually ships in 3-6 days

0

8

Honda 32380-ZVL-611

PANEL ASSY., KEY SWITCH (SMART)

Note: (Optional)

$379.99

$

Usually ships in 3-6 days

0

9

Honda 32386-ZVL-601

PANEL, KEY SWITCH

Note: (Optional)

$42.99

$

Usually ships in 3-6 days

0

10

Honda 32386-ZVL-611

PANEL, KEY SWITCH

Note: (Optional)

$42.99

$

Usually ships in 3-6 days

0

11

Honda 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 34346-ZVL-000

SUSPENSION, CONTROL UNIT (SMART)

Note: (Optional)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 35100-ZVL-601

SWITCH ASSY., COMBINATION (SMART)

Note: (Optional)

$147.99

$

Usually ships in 3-6 days

0

15

Honda 35111-ZVL-003

FOB ASSY. (315MHZ) (NOT AVAILABLE)

Note: (Optional)

$150.99

$

Usually ships in 3-6 days

0

16

Honda 35140-ZVL-003

CONTROL UNIT, SMART (315MHZ)

Note: (Optional)

$1182.99

$

Usually ships in 3-6 days

0

17

Honda 36180-ZVL-003

SWITCH ASSY., EMERGENCY STOP

Note: (Optional)

$80.99

$

Usually ships in 3-6 days

0

18

Honda 36182-ZY6-003

WIRE, EMERGENCY

Note: (Optional)

$27.99

$

Usually ships in 3-6 days

0

19

Honda 38400-ZY9-A00

BUZZER ASSY., WARNING

Note: (Optional)

$109.99

$

Usually ships in 3-6 days

0

20

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT (Honda Code 1704642).

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

21

Honda 38402-ZY9-A00

SUSPENSION, WARNING BUZZER

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

22

Honda 38410-ZY9-A01

BUZZER, WARNING

Note: (Optional)

$67.99

$

Usually ships in 3-6 days

0

23

Honda 38580-ZZ5-003

RELAY ASSY., MAIN

Note: (Optional)

$64.99

$

Usually ships in 3-6 days

0

24

Honda 38586-ZZ5-003

SUSPENSION, RELAY

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

25

Honda 72148-S84-A10

BATTERY (CR2025) (MSDS)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

26

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90301-ZZ5-M01

NUT, FLANGE (5MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90302-ZY6-003

NUT

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90501-ZZ5-M01

WASHER, PLAIN (5MM)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 90502-ZZ5-M01

WASHER, SPG (5MM)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 91535-TA0-003

CLIP, CONNECTOR (DARK BROWN)

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

32

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0
