BF40 AX XRTA (BAYU) - Honda Marine Engine, Made in Japan (SN: BAYU-3000001 - BAYU-9999999) CARBURETOR Parts Diagram

Marine Engine, Made in Japan

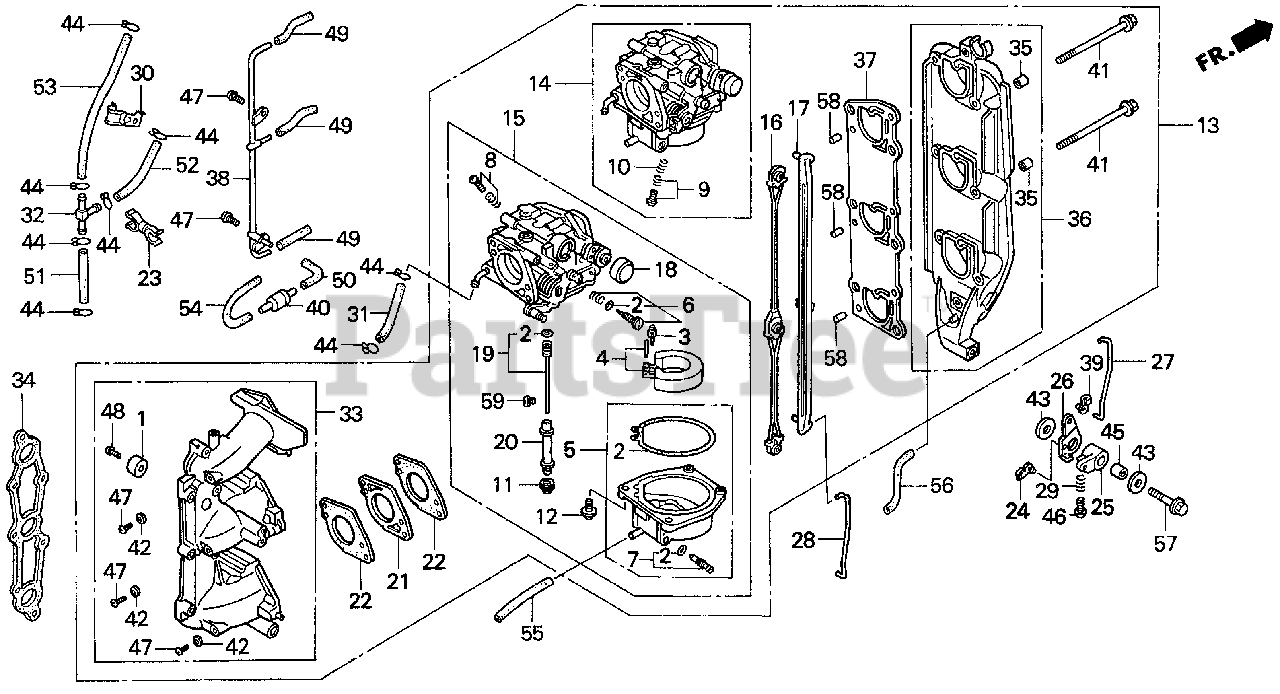

CARBURETOR Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

2

Honda 16010-ZV4-005

GASKET SET

$18.99

$

In Stock, only 2 left!

0

3

Honda 16011-ZV4-005

VALVE SET, FLOAT

$36.99

$

Usually ships in 3-6 days

0

4

Honda 16013-ZV4-005

FLOAT SET

Note: Use up to Engine SN BG30C A.

$38.99

$

Usually ships in 3-6 days

0

4

Honda 16013-ZW1-003

SEE PART DETAILS - SUP; FLOAT SET

Note: Use from Engine SN BG30C B.

$

$

Not available

5

Honda 16023-ZV3-000

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT

$79.99

$

Usually ships in 3-6 days

0

6

Honda 16016-ZV7-B51

SCREW SET

$10.99

$

In Stock, only 1 left!

0

7

Honda 16024-881-A00

SEE PART DETAILS - SUP; SCREW SET, DRAIN
(Superseded to 16024-ZY3-000)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZV3-000

SCREW SET

$11.99

$

Usually ships in 3-6 days

0

9

Honda 16029-ZV3-000

SCREW SET

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16052-MB0-671

SPRING

$7.99

$

Usually ships in 3-6 days

0

11

Honda 16071-ZV4-005

SCREW, PLUG

$7.99

$

Usually ships in 3-6 days

0

12

Honda 16081-ZV4-650

SCREW-WASHER

$3.99

$

Usually ships in 3-6 days

0

13

Honda 16100-ZW3-D23ZA

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BG30C C) *NH8* (DARK GRAY)

$

$

Not available

13

Honda 16100-ZW3-D21ZA

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BG30C A) *NH8* (DARK GRAY)
(Superseded to 16100-ZW3-D23ZA)

Note: Use up to Engine SN 2005846.

$

$

Not available

14

Honda 16101-ZW3-D23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1/#2)

Note: Use up to Engine SN BG30C A.

$

$

Not available

14

Honda 16101-ZW3-D23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1/#2)

Note: Use from Engine SN BG30C B.

$

$

Not available

14

Honda 16101-ZW3-D21

SEE PART DETAILS - SUP; CARBURETOR ASSY. (#1,#2)
(Superseded to 16101-ZW3-D23)

Note: Use up to Engine SN BG30C A.

$

$

Not available

15

Honda 16102-ZW3-D23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#3)

Note: Use up to Engine SN BG30C A.

$

$

Not available

15

Honda 16102-ZW3-D23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#3)

Note: Use from Engine SN BG30C B.

$

$

Not available

15

Honda 16102-ZW3-D21

SEE PART DETAILS - SUP; CARBURETOR ASSY. (#3)
(Superseded to 16102-ZW3-D23)

Note: Use up to Engine SN BG30C A.

$

$

Not available

16

Honda 16142-ZV3-000

LEVER, LINK

$

$

Not available

17

Honda 16144-ZV3-000

LINE, CHOKE

$

$

Not available

18

Honda 16148-141-881

CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

19

Honda 16150-ZV3-000

JET SET (#102)

$28.99

$

Usually ships in 3-6 days

0

20

Honda 16166-ZV5-681

NOZZLE, MAIN

$

$

Not available

21

Honda 16211-ZW4-000

INSULATOR, CARBURETOR

$10.99

$

Usually ships in 3-6 days

0

22

Honda 16221-ZW4-000

GASKET, CARBURETOR

$3.99

$

In Stock, only 2 left!

0

23

Honda 16223-ZV5-000

CLAMP, FUEL TUBE (A)

$5.49

$

In Stock, only 1 left!

0

24

Honda 16263-ZA0-000

JOINT, ROD

$4.99

$

In Stock, only 1 left!

0

25

Honda 16574-ZV5-000

ARM A, CHOKE

$

$

Not available

26

Honda 16575-ZV5-000

ARM B, CHOKE

$

$

Not available

27

Honda 16622-ZV5-000

ROD, CHOKE

$4.49

$

Usually ships in 3-6 days

0

28

Honda 16628-ZV5-000

ROD, CHOKE KNOB

$

$

Not available

29

Honda 16659-ZV5-000

SPRING, CHOKE ARM ADJUSTING

$

$

Not available

30

Honda 16815-ZV5-000

SEE PART DETAILS - SUP; CLAMP, FUEL TUBE

$

$

Currently unavailable

31

Honda 16871-ZV5-000

TUBE C, FUEL

$5.49

$

Usually ships in 3-6 days

0

32

Honda 16960-ME9-000

PIPE, THREE WAY JOINT

$20.99

$

Usually ships in 3-6 days

0

33

Honda 17100-ZV5-000ZA

MANIFOLD, IN. *NH8* (DARK GRAY)

$333.99

$

Usually ships in 3-6 days

0

34

Honda 17151-ZV5-000

GASKET, IN. MANIFOLD

$9.49

$

In Stock, only 2 left!

0

35

Honda 17202-ZV5-300

SEE PART DETAILS - SUP; COLLAR, DISTANCE (6.5X11X7.5)
(Superseded to 17202-ZV5-310)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 17380-ZV5-000

PLATE, MUFFLER

$

$

Not available

37

Honda 17384-ZV5-000

GASKET, MUFFLER PLATE

$28.99

$

Usually ships in 3-6 days

0

38

Honda 17881-ZV5-000

SEE PART DETAILS - SUP; PIPE, INSTALL
(Superseded to 17881-ZV5-010)

$46.99

$

Usually ships in 3-6 days

0

38

Honda 17881-ZV5-010

SEE PART DETAILS - PRI; PIPE, INSTALL

$46.99

$

Usually ships in 3-6 days

0

39

Honda 17957-ZV4-000

BUSH, LINKAGE

$2.49

$

In Stock, Qty 9

0

40

Honda 36135-PR3-004

VALVE, DASHPOT CHECK

$69.99

$

Usually ships in 3-6 days

0

41

Honda 90021-ZV5-000

BOLT, FLANGE (6X97)

$6.49

$

Usually ships in 3-6 days

0

42

Honda 90452-323-000

WASHER, SEALING (5MM)

$1.99

$

In Stock, Qty 20+

0

43

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$2.99

$

In Stock, only 1 left!

0

44

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$1.99

$

Usually ships in 3-6 days

0

45

Honda 91503-ZV5-000

COLLAR, DISTANCE (6.5X10.5X16)

$6.49

$

Usually ships in 3-6 days

0

46

Honda 93500-04016-0B

SCREW, PAN (4X16)

$

$

Not available

47

Honda 93500-05010-0B

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

48

Honda 93500-06018-4J

SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

49

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X45)

$29.99

$

Usually ships in 3-6 days

0

50

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X60)

$29.99

$

Usually ships in 3-6 days

0

51

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.5X65)

$65.99

$

Usually ships in 3-6 days

0

52

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.5X110)

$65.99

$

Usually ships in 3-6 days

0

53

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X170)

$65.99

$

Usually ships in 3-6 days

0

54

Honda 16881-ZV5-000

TUBE D, FUEL

$4.99

$

Usually ships in 3-6 days

0

55

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X160)

$26.99

$

In Stock, only 1 left!

0

56

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X200)

$26.99

$

In Stock, only 1 left!

0

57

Honda 95701-06028-02

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

58

Honda 96220-60150

ROLLER (6X15)

$1.49

$

Usually ships in 3-6 days

0

59

Honda 99101-ZV5-0880

JET, MAIN (#88)

$

$

Not available

59

Honda 99101-ZV5-0900

JET, MAIN (#90)

$

$

Not available

59

Honda 99101-ZV5-0920

JET, MAIN (#92)

$6.99

$

Usually ships in 3-6 days

0
