BF40 DK4 LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1300001 - BBDJ-9999999) IMPELLER PUMP KIT + WATER HOSE JOINT KIT Parts Diagram

Marine Engine, Made in Japan

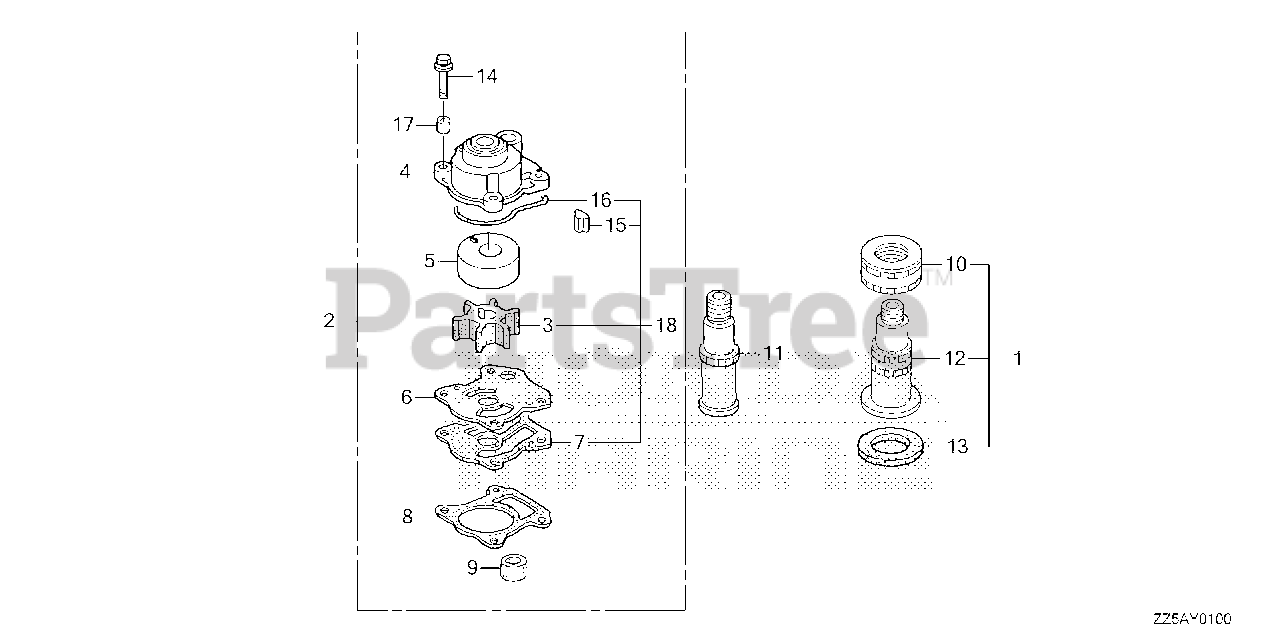

IMPELLER PUMP KIT + WATER HOSE JOINT KIT Parts Diagram

  • Title

2

Honda 06193-ZV5-020

SEE PART DETAILS - PRI; PUMP KIT, IMPELLER (INCLUDES IMPELLER HOUSING)
(Superseded to 06193-ZV5-030)

Note: (Optional).

$77.99

$

Usually ships in 3-6 days

0

3

Honda 19210-ZV5-003

IMPELLER, PUMP

Note: (Optional).

$33.99

$

In Stock, only 1 left!

0

4

Honda 19221-ZV5-000

HOUSING, IMPELLER

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

5

Honda 19223-ZV5-000

LINER, PUMP

Note: (Optional).

$18.99

$

In Stock, only 1 left!

0

6

Honda 19231-ZV5-000

COVER, IMPELLER

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

7

Honda 19233-ZV5-000

GASKET B, IMPELLER

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

8

Honda 19242-ZV5-000

GASKET, WATER PUMP

Note: (Optional).

$8.99

$

In Stock, only 1 left!

0

9

Honda 19253-ZV5-000

RING, WATER TUBE SEAL

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 19271-ZV1-810

JOINT, WATER HOSE

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

14

Honda 90103-ZY1-000

BOLT-WASHER (6X40)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

15

Honda 90752-ZV5-003

KEY, WOODRUFF

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

16

Honda 91356-ZV5-000

O-RING, WATER PUMP

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

17

Honda 91555-ZV5-000

COLLAR, IMPELLER HOUSING

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 06192-ZV5-003

PUMP KIT, IMPELLER
(Superseded to 06192-ZV5-013)

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0
