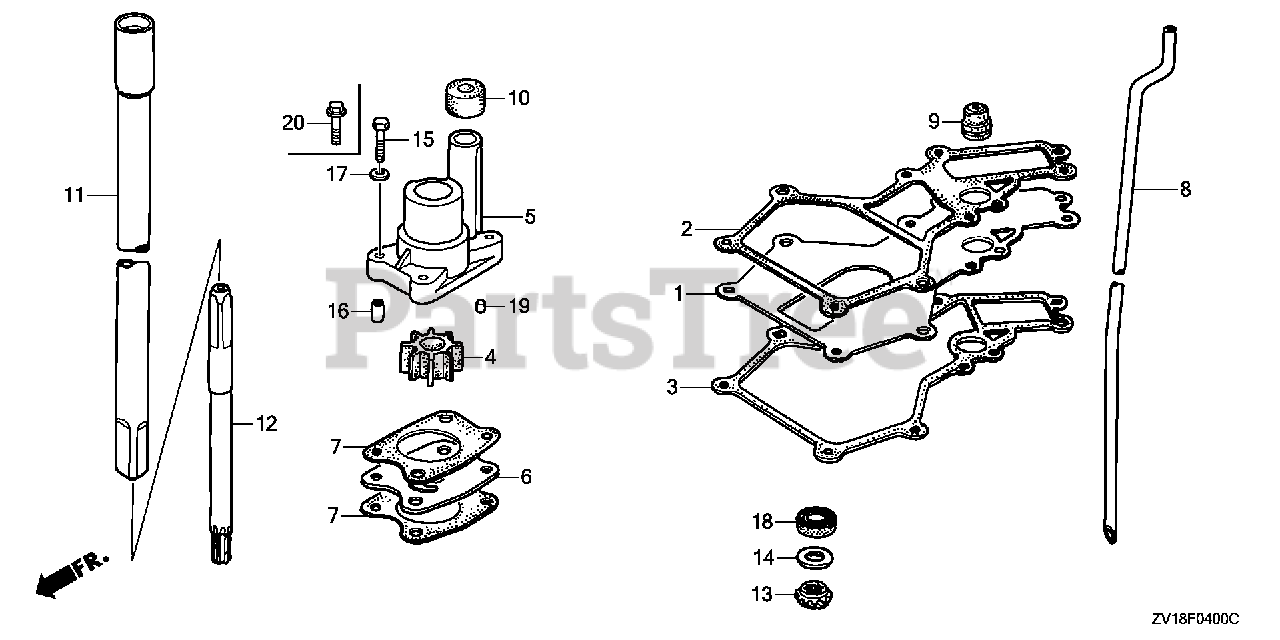

BF5 A3 LA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-1800001 - BADS-1999999) VERTICAL SHAFT Parts Diagram

Outboard Engine, Made in Japan

VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 12515-ZV1-010

PLATE, EX. CHAMBER

$62.99

$

Usually ships in 3-6 days

0

2

Honda 12516-ZV1-850

GASKET, EX. CHAMBER (UPPER)

$50.99

$

Usually ships in 3-6 days

0

3

Honda 12517-ZV1-850

GASKET, EX. CHAMBER (LOWER)

$16.99

$

Usually ships in 3-6 days

0

4

Honda 19210-881-A02

SEE PART DETAILS - PRI; IMPELLER, PUMP

$36.99

$

In Stock, only 2 left!

0

5

Honda 19220-ZV1-A00

SEE PART DETAILS - PRI; HOUSING, IMPELLER

$164.99

$

Usually ships in 3-6 days

0

6

Honda 19231-ZV1-A00

COVER, IMPELLER
(Superseded to 19231-ZVD-000)

$8.99

$

Usually ships in 3-6 days

0

7

Honda 19232-ZV1-A10

GASKET, IMPELLER

$4.99

$

In Stock, only 2 left!

0

8

Honda 19251-ZV1-701

TUBE, WATER (L)

$65.99

$

Usually ships in 3-6 days

0

9

Honda 19252-ZV1-000

GROMMET, WATER TUBE
(Superseded to 19252-ZVD-000)

$6.99

$

In Stock, only 1 left!

0

10

Honda 19253-ZV1-000

RING, WATER TUBE SEAL
(Superseded to 19253-ZVD-000)

$4.49

$

In Stock, only 1 left!

0

11

Honda 41110-ZV1-701

SHAFT, VERTICAL (L)

$233.99

$

Usually ships in 3-6 days

0

12

Honda 41121-ZVD-000

SEE PART DETAILS - PRI; SHAFT, PINION

$126.99

$

Usually ships in 3-6 days

0

12

Honda 41121-ZV1-C00

SEE PART DETAILS - SUP; SHAFT, PINION
(Superseded to 41121-ZVD-000)

$126.99

$

Usually ships in 3-6 days

0

13

Honda 41131-ZV1-000

PINION

$205.99

$

Usually ships in 3-6 days

0

14

Honda 41135-ZV1-000

WASHER A (1.00MM)

$7.49

$

Usually ships in 3-6 days

0

14

Honda 41136-ZV1-000

WASHER B (1.05MM)

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90108-881-000

BOLT, HEX. (6X28)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90112-881-000

COLLAR B, DISTANCE

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 6

0

18

Honda 91252-ZV1-003

SEAL, WATER (13MM) (ARAI)

$12.99

$

In Stock, only 2 left!

0

19

Honda 96220-40100

ROLLER (4X10)

$0.99

$

Usually ships in 3-6 days
