BF5 AK3 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2500001 - BADS-9999999) SWIVEL CASE@MOUNT FRAME Parts Diagram

Outboard Engine, Made in Japan

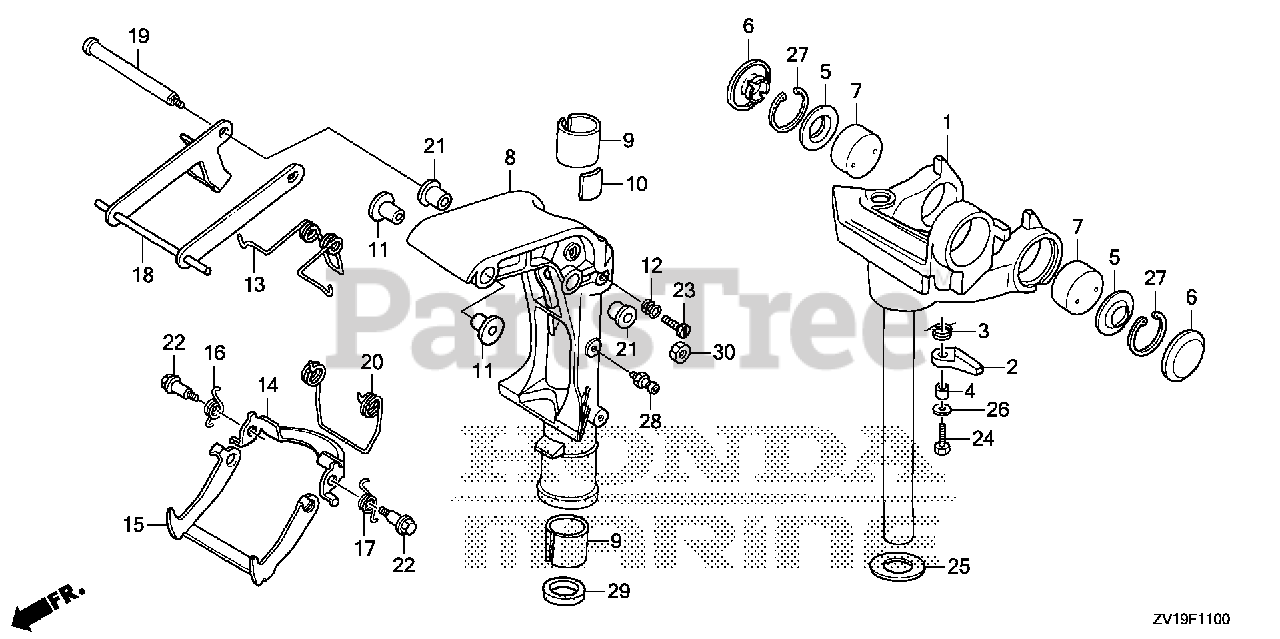

SWIVEL CASE@MOUNT FRAME Parts Diagram

  • Title

1

Honda 50100-ZV1-842ZC

FRAME, MOUNTING *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 2502908.

$254.99

$

Usually ships in 3-6 days

0

2

Honda 50105-ZV1-841ZC

STOPPER, HANDLEBAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 50106-ZV1-000

SPRING, HANDLE
(Superseded to 50106-ZVD-000)

$2.99

$

Usually ships in 3-6 days

0

4

Honda 50107-ZV1-000

COLLAR, STOPPER
(Superseded to 50107-ZVD-000)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 50112-ZV1-000

WASHER, MOUNTING
(Superseded to 50112-ZVD-000)

$6.49

$

Usually ships in 3-6 days

0

6

Honda 50113-ZV1-840

SEE PART DETAILS - PRI; CAP, MOUNTING
(Superseded to 50113-ZVD-000)

$7.99

$

Usually ships in 3-6 days

0

7

Honda 50151-ZV1-000

RUBBER, MOUNTING (UPPER)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 50201-ZV1-C01ZB

CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 2503344.

$168.99

$

Usually ships in 3-6 days

0

8

Honda 50201-ZV1-851ZC

CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use up to Frame SN 2501407.

$198.99

$

Usually ships in 3-6 days

0

8

Honda 50201-ZV1-852ZC

CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 2501408 to 2502291.

$173.99

$

Usually ships in 3-6 days

0

9

Honda 50211-ZV1-000

LINER, SWIVEL CASE
(Superseded to 50211-ZVD-000)

$8.49

$

Usually ships in 3-6 days

0

10

Honda 50212-ZV1-000

BLOCK, FRICTION
(Superseded to 50212-ZVD-000)

$7.49

$

Usually ships in 3-6 days

0

11

Honda 50214-ZV1-000

BUSH, SWIVEL CASE

$8.99

$

Usually ships in 3-6 days

0

12

Honda 50233-881-000

SPRING, FRICTION ADJUSTING

$7.49

$

Usually ships in 3-6 days

0

13

Honda 50403-ZV1-000

SPRING, HOOK RETURN
(Superseded to 50403-ZVD-000)

$6.49

$

Usually ships in 3-6 days

0

14

Honda 50511-ZV1-000

PLATE, REVERSE LOCK

$26.99

$

Usually ships in 3-6 days

0

15

Honda 50512-ZV1-000

HOOK, REVERSE LOCK

$25.99

$

Usually ships in 3-6 days

0

16

Honda 50513-ZV1-000

SPRING, R. REVERSE LOCK
(Superseded to 50513-ZVD-000)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 50514-ZV1-000

SPRING, L. REVERSE LOCK
(Superseded to 50514-ZVD-000)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 50515-ZV1-010

SEE PART DETAILS - PRI; ARM, TILT
(Superseded to 50515-ZVD-000)

$42.99

$

Usually ships in 3-6 days

0

19

Honda 50517-ZV1-000

SHAFT, TILT
(Superseded to 50517-ZVD-000)

$13.99

$

Usually ships in 3-6 days

0

20

Honda 50519-ZV1-000

SPRING, REVERSE LOCK
(Superseded to 50519-ZVD-000)

$6.49

$

Usually ships in 3-6 days

0

21

Honda 50521-ZV1-000

BUSH, TILT LEVER

$8.99

$

Usually ships in 3-6 days

0

22

Honda 90105-ZV1-000

BOLT, REVERSE LOCK

$9.49

$

Usually ships in 3-6 days

0

23

Honda 90109-ZV4-000

BOLT, SPECIAL (8X20)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 90124-ZV4-000

BOLT, HEX. (6X20)

$3.49

$

In Stock, Qty 5

0

25

Honda 90454-ZV1-000

WASHER, THRUST

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.99

$

In Stock, only 2 left!

0

27

Honda 90651-ZV1-000

CIRCLIP (INNER) (40MM)

$13.99

$

Usually ships in 3-6 days

0

28

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

In Stock, only 4 left!

0

29

Honda 91256-ZV1-003

OIL SEAL (27.8X33X5) (ARAI)

$11.99

$

Usually ships in 3-6 days

0

30

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$3.49

$

In Stock, only 1 left!

0
