BF5 DH LHNA (BADC) - Honda Outboard Engine, Made in China (SN: BADC-1000001 - BADC-9999999) STERN BRACKET Parts Diagram

Outboard Engine, Made in China

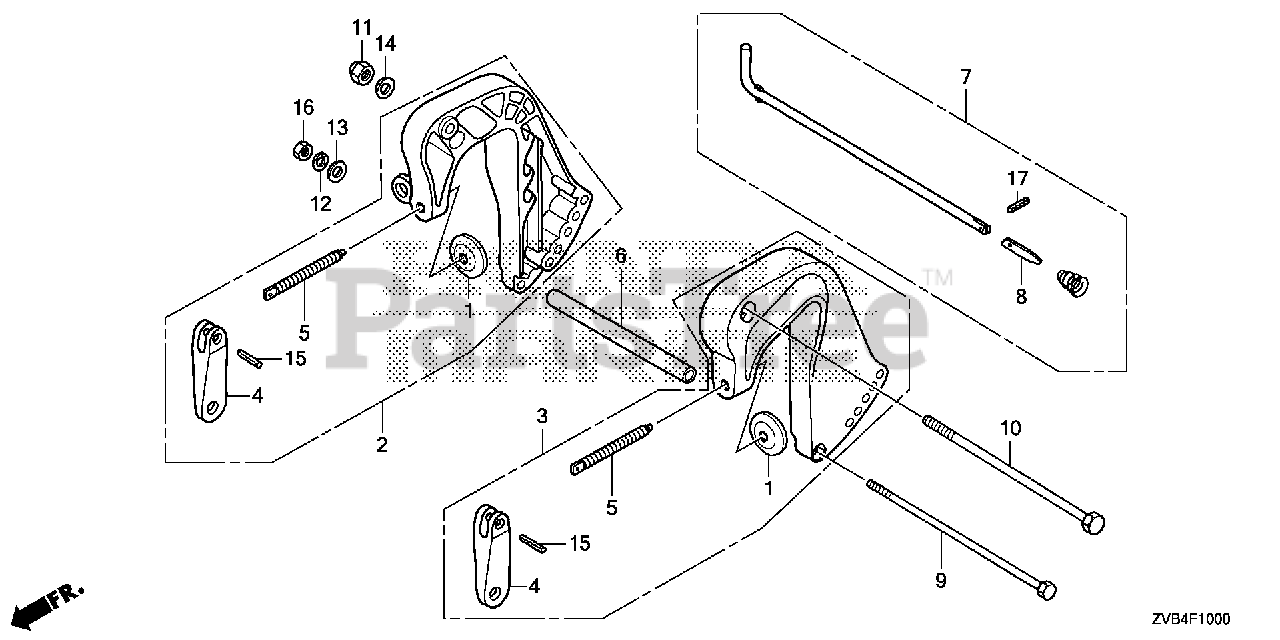

STERN BRACKET Parts Diagram

  • Title

1

Honda 50122-ZVD-300

PLATE, PUSH

$12.99

$

Usually ships in 3-6 days

0

2

Honda 50300-ZVD-000ZA

BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

$205.99

$

Usually ships in 3-6 days

0

3

Honda 50310-ZVD-000ZA

BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

$222.99

$

Usually ships in 3-6 days

0

4

Honda 50323-ZVD-300

GRIP, CLAMP

$12.99

$

Usually ships in 3-6 days

0

5

Honda 50325-ZVD-300

SCREW, CLAMP

$101.99

$

Usually ships in 3-6 days

0

6

Honda 50335-ZVD-000

COLLAR, DISTANCE (6MM)

$10.99

$

Usually ships in 3-6 days

0

7

Honda 50340-ZVD-000

ROD, ADJUSTING

$30.99

$

Usually ships in 3-6 days

0

8

Honda 50342-ZV1-310

STOPPER, ROD

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90103-ZVD-000

BOLT, HEX. (6X140)

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90107-ZVD-000

BOLT, HEX. (8X130)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

$6.99

$

In Stock, only 1 left!

0

12

Honda 90503-ZVD-000

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90506-ZVD-000

WASHER, PLAIN (6MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90514-ZVD-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90855-ZVD-300

RIVET (4X22.6)
(Superseded to 90855-ZW9-300)

Note: Use up to Frame SN 1003213.

$18.99

$

Usually ships in 3-6 days

0

15

Honda 90855-ZW9-300

RIVET (4X22.6)

Note: Use from Frame SN 1003214.

$18.99

$

Usually ships in 3-6 days

0

16

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$3.49

$

In Stock, only 1 left!

0

17

Honda 94305-20063

PIN, SPRING (2X6)

$1.99

$

Usually ships in 3-6 days

0
