BF50 A2 XRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3220001 - BAZS-3299999) POWER TRIM-TILT Parts Diagram

Marine Engine, Made in Japan

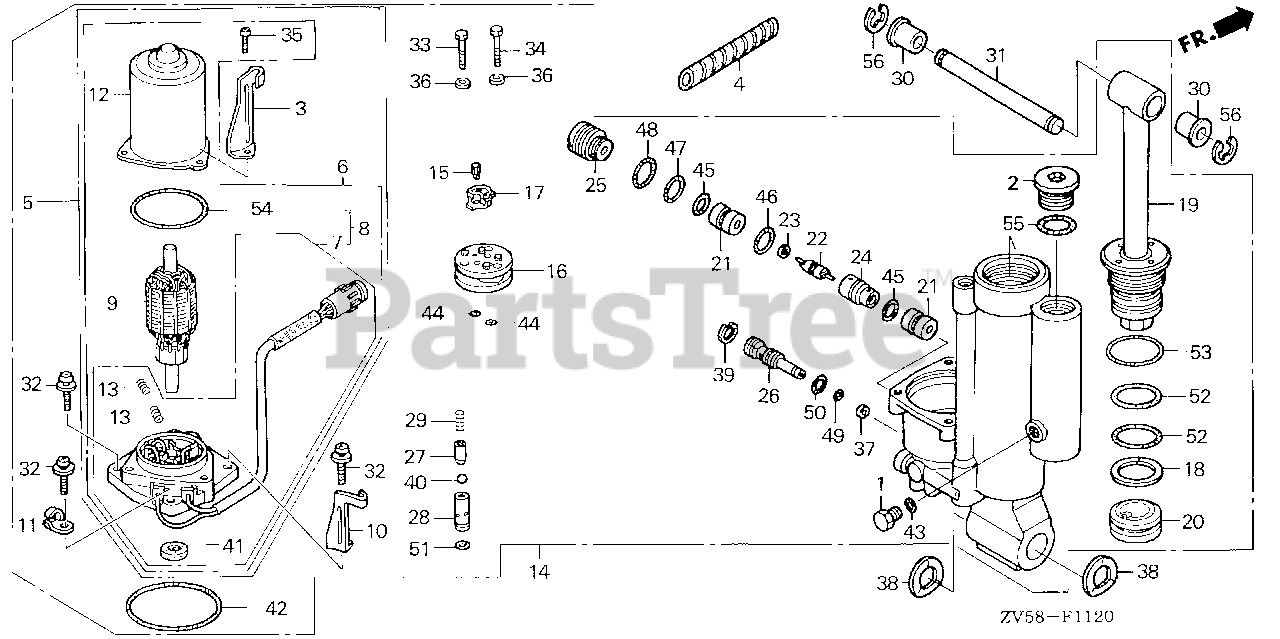

POWER TRIM-TILT Parts Diagram

  • Title

1

Honda 15626-ZV5-821

CAP, OIL HOLE

Note: Use up to Frame SN 3222648.

$

$

Currently unavailable

1

Honda 15626-ZV5-822

CAP, OIL HOLE

Note: Use from Frame SN 3222649.

$

$

Not available

2

Honda 25611-766-802

CAP, OIL HOLE

$29.99

$

Usually ships in 3-6 days

0

3

Honda 32115-ZV5-820

CLAMP, WIRE

Note: Use up to Frame SN 3222649.

$41.99

$

Usually ships in 3-6 days

0

4

Honda 36104-ZV5-821

TUBE, SPIRAL

$7.99

$

Usually ships in 3-6 days

0

5

Honda 36120-ZV5-821

MOTOR ASSY., POWER TILT

Note: Use up to Frame SN 3222648.

$457.99

$

Usually ships in 3-6 days

0

6

Honda 36120-ZV5-822

MOTOR ASSY., POWER TILT

Note: Use from Frame SN 3222649.

$

$

Not available

7

Honda 36122-ZV5-821

BRACKET ASSY.

Note: Use up to Frame SN 3222648.

$

$

Not available

8

Honda 36122-ZV5-822

BRACKET ASSY.

Note: Use from Frame SN 3222649.

$

$

Not available

9

Honda 36123-ZV5-821

ARMATURE

Note: Use up to Frame SN 3222648.

$

$

Not available

9

Honda 36123-ZV5-822

ARMATURE

Note: Use from Frame SN 3222649.

$207.99

$

Usually ships in 3-6 days

0

10

Honda 36124-ZV5-821

HOLDER, HARNESS

Note: Use from Frame SN 3222649.

$

$

Not available

11

Honda 36125-ZV5-821

CLAMP, WIRE

Note: Use from Frame SN 3222649.

$7.99

$

Usually ships in 3-6 days

0

12

Honda 36129-ZV5-821

YOKE

Note: Use up to Frame SN 3222648.

$

$

Not available

12

Honda 36129-ZV5-822

YOKE

Note: Use from Frame SN 3222649.

$190.99

$

Usually ships in 3-6 days

0

13

Honda 36136-ZV5-821

SPRING, MOTOR

$9.49

$

Usually ships in 3-6 days

0

14

Honda 56000-ZV5-822ZA

SEE PART DETAILS - SUP; TRIM-TILT ASSY., POWER *NH283* (STIN GRAY)

Note: Use up to Frame SN 3222648.

$

$

Currently unavailable

14

Honda 56000-ZV5-823ZA

SEE PART DETAILS - PRI; TRIM-TILT ASSY., POWER *NH283* (STIN GRAY)

Note: Use from Frame SN 3222649.

$

$

Not available

15

Honda 56113-ZV5-821

JOINT, DRIVE (NOT AVAILABLE)

Note: Use up to Frame SN 3222648.

$

$

Not available

15

Honda 56113-766-801

JOINT, DRIVE

Note: Use from Frame SN 3222649.

$17.99

$

Usually ships in 3-6 days

0

16

Honda 56114-ZV5-821

PUMP

$405.99

$

Usually ships in 3-6 days

0

17

Honda 56116-ZV5-822

FILTER B

$9.49

$

Usually ships in 3-6 days

0

18

Honda 56117-ZV5-821

RING, BACK-UP

$10.99

$

In Stock, only 1 left!

0

19

Honda 56120-ZV5-822

SEE PART DETAILS - PRI; ROD, PISTON

Note: Use up to Frame SN 3222648.

$

$

Not available

19

Honda 56120-ZV5-823

ROD, PISTON (NOT AVAILABLE)

Note: Use from Frame SN 3222649.

$

$

Not available

20

Honda 56130-ZV5-821

PISTON, FREE (NOT AVAILABLE)

Note: Use up to Frame SN 3222648.

$

$

Not available

20

Honda 56130-ZV5-822

PISTON, FREE

Note: Use from Frame SN 3222649.

$80.99

$

Usually ships in 3-6 days

0

22

Honda 56150-ZV5-822

SPOOL, VALVE

$35.99

$

Usually ships in 3-6 days

0

23

Honda 56151-ZV5-822

RING, BACK-UP

$7.49

$

Usually ships in 3-6 days

0

24

Honda 56161-ZV5-822

SLEEVE

$44.99

$

Usually ships in 3-6 days

0

25

Honda 56163-ZV5-822

PLUG C

Note: Use up to Frame SN 3222648.

$30.99

$

Usually ships in 3-6 days

0

25

Honda 56163-ZV5-791

PLUG C

Note: Use from Frame SN 3222649.

$

$

Not available

26

Honda 56170-ZV5-821

VALVE, MANUAL

Note: Use up to Frame SN 3222648.

$

$

Not available

26

Honda 56170-ZV5-791

VALVE, MANUAL (NOT AVAILABLE)

Note: Use from Frame SN 3222649.

$

$

Not available

27

Honda 56182-ZV5-822

GUIDE, SPRING

$

$

Not available

28

Honda 56191-ZV5-822

SEAT B, VALVE

$34.99

$

Usually ships in 3-6 days

0

29

Honda 56192-ZV5-822

SPRING B, VALVE

$3.99

$

Usually ships in 3-6 days

0

30

Honda 56512-ZV5-000

BUSH, CYLINDER (UPPER)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 56532-ZZ5-C00

SEE PART DETAILS - PRI; PIN, CYLINDER (UPPER)

$20.99

$

Usually ships in 3-6 days

0

32

Honda 90001-ZV5-821

SCREW-WASHER

Note: Use up to Frame SN 3222648.

$6.99

$

Usually ships in 3-6 days

0

32

Honda 90001-ZV5-791

SCREW-WASHER

Note: Use from Frame SN 3222649.

$4.99

$

Usually ships in 3-6 days

0

33

Honda 90114-ZV5-821

BOLT A, SOCKET

$20.99

$

Usually ships in 3-6 days

0

34

Honda 90115-ZV5-821

BOLT B, SOCKET

$21.99

$

Usually ships in 3-6 days

0

35

Honda 90134-ZV5-820

SCREW, PAN (5X16)

Note: Use up to Frame SN 3222648.

$6.99

$

Usually ships in 3-6 days

0

35

Honda 90134-ZV5-821

SCREW, PAN (5X20)

Note: Use from Frame SN 3222649.

$4.99

$

Usually ships in 3-6 days

0

36

Honda 90401-ZV5-822

WASHER, PLAIN

$1.49

$

Usually ships in 3-6 days

0

37

Honda 90402-V15-003

SEE PART DETAILS - PRI; WASHER, SEAL

$5.99

$

Usually ships in 3-6 days

0

38

Honda 90502-ZV5-000

WASHER, WAVE (26MM)

$11.99

$

Usually ships in 3-6 days

0

39

Honda 90604-ZV5-822

SEE PART DETAILS - PRI; CIRCLIP (INNER)

Note: Use up to Frame SN 3222648.

$10.99

$

Usually ships in 3-6 days

0

39

Honda 90604-ZV5-791

CIRCLIP (INNER)

Note: Use from Frame SN 3222649.

$

$

Not available

40

Honda 90921-ZV5-822

BALL, STEEL

$

$

Not available

41

Honda 91203-ZV5-821

OIL SEAL

$38.99

$

Usually ships in 3-6 days

0

42

Honda 91302-ZV5-821

O-RING (1.8X69.6)

$6.49

$

Usually ships in 3-6 days

0

43

Honda 91303-ZV5-821

O-RING (1.9X8.8)

$4.49

$

Usually ships in 3-6 days

0

44

Honda 91304-ZV5-821

O-RING (1.5X6.5)

$4.49

$

Usually ships in 3-6 days

0

46

Honda 91306-ZV5-821

O-RING (1.5X13.5)

$4.49

$

Usually ships in 3-6 days

0

47

Honda 91307-ZV5-821

O-RING (1.5X15.5)

$4.49

$

Usually ships in 3-6 days

0

48

Honda 91308-ZV5-821

O-RING (1.5X19.5)

$3.99

$

Usually ships in 3-6 days

0

49

Honda 91309-ZV5-821

O-RING (1.5X5.5)

$4.49

$

In Stock, only 1 left!

0

50

Honda 91310-ZV5-821

O-RING (2.4X9.8)

$4.49

$

In Stock, only 1 left!

0

51

Honda 91311-ZV5-822

O-RING (1.5X3.5)

$2.99

$

Usually ships in 3-6 days

0

52

Honda 91316-ZV5-821

O-RING (3.5X38.7)

Note: Use up to Frame SN 3222648.

$4.49

$

Usually ships in 3-6 days

0

52

Honda 91316-ZV5-821

O-RING (3.5X38.7)

Note: Use from Frame SN 3222649.

$4.49

$

Usually ships in 3-6 days

0

53

Honda 91317-ZV5-821

O-RING (2.0X44.5)

$4.49

$

Usually ships in 3-6 days

0

54

Honda 91318-ZV5-822

SEE PART DETAILS - PRI; O-RING

$6.99

$

Usually ships in 3-6 days

0

55

Honda 91351-766-801

O-RING (1.9X27.7)

$11.99

$

Usually ships in 3-6 days

0

56

Honda 94540-10029

E-RING (10MM)

$8.49

$

Usually ships in 3-6 days

0
