BF50 A4 XRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3400001 - BAZS-3499999) TIMING BELT Parts Diagram

Marine Engine, Made in Japan

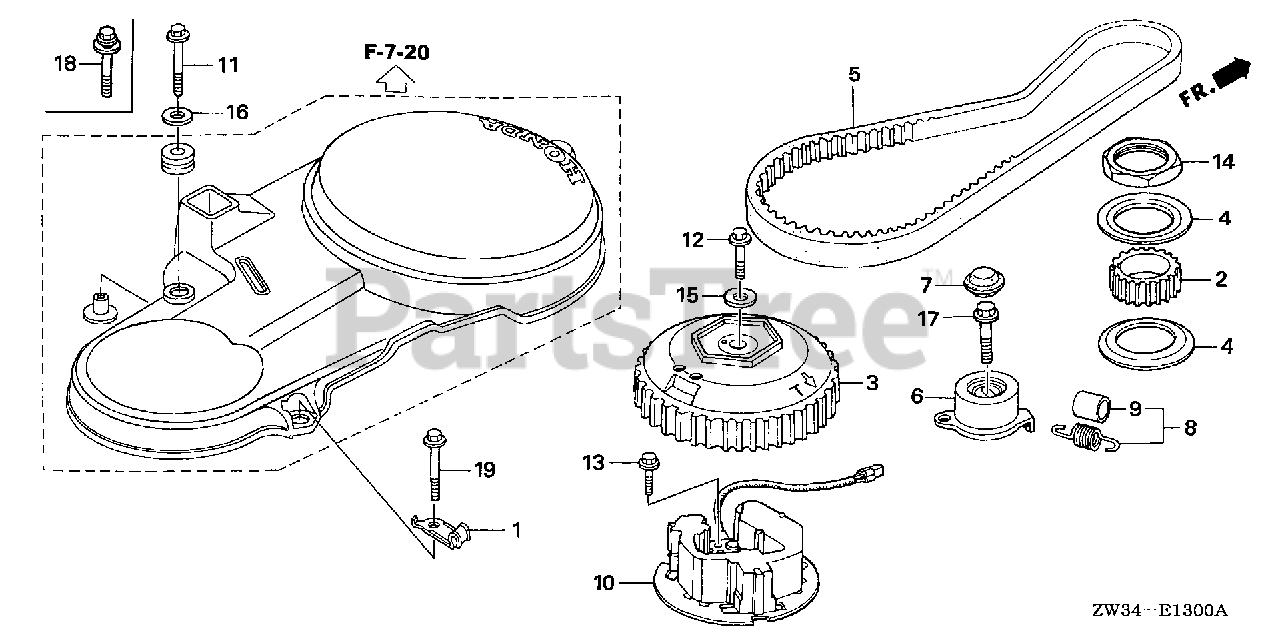

TIMING BELT Parts Diagram

  • Title

1

Honda 12328-ZV5-010

CLAMP, TUBE

$

$

Not available

2

Honda 14311-ZV5-000

PULLEY, TIMING

$

$

Not available

3

Honda 14320-ZW4-H00

PULLEY, CAMSHAFT

$

$

Not available

4

Honda 14323-ZV5-000

PLATE, TIMING BELT GUIDE

$16.99

$

Usually ships in 3-6 days

0

5

Honda 14400-ZV5-014

BELT, TIMING

$149.99

$

Usually ships in 3-6 days

0

6

Honda 14510-ZV5-003

TENSIONER, TIMING BELT
(Superseded to 14510-ZV5-013)

$112.99

$

Usually ships in 3-6 days

0

7

Honda 14515-ZV5-000

CAP, TIMING BELT TENSIONER

$9.49

$

Usually ships in 3-6 days

0

8

Honda 14520-ZV5-020

SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTING

$7.49

$

Usually ships in 3-6 days

0

9

Honda 14522-ZV5-000

BOOT, SPRING

$3.99

$

Usually ships in 3-6 days

0

10

Honda 30400-ZV5-003

COIL ASSY., PULSER

$

$

Not available

11

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90031-ZV5-010

BOLT, FLANGE (10X32)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90050-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90050-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90202-ZV5-000

NUT, LOCK (48MM)

$34.99

$

Usually ships in 3-6 days

0

15

Honda 90435-ZV5-010

WASHER (10X28X5)
(Superseded to 90435-ZZ5-M00)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 95701-10038-08

BOLT, FLANGE (10X38)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0
