BF50 AK0 SRJA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3700001 - BAZS-3799999) CARBURETOR Parts Diagram

Marine Engine, Made in Japan

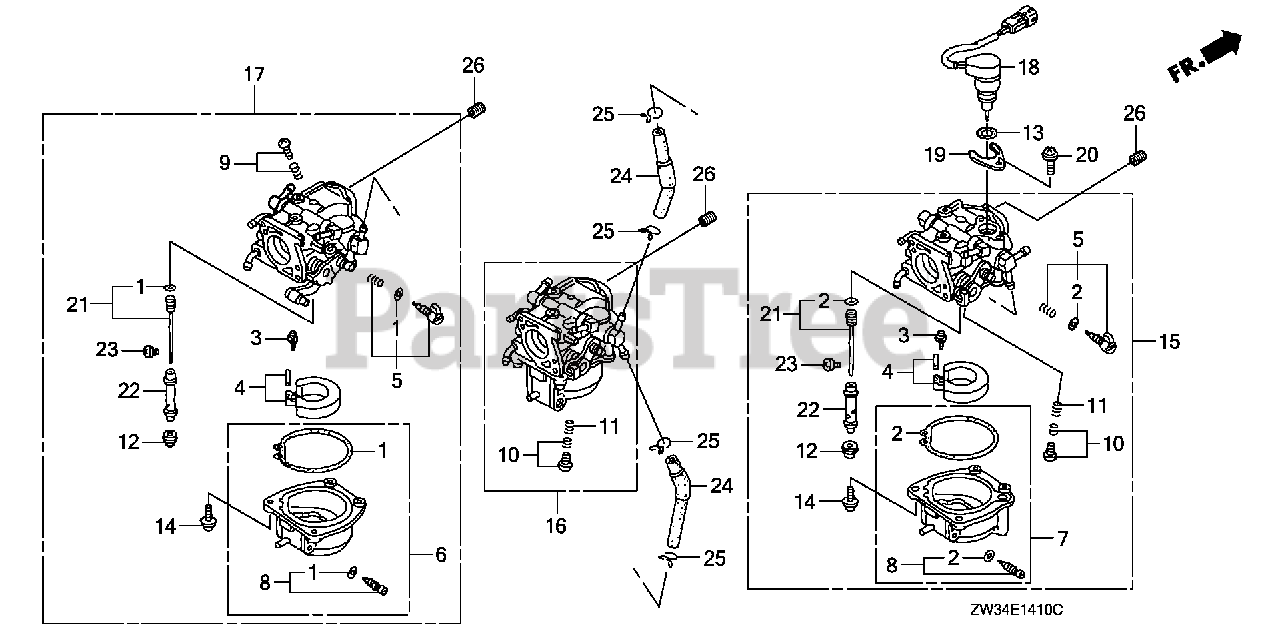

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZV4-005

GASKET SET

$18.99

$

In Stock, only 2 left!

0

2

Honda 16010-ZW4-H01

GASKET SET

$16.99

$

Usually ships in 3-6 days

0

3

Honda 16011-ZV4-005

VALVE SET, FLOAT

$36.99

$

Usually ships in 3-6 days

0

4

Honda 16013-ZW4-H01

SEE PART DETAILS - PRI; FLOAT SET

$36.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZW4-D21

SCREW SET (CARBURETOR NO.)

Note: Use up to Engine SN BG31C C.

$9.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZW1-L41

SCREW SET (CARBURETOR NO.)

Note: Use from Engine SN BG31C D.

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16023-ZV3-000

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT

$79.99

$

Usually ships in 3-6 days

0

7

Honda 16023-ZW4-H01

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use up to Engine SN BG31C B.

$

$

Not available

7

Honda 16023-ZW4-F01

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BG31C C.

$

$

Not available

8

Honda 16024-ZY3-000

SEE PART DETAILS - PRI; SCREW SET, DRAIN (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZV3-000

SCREW SET

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16029-ZV3-000

SCREW SET

$11.99

$

Usually ships in 3-6 days

0

11

Honda 16052-KG4-003

SPRING, COMPRESSION COIL

$7.49

$

Usually ships in 3-6 days

0

12

Honda 16071-ZV4-005

SCREW, PLUG

$7.99

$

Usually ships in 3-6 days

0

13

Honda 16077-KG8-901

O-RING, BYSTARTER

$3.49

$

Usually ships in 3-6 days

0

14

Honda 16081-ZV4-650

SCREW-WASHER (Honda Code 3507852).

$3.99

$

Usually ships in 3-6 days

0

15

Honda 16101-ZW4-F03

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1) (CARBURETOR NO.)

Note: Use up to Engine SN BG31C B.

$

$

Not available

15

Honda 16101-ZW4-F03

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1) (CARBURETOR NO.)

Note: Use from Engine SN BG31C C to BG31C C.

$

$

Not available

15

Honda 16101-ZW4-F04

CARBURETOR ASSY. (#1) (CARBURETOR NO.)

Note: Use from Engine SN BG31C D to BG31C D.

$

$

Not available

15

Honda 16101-ZW4-F05

CARBURETOR ASSY. (#1) (CARBURETOR NO.)

Note: Use from Engine SN BG31C E.

$

$

Not available

16

Honda 16102-ZW4-F02

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#2) (CARBURETOR NO.)

Note: Use up to Engine SN BG31C C.

$

$

Not available

16

Honda 16102-ZW4-F03

CARBURETOR ASSY. (#2) (CARBURETOR NO.)

Note: Use from Engine SN BG31C D to BG31C D.

$

$

Not available

16

Honda 16102-ZW4-F04

CARBURETOR ASSY. (#2) (CARBURETOR NO.)

Note: Use from Engine SN BG31C E.

$

$

Not available

17

Honda 16103-ZW4-F02

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#3) (CARBURETOR NO.)

Note: Use up to Engine SN BG31C C.

$

$

Not available

17

Honda 16103-ZW4-F03

CARBURETOR ASSY. (#3) (CARBURETOR NO.)

Note: Use from Engine SN BG31C D to BG31C D.

$

$

Not available

17

Honda 16103-ZW4-F04

CARBURETOR ASSY. (#3) (CARBURETOR NO.)

Note: Use from Engine SN BG31C E.

$

$

Not available

18

Honda 16130-ZW4-H01

BYSTARTER ASSY., AUTO (CARBURETOR NO.)

Note: Use up to Engine SN BG31C B.

$64.99

$

Usually ships in 3-6 days

0

18

Honda 16130-ZW4-F01

BYSTARTER ASSY., AUTO (CARBURETOR NO.)

Note: Use from Engine SN BG31C C.

$

$

Not available

19

Honda 16131-ZW9-801

PLATE, SETTING

$3.99

$

Usually ships in 3-6 days

0

20

Honda 16132-ZW9-801

SCREW-WASHER

$1.99

$

Usually ships in 3-6 days

0

21

Honda 16150-ZW4-H02

SEE PART DETAILS - PRI; JET SET (#45) (CARBURETOR NO.)

Note: Use up to Engine SN BG31C D.

$32.99

$

Usually ships in 3-6 days

0

21

Honda 16150-ZW4-G01

JET SET (#45) (CARBURETOR NO.)

Note: Use from Engine SN BG31C E.

$28.99

$

Usually ships in 3-6 days

0

22

Honda 16166-ZW4-000

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BG31C C.

$30.99

$

Usually ships in 3-6 days

0

22

Honda 16166-ZW4-G02

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BG31C E.

$

$

Not available

22

Honda 16166-ZW4-H01

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BG31C D to BG31C D.

$

$

Not available

23

Honda 99101-ZV5-1300

SEE PART DETAILS - PRI; JET, MAIN (#130)

Note: (Optional).Use up to Engine SN BG31C D.

$6.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZV5-1320

SEE PART DETAILS - PRI; JET, MAIN (#132)

Note: (Optional).Use up to Engine SN BG31C D.

$8.49

$

Usually ships in 3-6 days

0

23

Honda 99102-ZW1-1350

JET, MAIN (#135) (CARBURETOR NO.)

Note: Use up to Engine SN BG31C D.

$

$

Not available

23

Honda 99101-ZV5-1200

SEE PART DETAILS - PRI; JET, MAIN (#120) (CARBURETOR NO.)

Note: (Optional).Use from Engine SN BG31C E.

$7.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZV5-1220

SEE PART DETAILS - PRI; JET, MAIN (#122)

Note: (Optional).Use from Engine SN BG31C E.

$8.49

$

Usually ships in 3-6 days

0

23

Honda 99101-ZV5-1250

SEE PART DETAILS - PRI; JET, MAIN (#125)

Note: Use from Engine SN BG31C E.

$6.99

$

Usually ships in 3-6 days

0

24

Honda 16133-ZW4-H01

TUBE (CARBURETOR NO.)

$5.99

$

Usually ships in 3-6 days

0

25

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 16183-ZW4-H01

SCREW, PLUG (CARBURETOR NO.)

Note: Use from Engine SN BG31C E.

$6.49

$

Usually ships in 3-6 days

0
