BF50 AX LRA (BAZL) - Honda Marine Engine, Made in Japan (SN: BAZL-3000001 - BAZL-9999999) POWER TRIM-TILT Parts Diagram

Marine Engine, Made in Japan

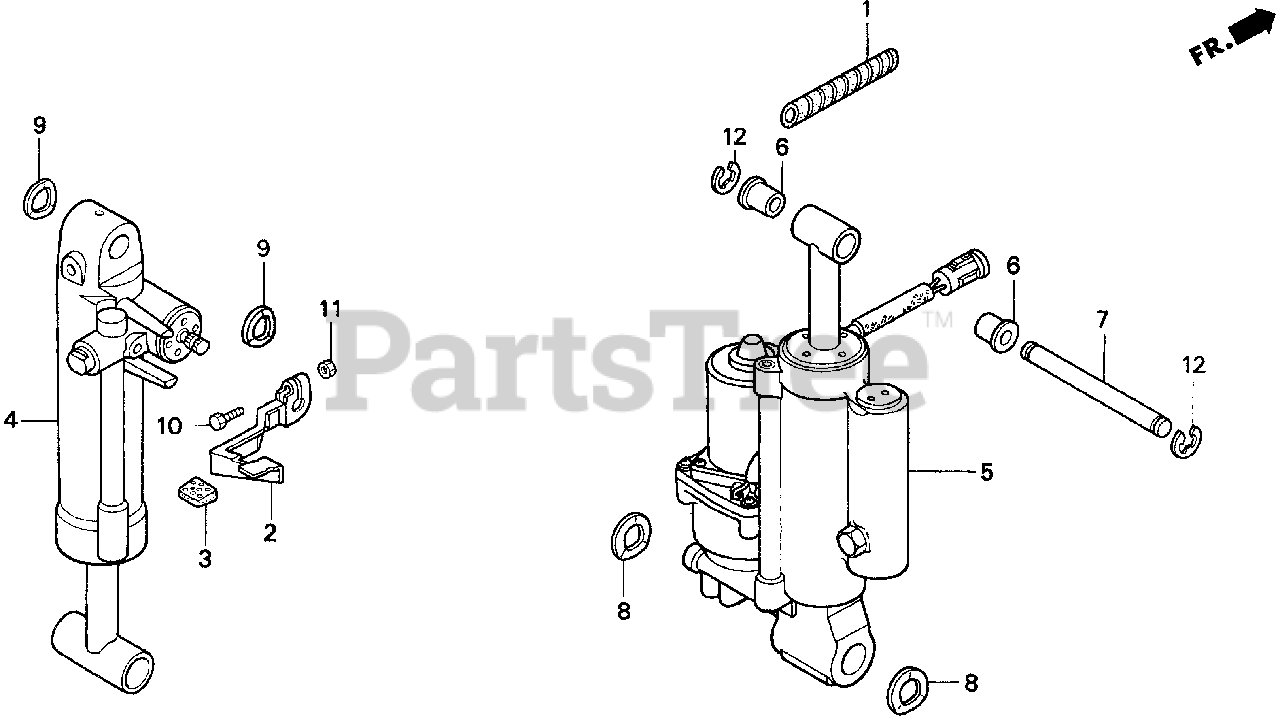

POWER TRIM-TILT Parts Diagram

  • Title
2

Honda 50517-ZV5-000

LEVER, TILT

$57.99

$

Usually ships in 3-6 days

0

3

Honda 50543-ZV5-000

GRIP, LEVER

$11.99

$

Usually ships in 3-6 days

0

4

Honda 51601-ZV5-003ZA

SEE PART DETAILS - SUP; SHOCK ABSORBER ASSY. *NH283* (STIN GRAY)
(Superseded to 51601-ZV5-013ZA)

Note: Use up to Frame SN 3009282.

$

$

Not available

4

Honda 51601-ZV5-013ZA

SEE PART DETAILS - PRI; SHOCK ABSORBER ASSY. *NH283* (STIN GRAY)

$

$

Not available

6

Honda 56512-ZV5-000

BUSH, CYLINDER (UPPER)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 56532-ZV5-000

PIN, CYLINDER (UPPER)
(Superseded to 56532-ZZ5-C00)

$22.99

$

Usually ships in 3-6 days

0

9

Honda 90505-ZV5-000

WASHER, WAVE (24MM)

$

$

Not available

10

Honda 92101-06025-4J

BOLT, HEX. (6X25)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94001-06490

SEE PART DETAILS - SUP; NUT, HEX. (6MM)

$

$

Currently unavailable

11

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

12

Honda 94540-10029

E-RING (10MM)

$8.99

$

Usually ships in 3-6 days

0
