BF50 AX LRTA (BAZL) - Honda Marine Engine, Made in Japan (SN: BAZL-3000001 - BAZL-9999999) FLYWHEEL Parts Diagram

Marine Engine, Made in Japan

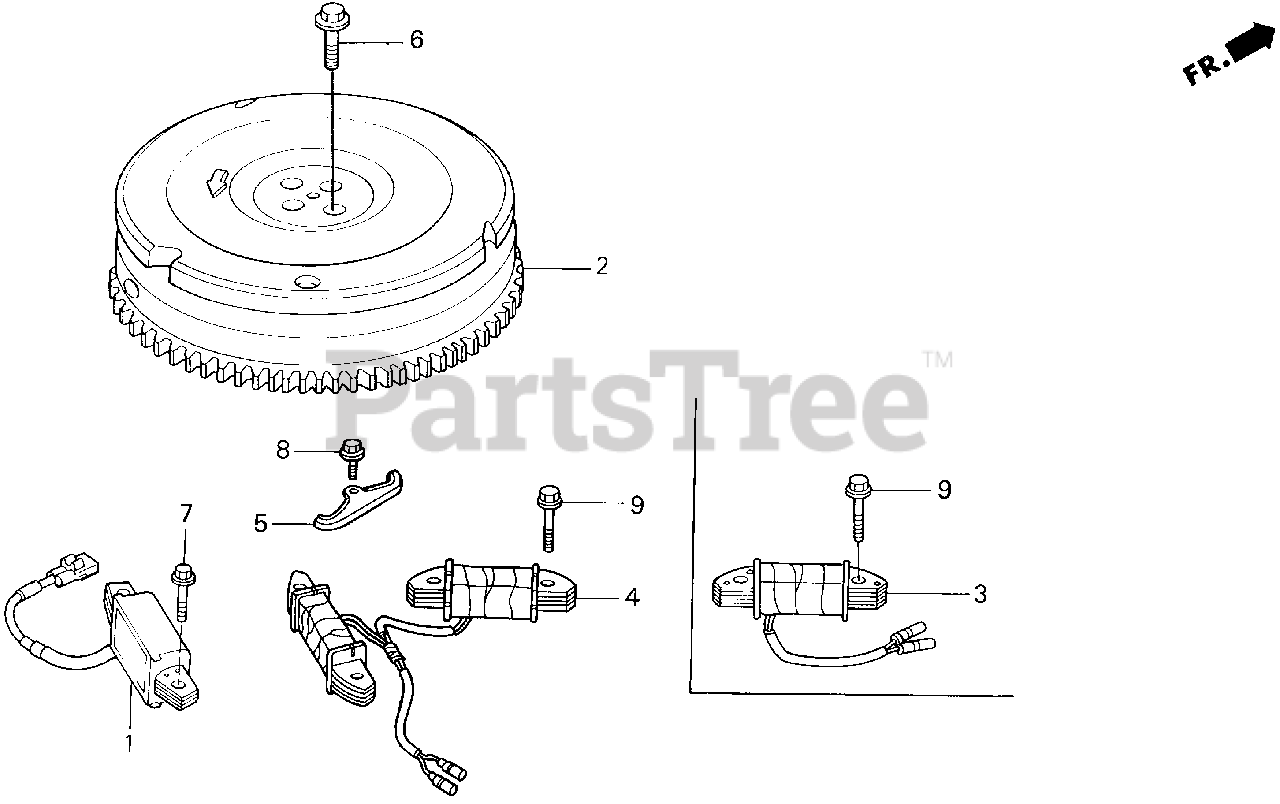

FLYWHEEL Parts Diagram

  • Title
1

Honda 30590-ZV5-003

COIL ASSY., EXCITER

$124.99

$

Usually ships in 3-6 days

0

2

Honda 31100-ZV5-680ZA

SEE PART DETAILS - SUP; FLYWHEEL *TBLACK* (BLACK)

$

$

Currently unavailable

4

Honda 31630-ZV5-911

SEE PART DETAILS - SUP; COIL ASSY., CHARGE (12V-10A)

$

$

Currently unavailable

4

Honda 31630-ZV5-912

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (12V/10A)

$184.99

$

Usually ships in 3-6 days

0

5

Honda 32117-ZV5-000

HOLDER, WIRE (B)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 90017-ZV5-000

SEE PART DETAILS - SUP; BOLT, FLANGE (10X25)

$

$

Currently unavailable

6

Honda 90017-ZV5-010

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25)

$

$

Not available

7

Honda 90121-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25)
(Superseded to 90121-ZV0-010)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90122-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90123-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X32)
(Superseded to 90123-ZV0-010)

$1.99

$

Usually ships in 3-6 days

0
