BF50 D XRTA (BBEJ) - Honda Marine Engine, Made in Japan (SN: BBEJ-1000001 - BBEJ-9999999) IGNITION COIL Parts Diagram

Marine Engine, Made in Japan

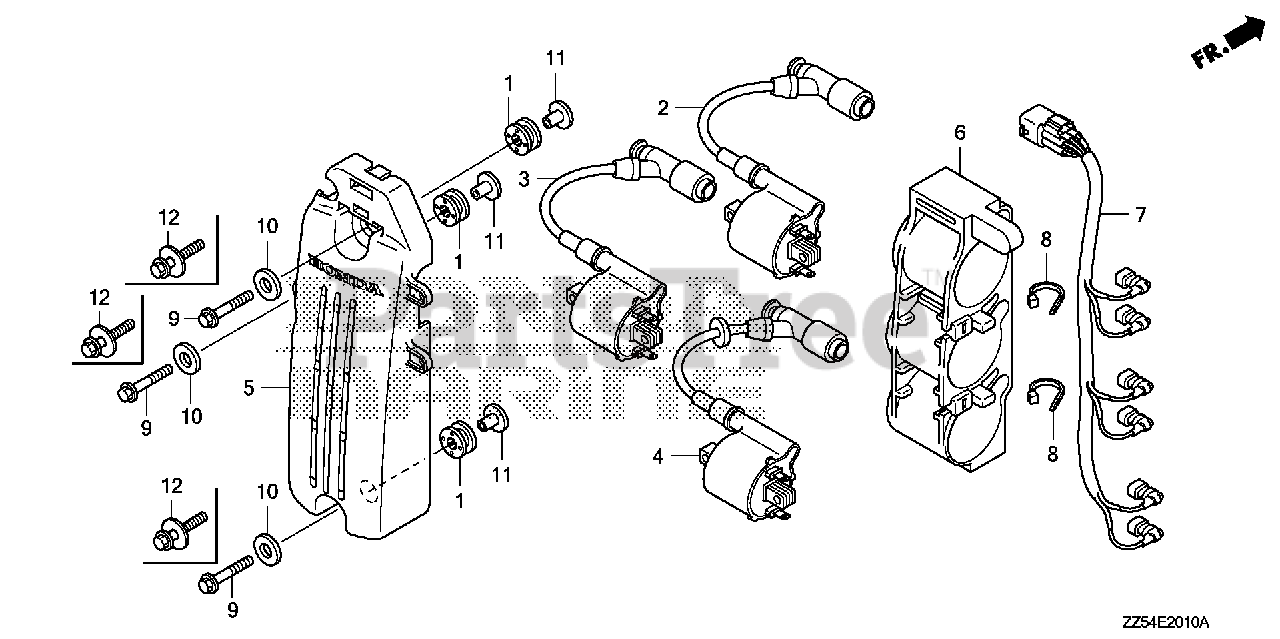

IGNITION COIL Parts Diagram

  • Title

1

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$6.49

$

Usually ships in 3-6 days

0

2

Honda 30511-ZZ5-013

COIL, IGNITION (1)

$72.99

$

Usually ships in 3-6 days

0

3

Honda 30512-ZZ5-013

COIL, IGNITION (2)

$72.99

$

Usually ships in 3-6 days

0

4

Honda 30513-ZZ5-013

COIL, IGNITION (3)

$67.99

$

Usually ships in 3-6 days

0

5

Honda 30515-ZZ5-000

CASE, IGNITION COIL

$70.99

$

Usually ships in 3-6 days

0

6

Honda 30516-ZZ5-000

SUSPENSION, IGNITION COIL

$43.99

$

Usually ships in 3-6 days

0

7

Honda 30517-ZZ5-010

SEE PART DETAILS - PRI; WIRE ASSY., IGNITION COIL

$92.99

$

Usually ships in 3-6 days

0

8

Honda 32161-KM3-003

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

Note: Use up to Engine SN 1007230.

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

Note: Use up to Engine SN 1007230.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 91501-ZZ5-000

COLLAR, MOUNTING (6MM)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

Note: Use from Engine SN 1007231.

$3.99

$

Usually ships in 3-6 days

0
