BF50 D XRTA (BBEJ) - Honda Marine Engine, Made in Japan (SN: BBEJ-1000001 - BBEJ-9999999) INLET MANIFOLD + INJECTOR Parts Diagram

Marine Engine, Made in Japan

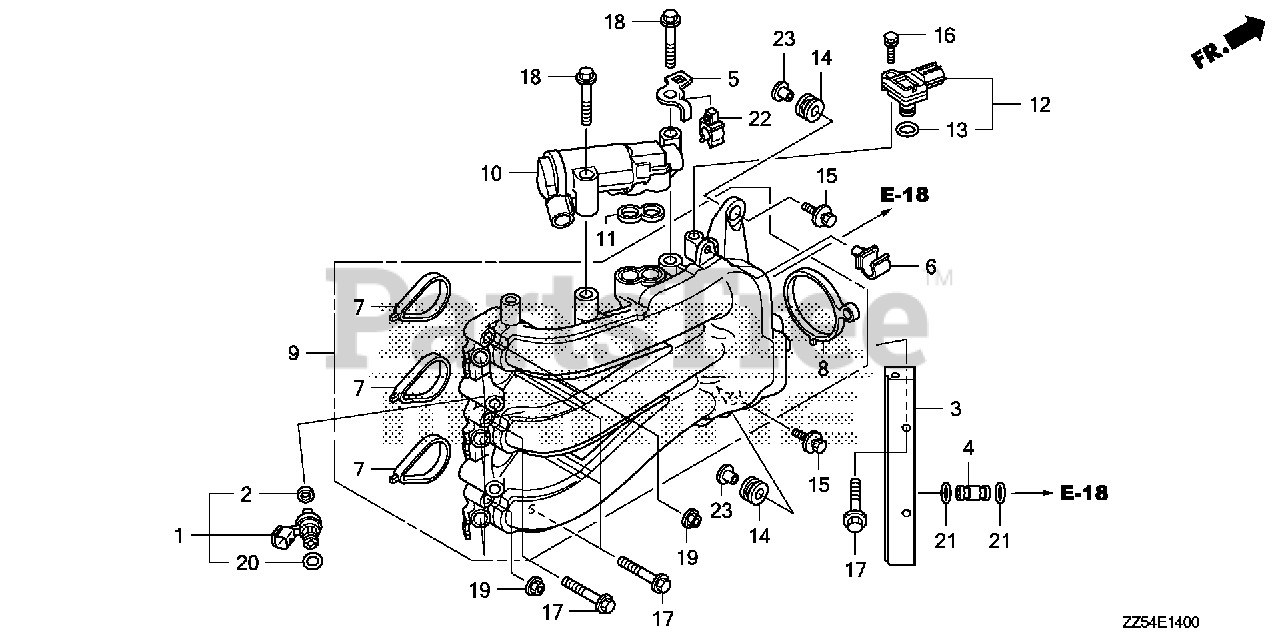

INLET MANIFOLD + INJECTOR Parts Diagram

  • Title

1

Honda 16450-ZZ5-003

INJECTOR ASSY., FUEL

$125.99

$

Usually ships in 3-6 days

0

2

Honda 16472-KPC-D50

RING, SEAL

$3.49

$

In Stock, only 2 left!

0

3

Honda 16620-ZZ5-010

LINE, FUEL

$182.99

$

Usually ships in 3-6 days

0

4

Honda 16752-ZY3-A00

JOINT, FUEL PIPE

$11.99

$

Usually ships in 3-6 days

0

5

Honda 16817-ZZ5-000

BRACKET B, TUBE CLAMP

$

$

Not available

6

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$4.49

$

Usually ships in 3-6 days

0

7

Honda 17105-ZZ5-003

GASKET, IN. MANIFOLD

$93.99

$

Usually ships in 3-6 days

0

8

Honda 17107-ZZ5-003

GASKET, THROTTLE BODY

$19.99

$

In Stock, only 1 left!

0

9

Honda 17110-ZZ5-003

MANIFOLD, INLET

$1034.99

$

Usually ships in 3-6 days

0

10

Honda 36550-ZZ5-003

VALVE ASSY., ELECTRONIC AIR CONTROL

$280.99

$

Usually ships in 3-6 days

0

11

Honda 36551-ZY6-003

GASKET, ELECTRONIC AIR CONTROL VALVE

$16.99

$

Usually ships in 3-6 days

0

12

Honda 37830-PNC-003

SENSOR ASSY., MAP

Note: Use up to Engine SN 1018107.

$198.99

$

Usually ships in 3-6 days

0

12

Honda 37830-RNA-A01

SENSOR ASSY., MAP

Note: Use from Engine SN 1018108.

$134.99

$

Usually ships in 3-6 days

0

13

Honda 37835-PGK-A01

O-RING

$13.99

$

Usually ships in 3-6 days

0

14

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$4.49

$

In Stock, only 2 left!

0

15

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90029-ZY3-000

BOLT-WASHER (5X18)

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90126-ZW4-000

BOLT, FLANGE (8X45)
(Superseded to 90026-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90301-ZW2-F00

NUT, FLANGE (6MM)
(Superseded to 90201-ZZ5-M01)

$1.99

$

In Stock, only 1 left!

0

20

Honda 91301-KPH-701

O-RING (7.3X2.2)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 91301-MJ0-003

O-RING (7.8X1.9) (ARAI)

$3.49

$

In Stock, only 2 left!

0

22

Honda 91531-SZ5-003

CLIP, TUBE (3.5)

$6.49

$

Usually ships in 3-6 days

0

23

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$4.49

$

Usually ships in 3-6 days

0
