BF50 DK2 XRTA (BBEJ) - Honda Marine Engine, Made in Japan (SN: BBEJ-1100001 - BBEJ-9999999) ELECTRONIC CONTROL UNIT Parts Diagram

Marine Engine, Made in Japan

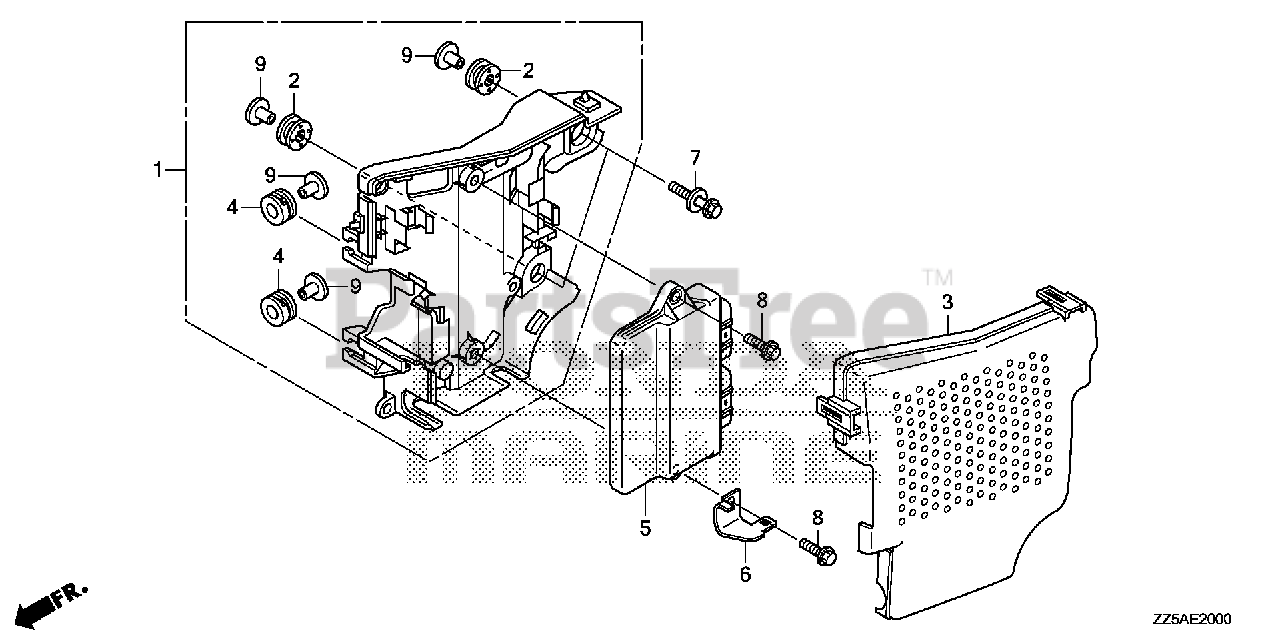

ELECTRONIC CONTROL UNIT Parts Diagram

  • Title

1

Honda 30410-ZZ5-000

CASE ASSY., ELECTRONIC PARTS
(Superseded to 30410-ZZ5-010)

$102.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$6.99

$

Usually ships in 3-6 days

0

3

Honda 30421-ZZ5-010

COVER, ELECTRONIC PARTS

$50.99

$

Usually ships in 3-6 days

0

4

Honda 30598-ZV5-000

GROMMET, MODULE IGNITION CONTROL CASE (CDI)(B)

$5.99

$

Usually ships in 3-6 days

0

5

Honda 34750-ZZ5-033

CONTROL UNIT, ELECTRONIC
(Superseded to 34750-ZZ5-053)

Note: Use up to Engine SN 1019989.

$1871.99

$

Usually ships in 3-6 days

0

5

Honda 34750-ZZ5-053

CONTROL UNIT, ELECTRONIC

Note: Use from Engine SN 1019990.

$1871.99

$

Usually ships in 3-6 days

0

6

Honda 34754-ZZ5-000

BRACKET, ELECTRONIC CONTROL UNIT

$11.99

$

Usually ships in 3-6 days

0

7

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)
(Superseded to 90003-ZZ5-M01)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$4.49

$

Usually ships in 3-6 days

0
