BF60 A XRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-1000001 - BBFJ-9999999) ENGINE UNDER COVER Parts Diagram

Marine Engine, Made in Japan

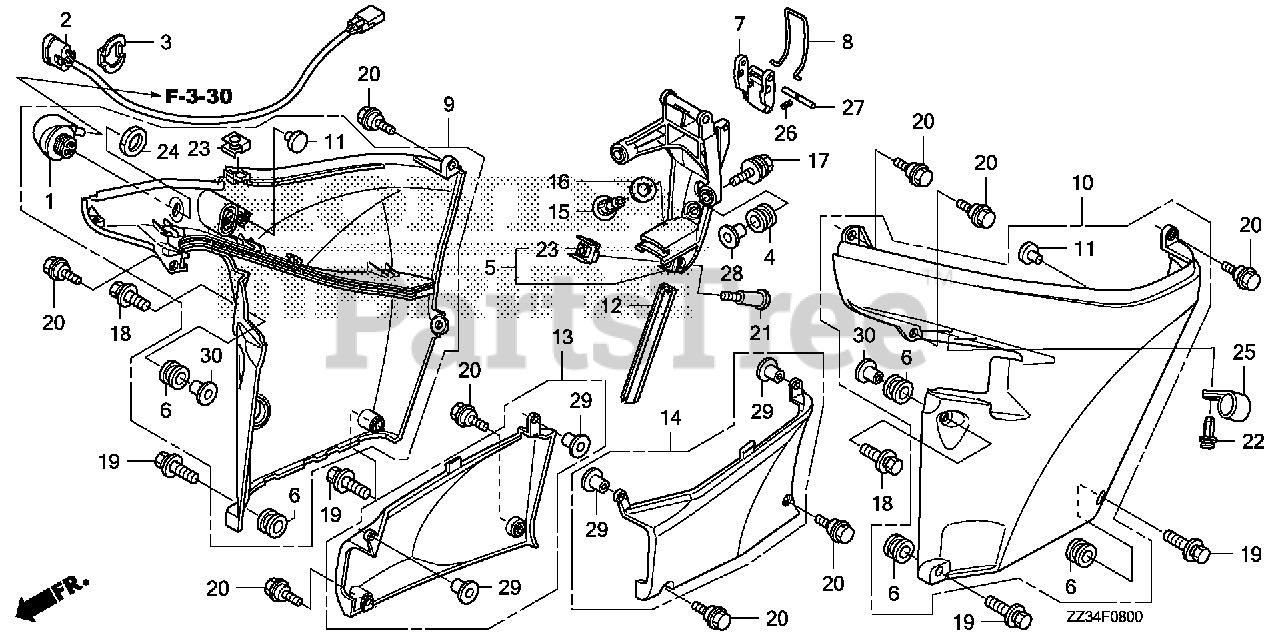

ENGINE UNDER COVER Parts Diagram

  • Title

1

Honda 19289-ZY6-000

CAP, WATER JOINT

$34.99

$

Usually ships in 3-6 days

0

2

Honda 35640-ZZ3-003

SWITCH ASSY., POWER TILT

$63.99

$

Usually ships in 3-6 days

0

3

Honda 35645-ZY9-000

STAY, POWER TILT SWITCH

$9.99

$

Usually ships in 3-6 days

0

4

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 40155-ZZ3-000

BRACKET, RR. COVER (LOWER)

$64.99

$

Usually ships in 3-6 days

0

6

Honda 61102-MB6-631

RUBBER, FENDER MOUNTING

$2.99

$

Usually ships in 3-6 days

0

7

Honda 63232-ZY9-000

LEVER, FASTENER

$15.99

$

Usually ships in 3-6 days

0

8

Honda 63237-ZY9-000

WIRE, FASTENER

$9.99

$

Usually ships in 3-6 days

0

9

Honda 63710-ZZ3-000ZB

COVER ASSY., R. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$341.99

$

Usually ships in 3-6 days

0

10

Honda 63715-ZZ3-000ZB

COVER ASSY., L. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$341.99

$

Usually ships in 3-6 days

0

11

Honda 63718-ZW9-000

RUBBER, CUSHION

$2.99

$

Usually ships in 3-6 days

0

12

Honda 63724-ZZ3-000

SEAL, RR. COVER (LOWER)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 63731-ZZ3-000ZA

COVER, R. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$115.99

$

Usually ships in 3-6 days

0

14

Honda 63736-ZZ3-000ZA

COVER, L. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$115.99

$

Usually ships in 3-6 days

0

15

Honda 82873-ZY9-000

GROMMET, WATER CHECK

$5.49

$

Usually ships in 3-6 days

0

16

Honda 82874-ZY9-000

SEAL, WATER CHECK GROMMET

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90103-ZY9-000

BOLT-WASHER (6X22)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90106-ZZ3-000

BOLT-WASHER (6X27)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90111-ZY3-000

BOLT, SPECIAL (6X17)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90113-ZY9-003

BOLT, RR. BRACKET

$11.99

$

Usually ships in 3-6 days

0

22

Honda 90127-ZV5-003

SCREW, RIVET (5X10)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90301-ZY6-000

NUT, CLIP

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90302-921-000

NUT, HEX. (16MM)

$5.49

$

In Stock, only 1 left!

0

25

Honda 90602-SB0-003

CLIP (10.7MM)

$5.49

$

Usually ships in 3-6 days

0

26

Honda 90751-ZY9-000

PIN, SPRING (2.0X12)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90755-ZY9-000

PIN (5X59)

$14.99

$

Usually ships in 3-6 days

0

28

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 91553-ZY6-000

COLLAR, DISTANCE (6.5X9X11.5)

$5.49

$

Usually ships in 3-6 days

0

30

Honda 91554-ZY9-000

COLLAR, DISTANCE (6.2X7.5)

$3.99

$

Usually ships in 3-6 days

0
