BF60 AK1 XRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-1100001 - BBFJ-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

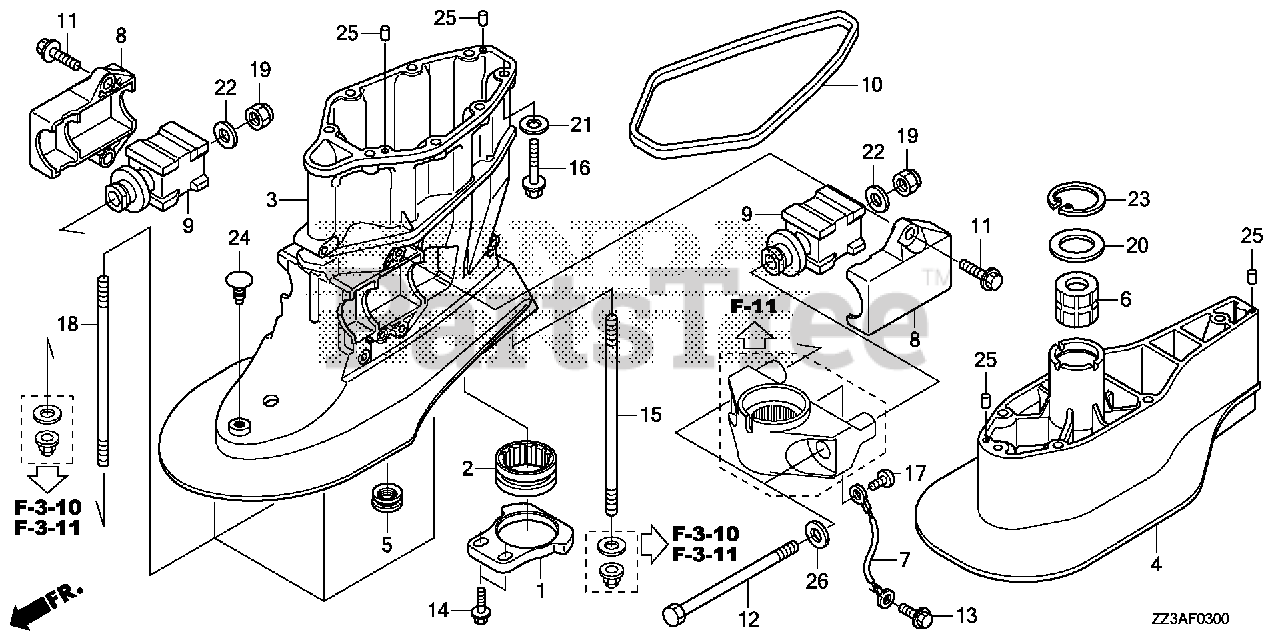

EXTENSION CASE Parts Diagram

  • Title

1

Honda 18334-ZZ3-000

HOLDER, EX. PIPE GROMMET

$50.99

$

Usually ships in 3-6 days

0

2

Honda 18337-ZZ3-000

GROMMET, EX. PIPE

$15.99

$

Usually ships in 3-6 days

0

3

Honda 40201-ZZ3-000ZC

CASE, EXTENSION *NHB14M* (AQUA MARINE SILVER METALLIC)

$1025.99

$

Usually ships in 3-6 days

0

4

Honda 40202-ZY9-610ZC

SEPARATOR, EXTENSION *NHB14M* (XL) (AQUA MARINE SILVER METALLIC)
(Superseded to 40202-ZY9-H50ZA)

Note: Use up to Frame SN 8100774.

$1931.99

$

Usually ships in 3-6 days

0

4

Honda 40202-ZY9-H50ZA

SEPARATOR, EXTENSION *NHB14M* (XL) (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 8100775.

$1931.99

$

Usually ships in 3-6 days

0

5

Honda 40204-ZV5-000

GROMMET, EXTENSION CASE

$4.99

$

Usually ships in 3-6 days

0

6

Honda 40210-ZZ3-650

BUSH, VERTICAL SHAFT

$196.99

$

Usually ships in 3-6 days

0

7

Honda 40219-ZY3-013

SEE PART DETAILS - PRI; WIRE, LEAD (1.5X116MM)
(Superseded to 40219-ZY3-023)

$13.99

$

Usually ships in 3-6 days

0

8

Honda 50111-ZZ3-000

HOUSING, MOUNTING (LOWER)

$72.99

$

Usually ships in 3-6 days

0

9

Honda 50155-ZZ3-000

MOUNT, RUBBER (LOWER)

$141.99

$

Usually ships in 3-6 days

0

10

Honda 63719-ZZ3-000

SEAL B, COVER (LOWER)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90101-HW1-671

BOLT, FLANGE (8X25)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90102-ZY9-000

BOLT, HEX. (12X186)

$28.99

$

Usually ships in 3-6 days

0

13

Honda 90103-ZW9-010

BOLT, FLANGE (6X12)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90124-ZW1-910

BOLT, STUD (10X202)

$46.99

$

Usually ships in 3-6 days

0

16

Honda 90114-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$5.99

$

Usually ships in 3-6 days

0

17

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90125-ZW1-910

BOLT, STUD (10X164)

$41.99

$

Usually ships in 3-6 days

0

19

Honda 90308-ZV5-003

NUT, SELF-LOCK (12MM)

$14.99

$

Usually ships in 3-6 days

0

20

Honda 90501-ZW1-710

WASHER (26MM)

$28.99

$

Usually ships in 3-6 days

0

21

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90651-ZW1-710

CIRCLIP (INNER) (40)

$17.99

$

Usually ships in 3-6 days

0

24

Honda 90651-ZZ3-003

CLIP (7MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$4.49

$

In Stock, only 2 left!

0

26

Honda 90559-ZW1-000

WASHER, PLAIN (12MM)

$8.99

$

Usually ships in 3-6 days

0
