BF75 A1 XRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4400001 - BBAL-4409999) PROPELLER SHAFT@PROPELLER Parts Diagram

Marine Engine, Made in Japan

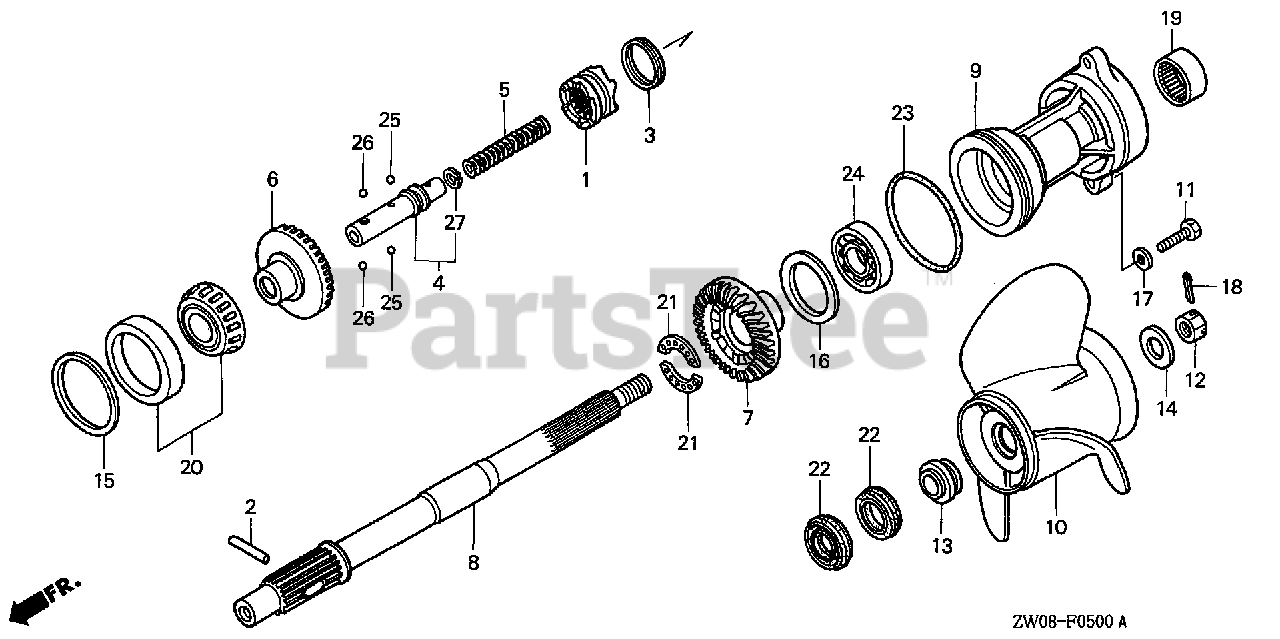

PROPELLER SHAFT@PROPELLER Parts Diagram

  • Title

1

Honda 24101-ZW5-010

SEE PART DETAILS - PRI; SHIFTER, CLUTCH

$172.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.99

$

Usually ships in 3-6 days

0

4

Honda 24113-ZW5-000

SLIDER, SHIFT

$142.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZW1-B00

SPRING, SHIFT

$4.49

$

Usually ships in 3-6 days

0

6

Honda 41140-ZW1-B02

GEAR, BEVEL (F)

$378.99

$

Usually ships in 3-6 days

0

7

Honda 41151-ZW1-B03

SEE PART DETAILS - PRI; GEAR, BEVEL (R)

$

$

Not available

8

Honda 41161-ZW5-010

SEE PART DETAILS - PRI; SHAFT, PROPELLER

$596.99

$

Usually ships in 3-6 days

0

9

Honda 41201-ZW1-B01ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 41201-ZW1-305ZA)

$

$

Not available

9

Honda 41201-ZW1-305ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

10

Honda 58130-ZW1-W11ZA

SEE PART DETAILS - SUP; PROPELLER, THREE-BLADE (14X13) *NH105* (AL) (MAT BLACK) Use up to Frame SN 1302159.
(Superseded to 58130-ZW1-013AH)

Note: (Optional).Use up to Frame SN 4410856.

$188.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W21ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-3/4X15) *NH105* (AL) (MAT BLACK) Use up to Frame SN 1302159.

Note: (Optional).Use up to Frame SN 4410856.

$

$

Not available

10

Honda 58130-ZW1-W61ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13X19) *NH105* (AL) (MAT BLACK) Use up to Frame SN 1302159.

Note: (Optional).Use up to Frame SN 4410856.

$

$

Not available

10

Honda 58130-ZW1-013AH

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (14X13) *NH105* (AL) (MAT BLACK) Use up to Frame SN 1302159.

Note: (Optional).Use up to Frame SN 4410856.

$188.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-017AH

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-1/4X17) *NH105* (AL) (MAT BLACK) Use up to Frame SN 1302159.

Note: (Optional).Use up to Frame SN 4410856.

$188.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W43ZB

PROPELLER, THREE-BLADE (13X21) *NH283* (AL) Use from Frame SN 1302160.

Note: (Optional).

$341.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-V03

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13X19) (SUS) Use from Frame SN 1302132.

Note: (Optional).

$1366.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-V13

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13X21) (SUS) Use from Frame SN 1302132.

Note: (Optional).

$1591.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W03ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (14X11) *NH283* (AL) Use from Frame SN 1302160.

Note: (Optional).

$219.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W13ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-3/4X13) *NH283* (AL) Use from Frame SN 1302160.

Note: (Optional).

$206.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W13ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-3/4X13) *NH283* (AL) Use from Frame SN 1302160.

Note: (Optional).Use from Frame SN 4410857.

$206.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W33ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-1/4X17) *NH283* (AL) Use from Frame SN 1302160.

Note: (Optional).

$206.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W33ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-1/4X17) *NH283* (AL) Use from Frame SN 1302160.

Note: (Optional).Use from Frame SN 4410857.

$206.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W64ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13X19) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$313.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W64ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13X19) *NH283* (AL) (STIN GRAY)

Note: (Optional).Use from Frame SN 4410857.

$313.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-W93

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (13-1/4X17) (SUS) Use from Frame SN 1302160.

Note: (Optional).

$1591.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-015AH

PROPELLER, THREE-BLADE (13-1/2X15) *NH283* (AL) (STIN GRAY)

Note: (Optional).

$188.99

$

Usually ships in 3-6 days

0

10

Honda 58130-ZW1-015AH

PROPELLER, THREE-BLADE (13-1/2X15) *NH283* (AL) (STIN GRAY)

Note: (Optional).Use from Frame SN 4410857.

$188.99

$

Usually ships in 3-6 days

0

11

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$17.99

$

In Stock, only 2 left!

0

13

Honda 90506-ZW1-B00

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ0-C00)

$78.99

$

Usually ships in 3-6 days

0

14

Honda 90508-ZW1-B00

WASHER, PLAIN (18.5MM)

$16.99

$

Usually ships in 3-6 days

0

15

Honda 90528-ZW1-B00

SHIM A, BEVEL (0.10) (FR.)

$22.99

$

Usually ships in 3-6 days

0

15

Honda 90529-ZW1-B00

SHIM B, BEVEL (0.15) (FR.)

$22.99

$

Usually ships in 3-6 days

0

15

Honda 90530-ZW1-B00

SHIM C, BEVEL (0.30) (FR.)

$24.99

$

Usually ships in 3-6 days

0

15

Honda 90531-ZW1-B00

SHIM D, BEVEL (0.50) (FR.)

$26.99

$

Usually ships in 3-6 days

0

16

Honda 90538-ZW1-B00

SHIM A, BEVEL GEAR (0.10) (RR)

$

$

Not available

16

Honda 90539-ZW1-B00

SHIM B, BEVEL GEAR (0.15) (RR)

$

$

Not available

16

Honda 90540-ZW1-B00

SHIM C, BEVEL GEAR (0.30) (RR)

$

$

Not available

16

Honda 90541-ZW1-B00

SHIM D, BEVEL GEAR (0.50) (RR)

$

$

Not available

17

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

In Stock, only 3 left!

0

19

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

$42.99

$

Usually ships in 3-6 days

0

20

Honda 91051-ZW1-B02

BEARING, TAPERED ROLLER (50X82X21.5)

$109.99

$

Usually ships in 3-6 days

0

21

Honda 91054-ZW5-003

BEARING, BALL (28X38X3)

$38.99

$

Usually ships in 3-6 days

0

22

Honda 91252-ZW1-B02

SEAL, WATER (30X45X7)

$13.99

$

In Stock, only 1 left!

0

23

Honda 91351-ZW1-B02

O-RING (94X4.1)

$9.99

$

Usually ships in 3-6 days

0

24

Honda 96100-62080-00

BEARING, RADIAL BALL (6208)

$43.99

$

Usually ships in 3-6 days

0

25

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

26

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94510-14000

CIRCLIP (OUTER) (14MM)

$1.49

$

Usually ships in 3-6 days

0
