BF75 A5 LRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4700001 - BBAL-4799999) CONTROL PANEL (2) Parts Diagram

Marine Engine, Made in Japan

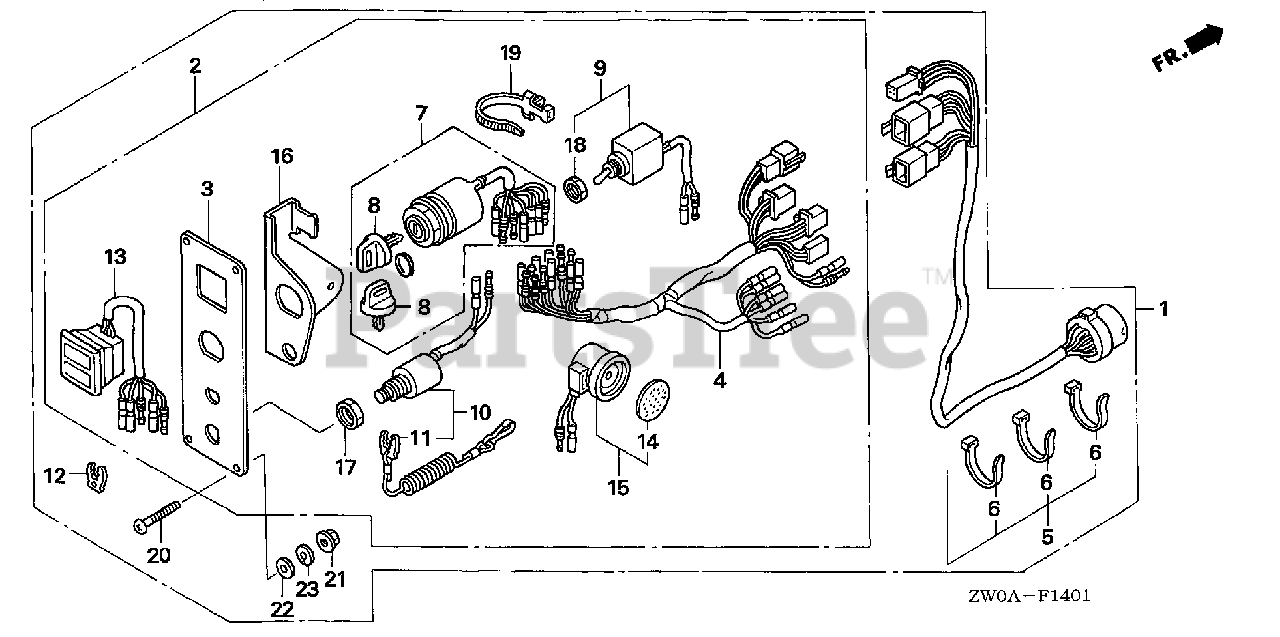

CONTROL PANEL (2) Parts Diagram

  • Title

1

Honda 06323-ZW1-V15

SEE PART DETAILS - PRI; PANEL KIT, SWITCH (DUAL)

$1740.99

$

Usually ships in 3-6 days

0

2

Honda 32340-ZW1-V06

SEE PART DETAILS - SUP; PANEL ASSY., CONTROL

$

$

Not available

3

Honda 32346-ZW1-V04

SEE PART DETAILS - SUP; PANEL, CONTROL

$

$

Currently unavailable

4

Honda 32545-ZW1-V03

HARNESS ASSY., SWITCH PANEL

$158.99

$

Usually ships in 3-6 days

0

5

Honda 32580-ZY3-000

CABLE ASSY., SWITCH PANEL
(Superseded to 32580-ZW2-D01)

$303.99

$

Usually ships in 3-6 days

0

6

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION

$207.99

$

Usually ships in 3-6 days

0

8

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH

$12.99

$

Usually ships in 3-6 days

0

9

Honda 35630-ZW1-V01

SWITCH ASSY., SOLENOID

$69.99

$

Usually ships in 3-6 days

0

10

Honda 36180-ZV5-013

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

$86.99

$

Usually ships in 3-6 days

0

10

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

$86.99

$

Usually ships in 3-6 days

0

11

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

$27.99

$

Usually ships in 3-6 days

0

12

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

$6.49

$

Usually ships in 3-6 days

0

12

Honda 36187-ZV4-652

SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK

$6.49

$

Usually ships in 3-6 days

0

13

Honda 37210-ZW1-702

LAMP ASSY., INDICATION (2-LED)

$186.99

$

Usually ships in 3-6 days

0

14

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER

$7.49

$

Usually ships in 3-6 days

0

15

Honda 38410-ZV5-003

BUZZER, WARNING

$85.99

$

Usually ships in 3-6 days

0

16

Honda 38414-ZW1-V02

BRACKET, BUZZER

$46.99

$

Usually ships in 3-6 days

0

17

Honda 90302-921-000

NUT, HEX. (16MM)

$6.49

$

In Stock, only 1 left!

0

18

Honda 90305-ZW1-V01

NUT, HEX. (12MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM)

$9.99

$

Usually ships in 3-6 days

0

20

Honda 90109-ZW5-000

SCREW, PAN (5X40)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 18334-MT8-770

NUT, FLANGE (5MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94103-05400

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-05400

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
