BF75 A5 LRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4700001 - BBAL-4799999) PROPELLER SHAFT + PROPELLER Parts Diagram

Marine Engine, Made in Japan

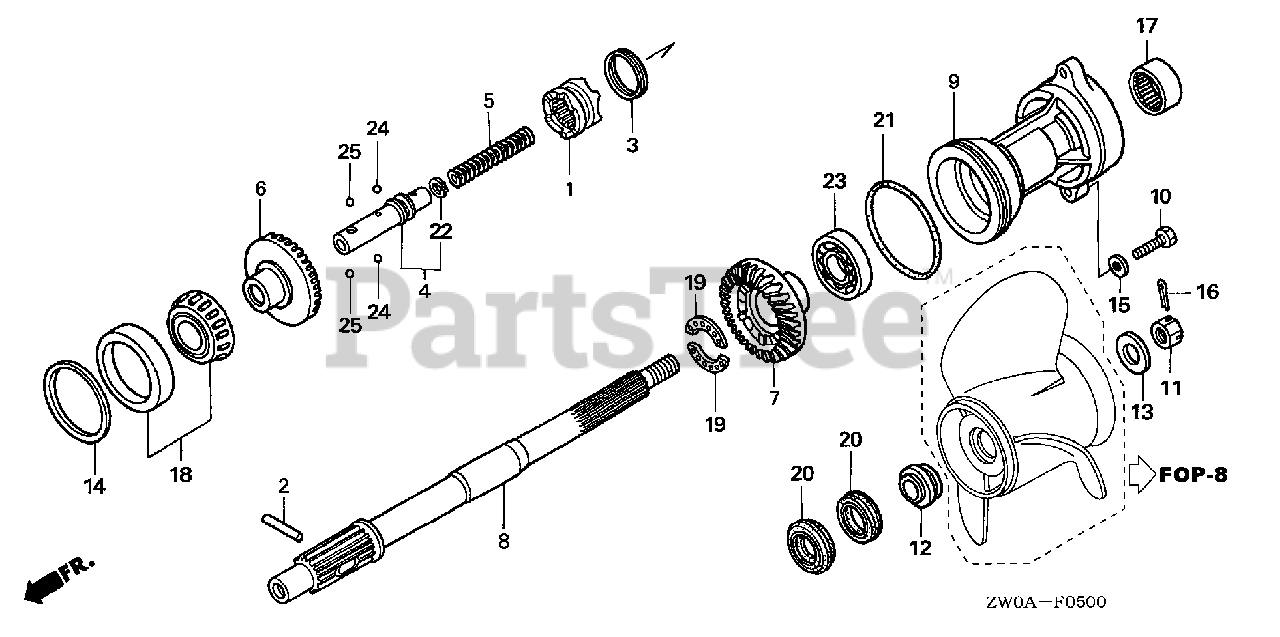

PROPELLER SHAFT + PROPELLER Parts Diagram

  • Title

1

Honda 24101-ZW5-010

SEE PART DETAILS - PRI; SHIFTER, CLUTCH

$172.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.99

$

Usually ships in 3-6 days

0

4

Honda 24113-ZW5-000

SLIDER, SHIFT

$142.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZW1-B00

SPRING, SHIFT

$4.49

$

Usually ships in 3-6 days

0

6

Honda 41140-ZW1-B02

GEAR, BEVEL (F)

$378.99

$

Usually ships in 3-6 days

0

7

Honda 41151-ZW1-B03

SEE PART DETAILS - PRI; GEAR, BEVEL (R)

$

$

Not available

8

Honda 41161-ZW5-010

SEE PART DETAILS - PRI; SHAFT, PROPELLER

$596.99

$

Usually ships in 3-6 days

0

9

Honda 41201-ZW1-B02ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$198.99

$

Usually ships in 3-6 days

0

10

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$9.99

$

Usually ships in 3-6 days

0

11

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$17.99

$

In Stock, only 2 left!

0

12

Honda 90506-ZW1-B00

WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ0-C00)

$78.99

$

Usually ships in 3-6 days

0

13

Honda 90508-ZW1-B00

WASHER, PLAIN (18.5MM)

$16.99

$

Usually ships in 3-6 days

0

14

Honda 90528-ZW1-B00

SHIM A, BEVEL (0.10) (FR)

$22.99

$

Usually ships in 3-6 days

0

14

Honda 90529-ZW1-B00

SHIM B, BEVEL (0.15) (FR)

$22.99

$

Usually ships in 3-6 days

0

14

Honda 90530-ZW1-B00

SHIM C, BEVEL (0.30) (FR)

$24.99

$

Usually ships in 3-6 days

0

14

Honda 90531-ZW1-B00

SHIM D, BEVEL (0.50) (FR)

$26.99

$

Usually ships in 3-6 days

0

15

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

In Stock, only 3 left!

0

17

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

$42.99

$

Usually ships in 3-6 days

0

18

Honda 91051-ZW1-B02

BEARING, TAPERED ROLLER (50X82X21.5)

$109.99

$

Usually ships in 3-6 days

0

19

Honda 91054-ZW5-003

BEARING, BALL (28X38X3)

$38.99

$

Usually ships in 3-6 days

0

20

Honda 91252-ZW1-B02

SEAL, WATER (30X45X7)

Note: Use up to Frame SN 4700288.

$13.99

$

In Stock, only 1 left!

0

20

Honda 91252-ZY3-003

SEAL, WATER (30X45X7)

Note: Use from Frame SN 4700289.

$11.99

$

In Stock, only 1 left!

0

21

Honda 91351-ZW1-B02

O-RING (94X4.1)

$9.99

$

Usually ships in 3-6 days

0

22

Honda 94510-14000

CIRCLIP (OUTER) (14MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 96100-62080-00

BEARING, RADIAL BALL (6208)

$43.99

$

Usually ships in 3-6 days

0

24

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

25

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.99

$

Usually ships in 3-6 days

0
