BF75 DK0 LHTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) FUEL PUMP Parts Diagram

Marine Engine, Made in Japan

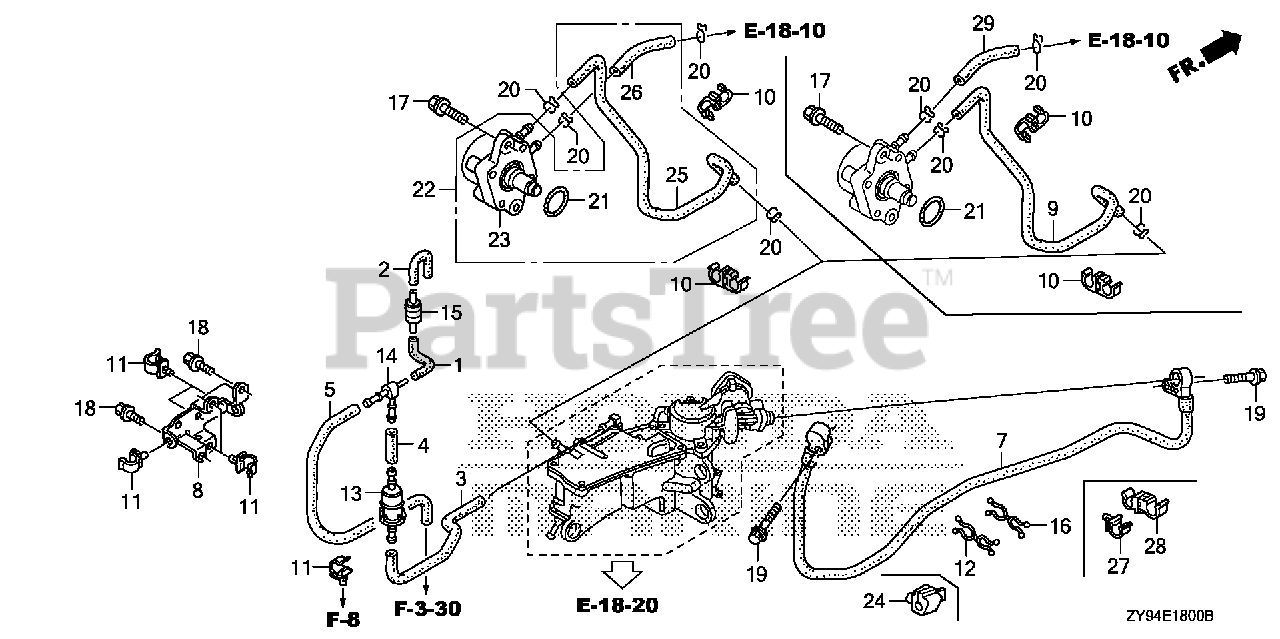

FUEL PUMP Parts Diagram

  • Title

1

Honda 16195-ZY9-000

TUBE A, CHECK VALVE

$6.99

$

Usually ships in 3-6 days

0

2

Honda 16196-ZY9-000

TUBE B, CHECK VALVE

$1.99

$

Usually ships in 3-6 days

0

3

Honda 16197-ZY9-000

TUBE A, AIR VENT

$6.49

$

Usually ships in 3-6 days

0

4

Honda 16198-ZY9-000

TUBE B, AIR VENT

$17.99

$

Usually ships in 3-6 days

0

5

Honda 16199-ZY9-000

TUBE C, AIR VENT

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16755-ZY9-003

HOSE, FUEL

$149.99

$

Usually ships in 3-6 days

0

8

Honda 16816-ZY9-000

BRACKET, FUEL TUBE CLAMP

$16.99

$

Usually ships in 3-6 days

0

9

Honda 06167-ZY9-000

SEE PART DETAILS - PRI; PUMP ASSY. KIT, FUEL (MSDS)

Note: Use up to Engine SN 1004358.

$152.99

$

Usually ships in 3-6 days

0

10

Honda 16895-ZY9-003

CLAMP A, FUEL TUBE

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

12

Honda 16897-ZY9-003

CLAMP C, FUEL TUBE

Note: Use up to Engine SN 1004257.

$2.99

$

Usually ships in 3-6 days

0

13

Honda 16910-ZV4-015

SEE PART DETAILS - PRI; FILTER, FUEL

$18.99

$

In Stock, only 4 left!

0

14

Honda 19269-ZY6-000

T-JOINT

$12.99

$

Usually ships in 3-6 days

0

15

Honda 36135-ZY6-003

VALVE, CHECK

$33.99

$

Usually ships in 3-6 days

0

16

Honda 78419-SJ6-003

CLIP D, SPEEDOMETER CABLE

Note: Use up to Engine SN 1004257.

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90003-ZW9-000

BOLT, FLANGE (6X22)
(Superseded to 90003-ZY9-M01)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

19

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

Note: Use from Engine SN 1004359.

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

Note: Use up to Engine SN 1004358.

$1.99

$

Usually ships in 3-6 days

0

21

Honda 91303-ZW9-000

O-RING (31.2X2.4)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 06167-ZY9-000

SEE PART DETAILS - PRI; PUMP ASSY. KIT, FUEL (MSDS)

Note: Use up to Engine SN 1004358.

$152.99

$

Usually ships in 3-6 days

0

23

Honda 16700-ZY9-013

PUMP ASSY., FUEL (MSDS)

Note: Use from Engine SN 1004359.

$152.99

$

Usually ships in 3-6 days

0

24

Honda 16756-ZY9-000

GROMMET, FUEL HOSE

Note: Use from Engine SN 1004258.

$18.99

$

Usually ships in 3-6 days

0

25

Honda 16881-ZY9-010

TUBE D, FUEL

Note: Use from Engine SN 1004359.

$12.99

$

Usually ships in 3-6 days

0

26

Honda 16891-ZY9-000

TUBE E, FUEL

Note: Use from Engine SN 1004359.

$9.99

$

Usually ships in 3-6 days

0

27

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

Note: Use from Engine SN 1004258.

$3.99

$

Usually ships in 3-6 days

0

28

Honda 36533-P3F-A01

CLAMP, OXYGEN SENSOR

Note: Use from Engine SN 1004258.

$6.99

$

Usually ships in 3-6 days

0

29

Honda 95001-75008-60M

BULK HOSE, FUEL (7.5X8000) (7.3X160)

Note: Use up to Engine SN 1004358.

$144.99

$

Usually ships in 3-6 days

0
