BF75 DK3 LRTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1200001 - BBAJ-1299999) MOUNT CASE Parts Diagram

Marine Engine, Made in Japan

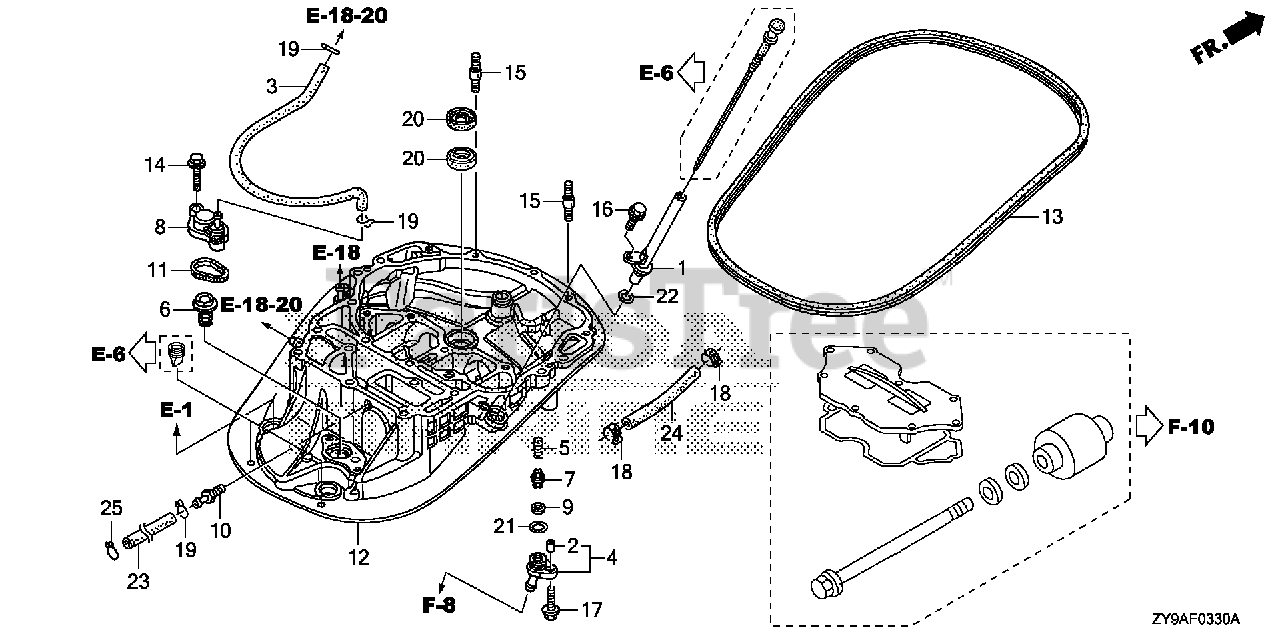

MOUNT CASE Parts Diagram

  • Title

1

Honda 15665-ZY9-000

PIPE, OIL LEVEL

$

$

Not available

2

Honda 17202-ZV5-310

SEE PART DETAILS - PRI; COLLAR, DISTANCE (6.5X11X7.5)

$2.99

$

Usually ships in 3-6 days

0

3

Honda 19256-ZY9-000

TUBE B, WATER

$6.49

$

Usually ships in 3-6 days

0

4

Honda 19277-ZY9-M00

COVER, FLUSH VALVE
(Superseded to 19277-ZY9-M01)

$15.99

$

Usually ships in 3-6 days

0

5

Honda 19279-ZW9-000

SEE PART DETAILS - SUP; SPRING, FLUSH VALVE
(Superseded to 19279-ZW9-010)

$1.99

$

Usually ships in 3-6 days

0

5

Honda 19279-ZW9-010

SEE PART DETAILS - PRI; SPRING, FLUSH VALVE

$1.99

$

Usually ships in 3-6 days

0

6

Honda 19290-ZY6-003

VALVE ASSY., RELIEF

$56.99

$

Usually ships in 3-6 days

0

7

Honda 19291-ZW9-000

VALVE, FLUSH

$7.49

$

Usually ships in 3-6 days

0

8

Honda 19295-ZY9-000

COVER, RELIEF VALVE

$37.99

$

Usually ships in 3-6 days

0

9

Honda 19297-ZW9-000

GASKET, FLUSH VALVE

$3.49

$

Usually ships in 3-6 days

0

10

Honda 19312-ZW4-H00

JOINT, WATER TUBE

$11.99

$

Usually ships in 3-6 days

0

11

Honda 19317-ZW9-000

O-RING, THERMOSTAT COVER

$6.99

$

In Stock, only 1 left!

0

12

Honda 23170-ZY9-010ZA

CASE, MOUNT *NH8* (DARK GRAY)

$1012.99

$

Usually ships in 3-6 days

0

13

Honda 63718-ZY9-000

SEAL A, COVER (LOWER)

$35.99

$

Usually ships in 3-6 days

0

14

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90043-ZY3-000

BOLT, STUD (8X28)
(Superseded to 90043-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90601-ZY3-030

CLAMP, TUBE (D10.5) (ENGINE NO.)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 91202-ZW5-003

SEAL, WATER (22X35X7)

$15.99

$

Usually ships in 3-6 days

0

21

Honda 91303-800-000

O-RING (16MM) (Honda Code 0065094).

$2.99

$

In Stock, only 1 left!

0

22

Honda 91309-PJ7-010

O-RING (11.5X3.5)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 91402-ZY9-000

TUBE, WATER CHECK

$3.49

$

Usually ships in 3-6 days

0

24

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$32.99

$

Usually ships in 3-6 days

0

25

Honda 16163-GHB-600

CLIP, TUBE

$2.49

$

Usually ships in 3-6 days

0
