BF75 E SA (BF75S) - Honda Marine Engine, Made in Japan (SN: BF75S-1600001 - BF75S-9999999) INLET MANIFOLD Parts Diagram

Marine Engine, Made in Japan

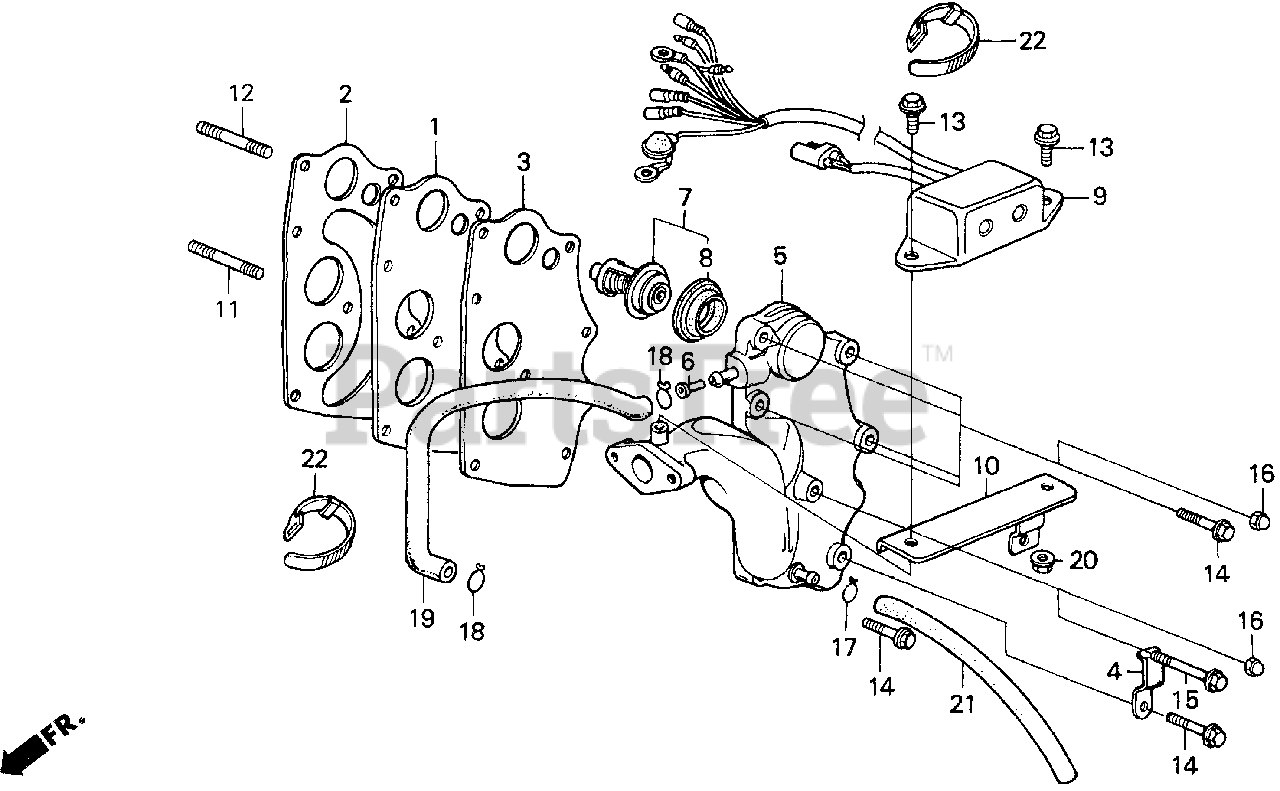

INLET MANIFOLD Parts Diagram

  • Title

1

Honda 12515-881-000

PLATE, EX. CHAMBER

$

$

Not available

2

Honda 12516-881-850

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER
(Superseded to 12516-881-003)

$20.99

$

Usually ships in 3-6 days

0

3

Honda 12517-881-306

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER
(Superseded to 12517-881-003)

$6.49

$

Usually ships in 3-6 days

0

3

Honda 12517-881-850

SEE PART DETAILS - SUP; GASKET, EX. CHAMBER
(Superseded to 12517-881-003)

$6.49

$

Usually ships in 3-6 days

0

4

Honda 16731-921-000

CLAMP, FUEL TUBE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17100-881-740ZA

SEE PART DETAILS - PRI; MANIFOLD, IN. *NH8* (DARK GRAY)

$

$

Not available

6

Honda 17103-881-000

NOZZLE, THROTTLE (NOT AVAILABLE)

$

$

Not available

7

Honda 19300-921-003

SEE PART DETAILS - SUP; THERMOSTAT ASSY.
(Superseded to 19300-881-741)

$54.99

$

In Stock, only 2 left!

0

7

Honda 19300-881-741

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$54.99

$

In Stock, only 2 left!

0

8

Honda 19302-921-003

RUBBER, THERMOSTAT

$8.99

$

In Stock, only 4 left!

0

9

Honda 30580-881-734

MODULE, IGNITION CONTROL (CDI)

$

$

Not available

10

Honda 30586-881-000

SEE PART DETAILS - SUP; STAY, IGNITION CONTROL MODULE
(Superseded to 30586-881-010)

$

$

Not available

10

Honda 30586-881-010

SEE PART DETAILS - PRI; STAY, IGNITION CONTROL MODULE

$

$

Not available

13

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 3 left!

0

14

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

15

Honda 90125-881-000

BOLT, FLANGE (6X40)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90604-881-000

SEE PART DETAILS - SUP; CLIP, TUBE (B12)

$

$

Not available

19

Honda 90807-881-000

TUBE, BYPASS

$

$

Not available

20

Honda 94001-06020-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 8

0

21

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X250)

$29.99

$

Usually ships in 3-6 days

0

22

Honda 95014-62100

BAND B1, CABLE

$1.99

$

Usually ships in 3-6 days

0
