BF8 A3 SA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-1700001 - BZBC-1799999) FLYWHEEL Parts Diagram

Outboard Engine, Made in Japan

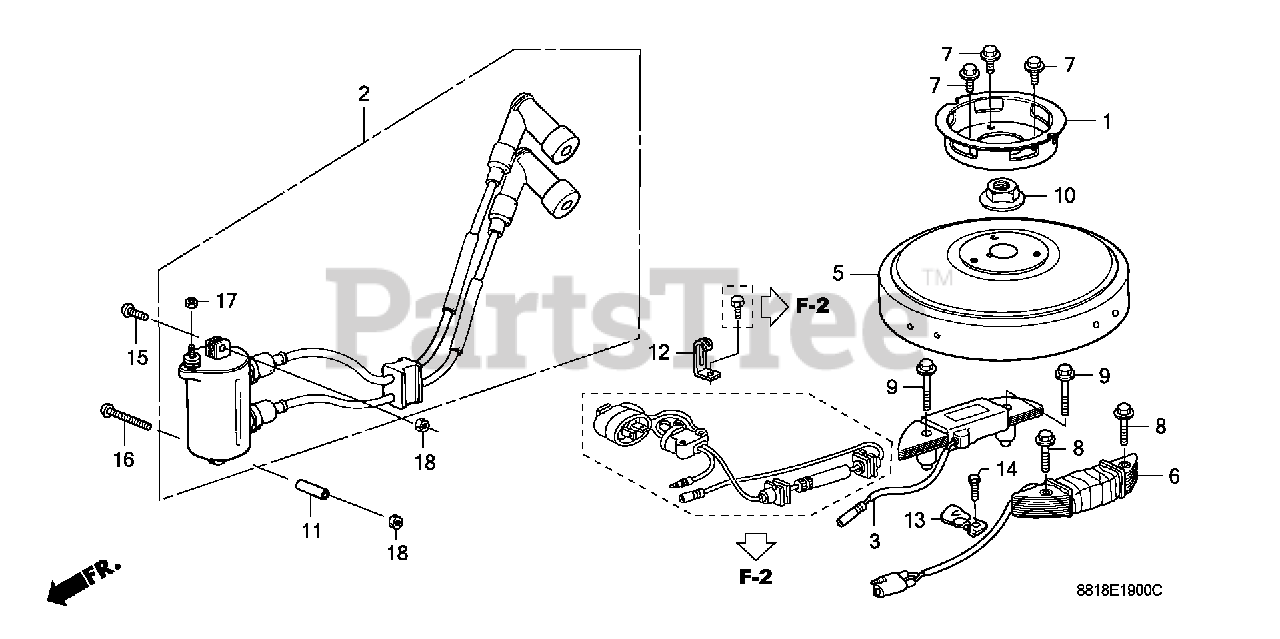

FLYWHEEL Parts Diagram

  • Title

1

Honda 28571-881-000

PULLEY, STARTER

$

$

Not available

2

Honda 30500-ZV8-G01

SEE PART DETAILS - PRI; COIL ASSY., C.D.I. IGNITION

$156.99

$

Usually ships in 3-6 days

0

3

Honda 30540-881-732

COIL ASSY., EXCITER

$

$

Not available

5

Honda 31100-881-010ZC

FLYWHEEL *TBLACK* (BLACK)

$437.99

$

Usually ships in 3-6 days

0

6

Honda 31630-881-A01

COIL ASSY., CHARGE (DC12V/55W)

$

$

Not available

7

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90124-881-010

BOLT, FLANGE (6X35)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90201-881-000

NUT, SPECIAL (14MM)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 90742-881-010

COLLAR, DISTANCE

$

$

Not available

12

Honda 91401-ZV4-000

CLIP, TUBE

$4.99

$

Usually ships in 3-6 days

0

13

Honda 91404-881-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90003-881-000

SCREW, PAN (6X12)
(Superseded to 90003-881-010)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90008-881-000

SCREW, PAN (6X28)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90010-881-000

SCREW, PAN (6X50)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 94001-05330-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90302-ZW4-000

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0
