BF9.9 DK0 LRA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1600001 - BABJ-9999999) METER Parts Diagram

Outboard Engine, Made in Japan

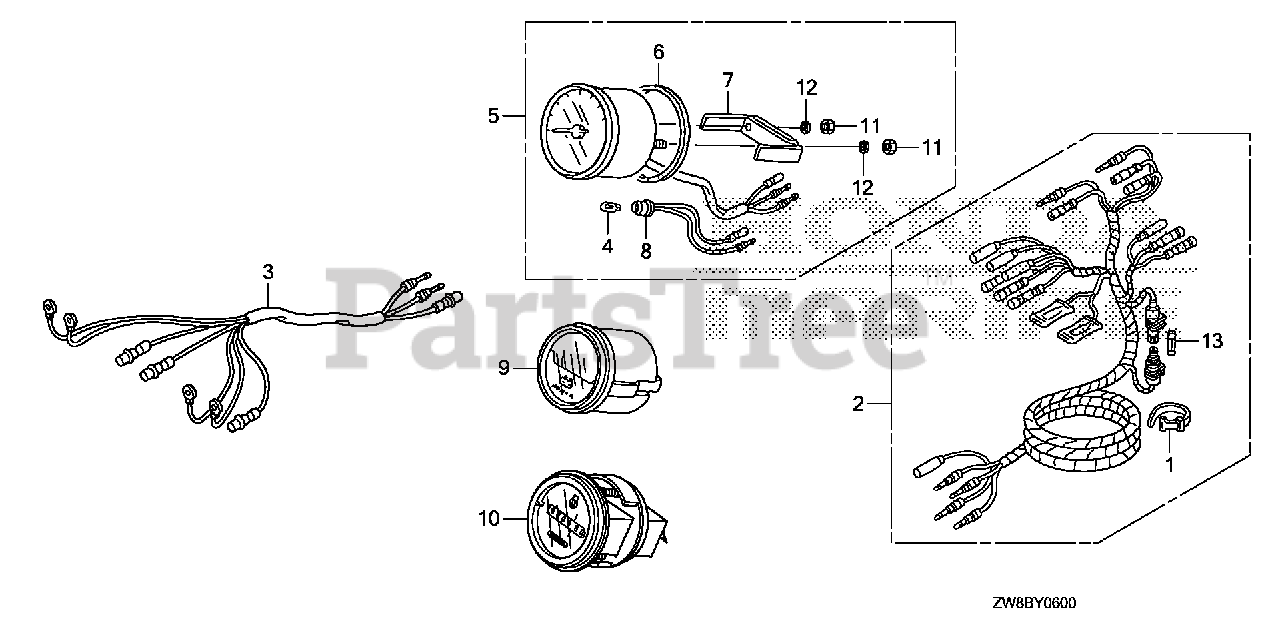

METER Parts Diagram

  • Title

1

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

Note: (Optional).

$2.99

$

In Stock, only 4 left!

0

2

Honda 32540-ZV5-911

HARNESS ASSY., METER (A)

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

3

Honda 32550-ZV5-910

HARNESS ASSY., METER (B)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

4

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

5

Honda 37250-ZW9-902

TACHOMETER ASSY.

Note: (Optional).

$

$

Not available

6

Honda 37253-ZV5-821

GASKET

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

7

Honda 37256-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

8

Honda 37258-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

9

Honda 37450-ZV5-910

METER ASSY., VOLT

Note: (Optional).

$

$

Currently unavailable

10

Honda 39700-ZV5-800AH

SEE PART DETAILS - PRI; METER ASSY., HOUR L.C.D.

Note: (Optional).

$56.99

$

Usually ships in 3-6 days

0

11

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 98200-11000

SEE PART DETAILS - PRI; FUSE A (10A)

Note: (Optional).

$1.49

$

In Stock, only 1 left!

0
