BF9.9 DK0 SHA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1600001 - BABJ-9999999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

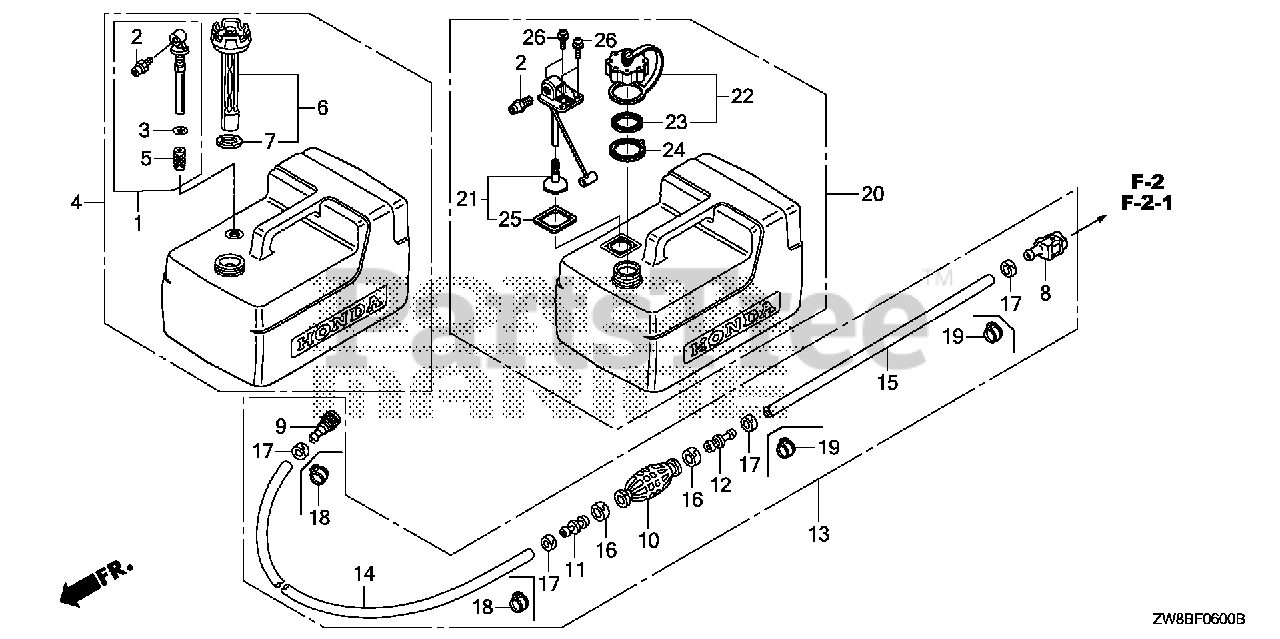

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV4-A22

SEE PART DETAILS - PRI; JOINT ASSY., FUEL

$42.99

$

In Stock, only 1 left!

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT Use from Frame SN 1205705.

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-901

SEE PART DETAILS - PRI; O-RING Use from Frame SN 1300962.

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZZ5-003

SEE PART DETAILS - PRI; TANK ASSY., FUEL

$261.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

$2.99

$

In Stock, only 2 left!

0

6

Honda 17620-ZV4-A22

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZV4-A23)

Note: Use up to Frame SN 1606638.

$

$

Not available

6

Honda 17620-ZV4-A23

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use from Frame SN 1606639.

$

$

Not available

7

Honda 17624-ZV5-902

GASKET, FUEL CAP

$10.99

$

Usually ships in 3-6 days

0

8

Honda 17650-ZW9-023

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (A)

$52.99

$

In Stock, only 1 left!

0

9

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL (CONNECTOR TYPE)

$48.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$19.99

$

In Stock, only 1 left!

0

11

Honda 17665-ZV5-000

VALVE, IN.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

$18.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-030

SEE PART DETAILS - PRI; TUBE ASSY., FUEL

Note: Use up to Frame SN 1605852.

$99.99

$

In Stock, only 1 left!

0

13

Honda 17700-ZW9-904

TUBE ASSY., FUEL TANK

Note: Use from Frame SN 1605853.

$193.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-904

TUBE ASSY., FUEL TANK

Note: Use from Frame SN 1606786.

$193.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)

Note: Use up to Frame SN 1605852.

$69.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1605853.

$142.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500) (CONNECTOR TYPE)

Note: Use up to Frame SN 1605852.

$15.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-901

TUBE, FUEL SHORT (6.3X500)
(Superseded to 17702-ZW9-904)

Note: Use from Frame SN 1605853 to 1606785.

$31.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-901

TUBE, FUEL SHORT (6.3X500)
(Superseded to 17702-ZW9-904)

Note: Use from Frame SN 1606786.

$31.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-904

TUBE, FUEL SHORT

Note: Use from Frame SN 1606786.

$31.99

$

Usually ships in 3-6 days

0

16

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use up to Frame SN 1605852.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 16895-ZW9-900

CLAMP, FUEL TUBE (CONNECTOR TYPE)

Note: Use from Frame SN 1605853.

$5.99

$

Usually ships in 3-6 days

0

19

Honda 16896-ZW9-900

CLAMP, FUEL TUBE

Note: Use from Frame SN 1605853.

$5.99

$

Usually ships in 3-6 days

0
