BF90 DK0 LHTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1000001 - BBCJ-9999999) HANDLEBAR Parts Diagram

Marine Engine, Made in Japan

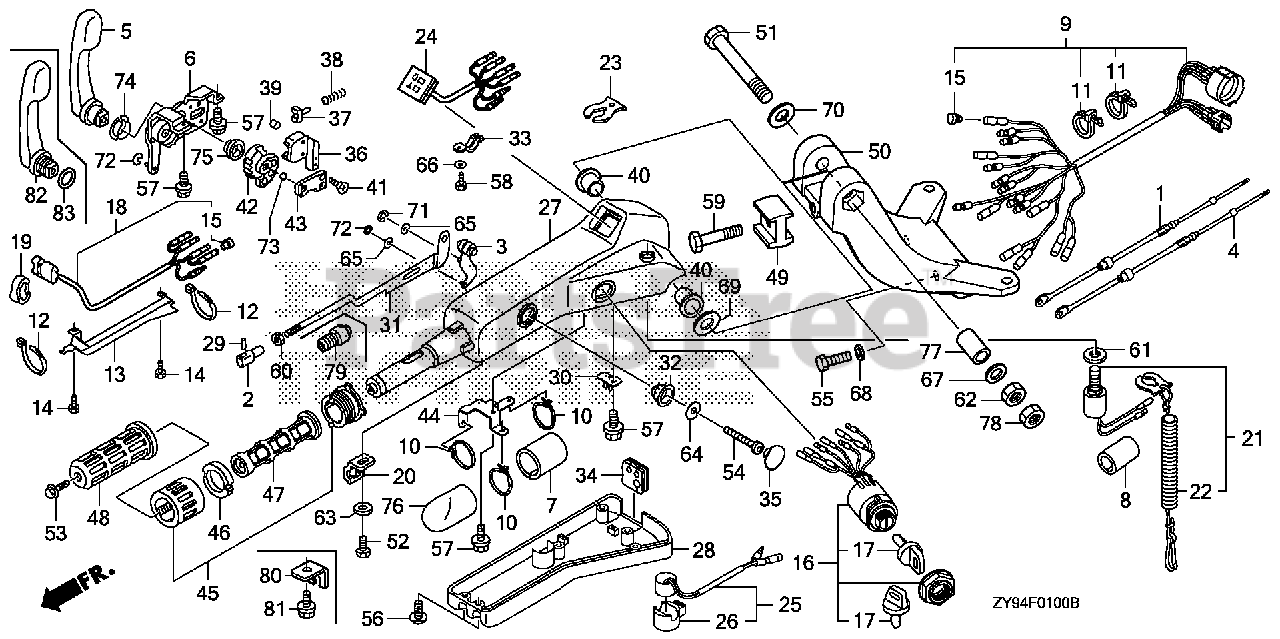

HANDLEBAR Parts Diagram

  • Title

1

Honda 17910-ZY9-701

CABLE, THROTTLE

$99.99

$

Usually ships in 3-6 days

0

2

Honda 17917-ZW9-000

PIVOT, THROTTLE CABLE

$10.99

$

Usually ships in 3-6 days

0

3

Honda 17931-ZW4-H02

ARM, THROTTLE

$43.99

$

Usually ships in 3-6 days

0

4

Honda 24590-ZY9-701

CABLE, SHIFT

$142.99

$

Usually ships in 3-6 days

0

5

Honda 24614-ZW4-H01

SEE PART DETAILS - SUP; LEVER, SHIFT
(Superseded to 24614-ZW4-H02)

Note: Use up to Frame SN 1008177.

$

$

Not available

5

Honda 24614-ZW4-H02

SEE PART DETAILS - PRI; LEVER, SHIFT

Note: Use up to Frame SN 1008670.

$

$

Not available

6

Honda 24615-ZW4-H02

FRAME ASSY., SHIFT
(Superseded to 24615-ZW4-H03)

Note: Use from Frame SN 1004113 to 1008177.

$142.99

$

Usually ships in 3-6 days

0

6

Honda 24615-ZW4-H03

FRAME ASSY., SHIFT

Note: Use up to Frame SN 1004112.

$142.99

$

Usually ships in 3-6 days

0

6

Honda 24615-ZW4-H03

FRAME ASSY., SHIFT

Note: Use from Frame SN 1008178.

$142.99

$

Usually ships in 3-6 days

0

7

Honda 32533-ZW4-H01

TUBE (38.1X40)

$9.49

$

Usually ships in 3-6 days

0

8

Honda 32534-ZY9-A01

TUBE

$7.99

$

Usually ships in 3-6 days

0

9

Honda 32538-ZY9-A01

CABLE ASSY., LONG HANDLE (A)

$273.99

$

Usually ships in 3-6 days

0

10

Honda 32543-ZW4-H01

BAND (CONVEX CV-150)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 32544-ZW4-H01

BAND (CONVEX CV-200)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 32547-ZW4-H01

BAND (CONVEX)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 32548-ZW4-H01

COVER, WIRE

$18.99

$

Usually ships in 3-6 days

0

14

Honda 32549-ZW4-H01

SCREW

$2.49

$

Usually ships in 3-6 days

0

15

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 35100-ZW4-H02

SWITCH ASSY., COMBINATION

$132.99

$

Usually ships in 3-6 days

0

17

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY)

Note: Use up to Frame SN 1011478.

$12.99

$

Usually ships in 3-6 days

0

18

Honda 35640-ZW4-H11

SWITCH ASSY., POWER TILT

$82.99

$

Usually ships in 3-6 days

0

19

Honda 35643-ZW4-H02

GROMMET

$25.99

$

Usually ships in 3-6 days

0

20

Honda 35645-ZW4-H02

HOLDER, SWITCH

$20.99

$

Usually ships in 3-6 days

0

21

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

$86.99

$

Usually ships in 3-6 days

0

21

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

$86.99

$

Usually ships in 3-6 days

0

22

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

$27.99

$

Usually ships in 3-6 days

0

23

Honda 36187-ZV4-652

CLIP, EMERGENCY LOCK

$6.49

$

Usually ships in 3-6 days

0

24

Honda 37210-ZY9-A02

LAMP ASSY., INDICATOR
(Superseded to 37210-ZY9-A03)

$153.99

$

Usually ships in 3-6 days

0

25

Honda 38400-ZY9-A00

BUZZER ASSY., WARNING

$106.99

$

Usually ships in 3-6 days

0

26

Honda 38402-ZY9-A00

SUSPENSION, WARNING BUZZER

$32.99

$

Usually ships in 3-6 days

0

27

Honda 06531-ZY9-305ZA

HOUSING *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use up to Frame SN 1008177.

$241.99

$

Usually ships in 3-6 days

0

27

Honda 53101-ZY9-A02ZA

HOUSING *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use from Frame SN 1008178.

$438.99

$

Usually ships in 3-6 days

0

28

Honda 53102-ZY9-A02

COVER, HANDLEBAR (LOWER)

Note: Use from Frame SN 1008178.

$23.99

$

Usually ships in 3-6 days

0

28

Honda 53102-ZY9-305

COVER, HANDLEBAR (LOWER)

Note: Use up to Frame SN 1008177.

$

$

Not available

29

Honda 53103-ZW9-000

PIN, THROTTLE CABLE

$4.49

$

Usually ships in 3-6 days

0

30

Honda 53104-ZW4-H02

BRACKET, CABLE

$8.99

$

Usually ships in 3-6 days

0

31

Honda 53105-ZY9-A01

PLATE ASSY., LOCK

$24.99

$

Usually ships in 3-6 days

0

32

Honda 53106-ZW4-H01

STOPPER

$17.99

$

Usually ships in 3-6 days

0

33

Honda 53107-ZW4-H02

PLATE, GUIDE

$9.49

$

Usually ships in 3-6 days

0

34

Honda 53108-ZY9-A00

GROMMET

$75.99

$

Usually ships in 3-6 days

0

35

Honda 53109-ZW4-H02

CAP

$13.99

$

Usually ships in 3-6 days

0

36

Honda 53112-ZW4-H02

GUIDE, SPRING

$33.99

$

Usually ships in 3-6 days

0

37

Honda 53113-ZW4-H01

ACTUATOR

$7.99

$

Usually ships in 3-6 days

0

38

Honda 53114-ZW4-H01

SPRING, COIL

$21.99

$

Usually ships in 3-6 days

0

39

Honda 53116-ZW4-H01

ROLLER

$2.99

$

Usually ships in 3-6 days

0

40

Honda 53116-ZW4-H11

BUSH, HANDLEBAR

$9.99

$

Usually ships in 3-6 days

0

41

Honda 53117-ZW4-H01

SCREW (M5X14)

Note: Use from Frame SN 1004113.

$1.49

$

Usually ships in 3-6 days

0

41

Honda 53117-ZW4-H01

SCREW (M5X14)

Note: Use up to Frame SN 1004112.

$1.49

$

Usually ships in 3-6 days

0

42

Honda 53118-ZW4-H03

SEE PART DETAILS - PRI; GEAR, SHIFT

$38.99

$

Usually ships in 3-6 days

0

43

Honda 53119-ZW4-H01

PLATE, BALL GUIDE
(Superseded to 53119-ZW4-H02)

Note: Use up to Frame SN 1004112.

$14.99

$

Usually ships in 3-6 days

0

43

Honda 53119-ZW4-H02

PLATE, BALL GUIDE

Note: Use from Frame SN 1004113.

$14.99

$

Usually ships in 3-6 days

0

44

Honda 53121-ZW4-H02

BRACKET

$18.99

$

Usually ships in 3-6 days

0

45

Honda 53130-ZW9-000

GRIP ASSY., THROTTLE FRICTION

$32.99

$

Usually ships in 3-6 days

0

46

Honda 53133-ZW9-000

PAD, THROTTLE FRICTION

$9.99

$

Usually ships in 3-6 days

0

47

Honda 53141-ZW4-H00

PIPE, GRIP

$35.99

$

Usually ships in 3-6 days

0

48

Honda 53165-ZW9-000

RUBBER, GRIP

$16.99

$

In Stock, only 1 left!

0

49

Honda 53232-ZY9-A00

BLOCK, HEIGHT ADJUSTER

$70.99

$

Usually ships in 3-6 days

0

50

Honda 53233-ZY9-A00ZA

BRACKET B, STEERING *NH282MU* (OYSTER SILVER METALLIC-U)

$656.99

$

Usually ships in 3-6 days

0

51

Honda 90101-ZW4-H00

BOLT, HEX. (12X80)

$24.99

$

Usually ships in 3-6 days

0

52

Honda 90102-ZW4-H01

BOLT (M5X8)

$2.49

$

Usually ships in 3-6 days

0

53

Honda 90102-ZW9-000

BOLT, FLANGE (6X12)

$3.49

$

Usually ships in 3-6 days

0

54

Honda 90103-ZW4-H02

SEE PART DETAILS - PRI; BOLT (M8X50)

$10.99

$

Usually ships in 3-6 days

0

55

Honda 90103-ZY3-000

BOLT, HEX. (10X32)

$8.49

$

Usually ships in 3-6 days

0

56

Honda 90104-ZW4-H01

BOLT (M5X12)

$2.49

$

Usually ships in 3-6 days

0

57

Honda 90105-ZW4-H02

BOLT (M6X12)

$2.99

$

Usually ships in 3-6 days

0

58

Honda 90106-ZW4-H01

BOLT (M5X12)

$2.49

$

Usually ships in 3-6 days

0

59

Honda 90118-HW1-671

BOLT, FLANGE (8X28)

$6.99

$

Usually ships in 3-6 days

0

60

Honda 90301-ZW4-H01

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

61

Honda 90302-921-000

NUT, HEX. (16MM)

$6.49

$

In Stock, only 1 left!

0

62

Honda 90303-ZW4-H00

NUT, HEX. (12MM)

$8.49

$

Usually ships in 3-6 days

0

63

Honda 90501-ZW4-H01

WASHER (5MM)

$2.49

$

Usually ships in 3-6 days

0

64

Honda 90502-ZW4-H02

SEE PART DETAILS - PRI; WASHER (8MM)

$2.99

$

Usually ships in 3-6 days

0

65

Honda 90503-ZW4-H01

WASHER (10MM)

$3.49

$

Usually ships in 3-6 days

0

66

Honda 90504-ZW4-H01

WASHER (5MM)

$2.49

$

Usually ships in 3-6 days

0

67

Honda 90506-ZV1-000

WASHER, WAVE (14MM)

$3.99

$

In Stock, only 2 left!

0

68

Honda 90514-ZV4-000

WASHER (10MM)

$2.99

$

In Stock, only 1 left!

0

69

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$7.49

$

Usually ships in 3-6 days

0

70

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

71

Honda 90651-ZW4-H01

E-RING

$7.49

$

Usually ships in 3-6 days

0

72

Honda 90652-ZW4-H01

E-RING

$5.49

$

Usually ships in 3-6 days

0

73

Honda 90951-ZY9-A01

BALL, STEEL

$5.49

$

Usually ships in 3-6 days

0

74

Honda 91051-ZW4-H01

BEARING

Note: Use up to Frame SN 1008177.

$4.99

$

Usually ships in 3-6 days

0

74

Honda 91051-ZW4-H02

BEARING

Note: Use from Frame SN 1008178.

$4.49

$

Usually ships in 3-6 days

0

75

Honda 91052-ZW4-H01

BEARING

$6.49

$

Usually ships in 3-6 days

0

76

Honda 91451-ZY9-A00

TUBE, CORD (40MM)

$8.99

$

Usually ships in 3-6 days

0

77

Honda 91552-ZW4-H00

COLLAR, DISTANCE (12.2X23X16)

$11.99

$

Usually ships in 3-6 days

0

78

Honda 94002-12490-0S

NUT, HEX. (12MM)

$4.49

$

Usually ships in 3-6 days

0

79

Honda 53122-ZW4-H01

ROD, GROMMET

Note: Use from Frame SN 1008178.

$23.99

$

Usually ships in 3-6 days

0

80

Honda 53123-ZW4-H01

CLAMP, BRACKET

Note: Use from Frame SN 1008178.

$22.99

$

Usually ships in 3-6 days

0

81

Honda 90105-ZW4-H02

BOLT (M6X12)

Note: Use from Frame SN 1008178.

$2.99

$

Usually ships in 3-6 days

0

82

Honda 24614-ZW4-H03

SEE PART DETAILS - PRI; LEVER, SHIFT

Note: Use from Frame SN 1008671.

$75.99

$

Usually ships in 3-6 days

0

83

Honda 91304-HP5-601

O-RING (20.6X1.9)

Note: Use from Frame SN 1008671.

$4.99

$

Usually ships in 3-6 days

0
