BF90 DK0 XRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1000001 - BBCJ-9999999) ALTERNATOR Parts Diagram
Marine Engine, Made in Japan

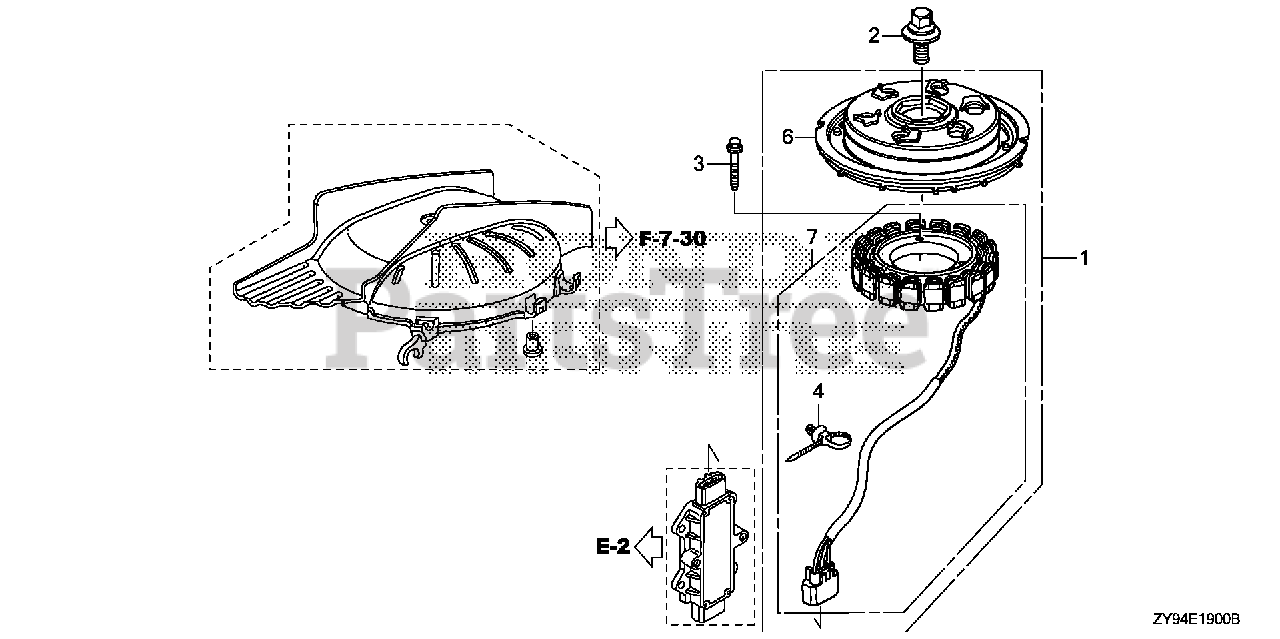

ALTERNATOR Parts Diagram
Honda 31630-ZY9-003
ALTERNATOR ASSY.
$1503.99
$
Usually ships in 3-6 days
Honda 90017-PWA-G02
BOLT-WASHER (14X36)
$39.99
$
Usually ships in 3-6 days
Honda 90123-ZV0-010
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (CT200)
(Superseded to 90023-ZY9-M01)
$2.49
$
Usually ships in 3-6 days
Honda 91540-S0A-003
CLIP, HARNESS BAND (96.9MM) (NATURAL)
$9.49
$
Usually ships in 3-6 days
Honda 31631-ZY9-003
ROTOR
$413.99
$
Usually ships in 3-6 days
Honda 31632-ZY9-003
STATOR
$642.99
$
Usually ships in 3-6 days
