BF90 DK2 LRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1100001 - 1199999) CYLINDER HEAD Parts Diagram

Marine Engine, Made in Japan

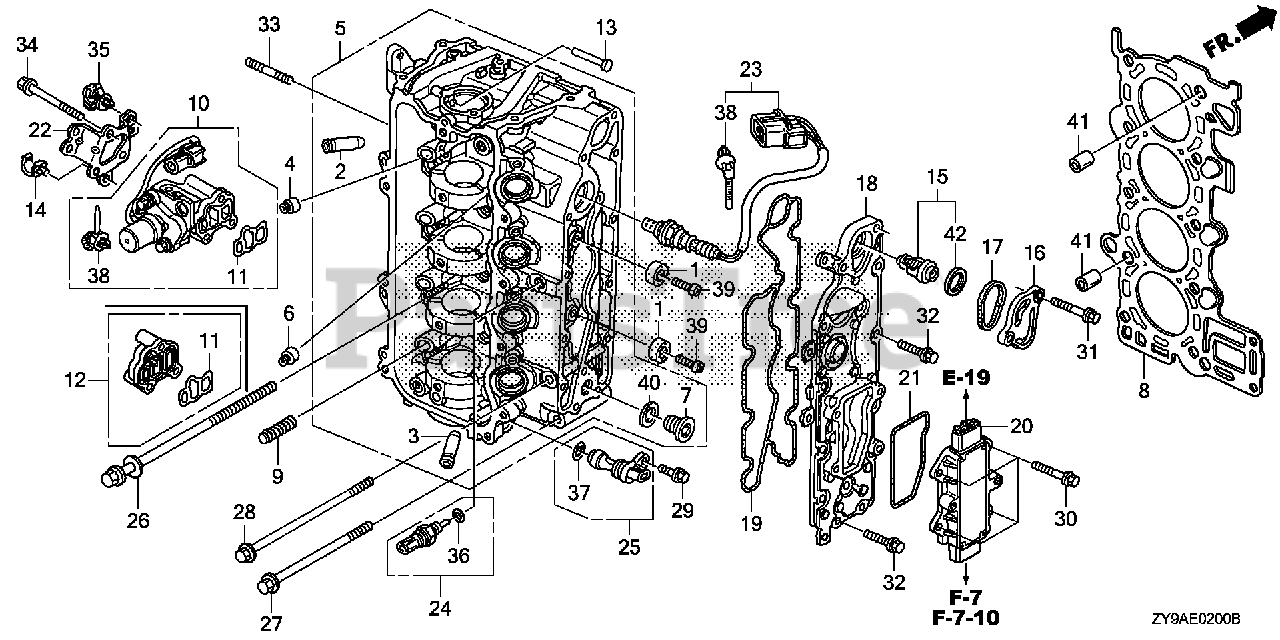

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

2

Honda 12204-PJ7-305

GUIDE, VALVE (OVER SIZE)

$22.99

$

Usually ships in 3-6 days

0

3

Honda 12205-PJ7-305

GUIDE, EX. VALVE (OVER SIZE)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 12210-PZ1-004

SEE PART DETAILS - PRI; SEAL A, VALVE STEM (NOK)

$3.49

$

In Stock, Qty 5

0

5

Honda 12210-ZY9-000ZA

CYLINDER HEAD *NH8* (DARK GRAY)

$1902.99

$

Usually ships in 3-6 days

0

6

Honda 12211-PZ1-004

SEE PART DETAILS - PRI; SEAL B, VALVE STEM (NOK)

$3.49

$

In Stock, Qty 5

0

7

Honda 12217-ZW1-010

SEE PART DETAILS - PRI; BOLT, SEALING (20MM)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 12251-ZY9-013

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$122.99

$

Usually ships in 3-6 days

0

9

Honda 14820-PZA-013

SEE PART DETAILS - PRI; MOTION, LOST

$26.99

$

Usually ships in 3-6 days

0

10

Honda 15810-ZZ0-003ZA

VALVE ASSY., SPOOL *NH8* (DARK GRAY)

$362.99

$

Usually ships in 3-6 days

0

11

Honda 15815-RAA-A02

FILTER ASSY., SPOOL VALVE

$8.99

$

Usually ships in 3-6 days

0

13

Honda 16717-ZY9-000

LIFTER, FUEL PUMP

$16.99

$

Usually ships in 3-6 days

0

14

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

15

Honda 19300-ZY6-003

THERMOSTAT ASSY.

$47.99

$

Usually ships in 3-6 days

0

16

Honda 19315-ZW9-000

COVER, THERMOSTAT

$14.99

$

Usually ships in 3-6 days

0

17

Honda 19317-ZW9-000

O-RING, THERMOSTAT COVER

$6.99

$

In Stock, only 1 left!

0

18

Honda 19361-ZY9-010

COVER, WATER JACKET

$201.99

$

Usually ships in 3-6 days

0

19

Honda 19371-ZY9-000

GASKET, EX. WATER JACKET COVER

$18.99

$

Usually ships in 3-6 days

0

20

Honda 31750-ZY9-003

RECTIFIER ASSY., REGULATOR

$225.99

$

Usually ships in 3-6 days

0

21

Honda 31754-ZY9-000

GASKET, REGULATOR

$8.49

$

Usually ships in 3-6 days

0

22

Honda 32114-ZY9-000

BRACKET D, HARNESS CLIP

$11.99

$

Usually ships in 3-6 days

0

23

Honda 35655-ZY9-003

SENSOR, OXYGEN

$414.99

$

Usually ships in 3-6 days

0

24

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$28.99

$

In Stock, only 1 left!

0

25

Honda 35695-ZY9-003

SENSOR ASSY., TDC

$114.99

$

Usually ships in 3-6 days

0

26

Honda 90008-PWA-003

BOLT-WASHER (9X155)

$11.99

$

Usually ships in 3-6 days

0

27

Honda 90011-ZY9-M00

BOLT, FLANGE (8X95)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 90011-ZY9-000

BOLT, FLANGE (8X95)
(Superseded to 90011-ZY9-M00)

$3.99

$

Usually ships in 3-6 days

0

28

Honda 90016-ZY9-000

BOLT, FLANGE (8X110)
(Superseded to 90016-ZY9-M00)

$3.99

$

Usually ships in 3-6 days

0

29

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90047-ZY6-000

BOLT, STUD (8X32)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90147-ZW4-000

BOLT, FLANGE (6X55)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

$3.99

$

Usually ships in 3-6 days

0

36

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

37

Honda 91333-PNA-003

O-RING (15X1.9)

$3.99

$

Usually ships in 3-6 days

0

38

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

39

Honda 93500-06018-4J

SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, Qty 10

0

41

Honda 94301-14200

SEE PART DETAILS - PRI; PIN A, DOWEL (14X20)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 19303-ZW9-003

RUBBER, RING

$6.99

$

In Stock, only 1 left!

0
