BF90 DK5 XRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1400001 - BBCJ-9999999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

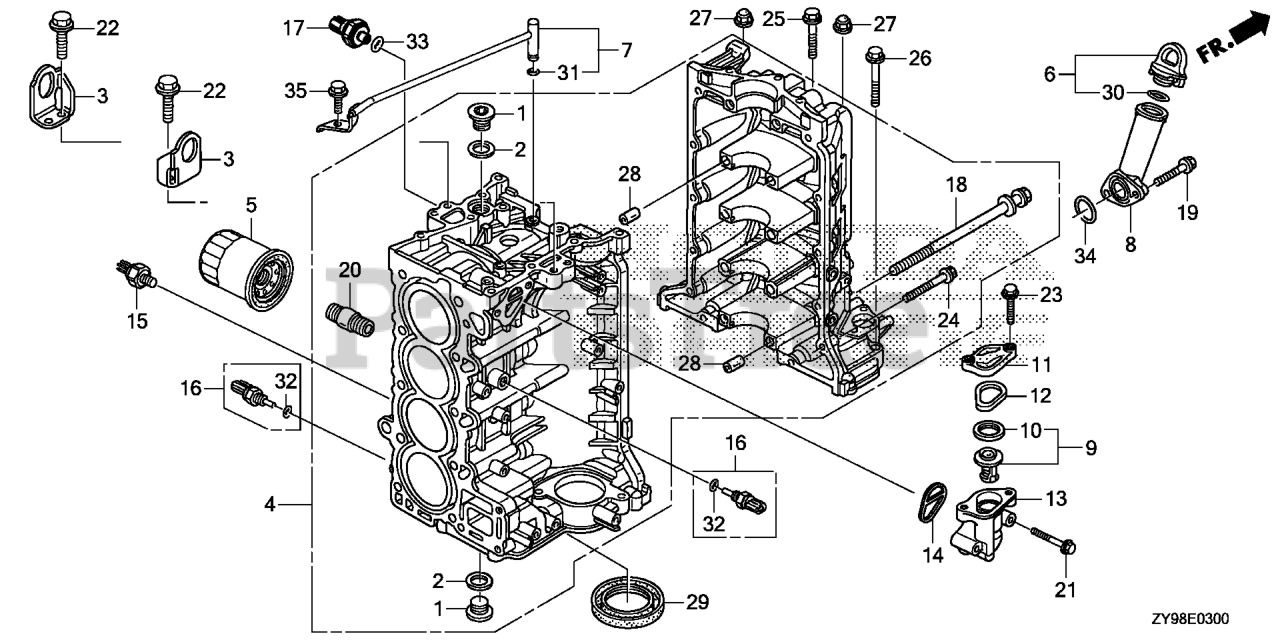

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11106-PWA-300

BOLT, SEALING (24MM)

$12.99

$

Usually ships in 3-6 days

0

2

Honda 11107-PWA-300

WASHER, SEALING (24MM)

$4.49

$

Usually ships in 3-6 days

0

3

Honda 11911-ZY9-010

HANGER, ENGINE

$26.99

$

Usually ships in 3-6 days

0

4

Honda 12000-ZY9-437ZA

BLOCK (M000) *NH8*

$2347.99

$

Usually ships in 3-6 days

0

5

Honda 15400-PLM-A01

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PLM-A02)

Note: Use up to Engine SN 1301780.

$12.99

$

In Stock, Qty 5

0

5

Honda 15400-PLM-A02

FILTER, OIL (HONEYWELL) (SOLD IN MULTIPLES OF 30)

Note: Use up to Engine SN 1301780.

$12.99

$

In Stock, Qty 5

0

5

Honda 15400-PLM-A02PE

FILTER, OIL

$14.99

$

In Stock, Qty 12

0

5

Honda 15400-RTA-003

FILTER, OIL
(Superseded to 15400-PLM-A01)

Note: Use from Engine SN 1301781.

$12.99

$

Usually ships in 3-6 days

0

6

Honda 15600-ZY9-M00

CAP ASSY., OIL FILLER

$14.99

$

Usually ships in 3-6 days

0

7

Honda 15612-ZY9-000

PIPE, OIL

$91.99

$

Usually ships in 3-6 days

0

8

Honda 15631-ZY9-000

EXTENSION, OIL FILLER

$45.99

$

Usually ships in 3-6 days

0

9

Honda 19300-ZW9-003

THERMOSTAT ASSY.

$65.99

$

In Stock, only 2 left!

0

10

Honda 19303-ZW9-003

RUBBER, RING

$8.49

$

In Stock, only 2 left!

0

11

Honda 19315-ZW9-000

COVER, THERMOSTAT

Note: Use up to Engine SN 1309058.

$16.99

$

In Stock, only 2 left!

0

11

Honda 19315-ZY9-M00

COVER THERMOSTAT

Note: Use from Engine SN 1309059.

$22.99

$

Usually ships in 3-6 days

0

12

Honda 19317-ZW9-000

O-RING, THERMOSTAT COVER

$7.99

$

In Stock, only 2 left!

0

13

Honda 19330-ZY9-M01

CASE, THERMOSTAT

$40.99

$

Usually ships in 3-6 days

0

14

Honda 19331-ZY9-M01

PKG, THERMOSTAT CASE

$5.99

$

Usually ships in 3-6 days

0

15

Honda 30530-RGA-004

SENSOR, KNOCK

$194.99

$

Usually ships in 3-6 days

0

16

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$34.99

$

Usually ships in 3-6 days

0

17

Honda 37260-RNA-A01

SENSOR, OIL PRESSURE

$493.99

$

Usually ships in 3-6 days

0

18

Honda 90008-ZY9-003

BOLT-WASHER (10X105)

$8.49

$

Usually ships in 3-6 days

0

18

Honda 90008-ZY9-023

BOLT-WASHER (10X105)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 90014-ZZ5-M00

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90014-ZZ5-M01

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90015-PH1-013

HOLDER, OIL FILTER

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90020-ZY9-M00

BOLT, FLANGE (6X45)

Note: Use up to Engine SN 1306449.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90020-ZY9-M01

BOLT, FLANGE (6X45)

Note: Use from Engine SN 1306450.

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90026-ZY9-M00

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90026-ZY9-M01

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90030-ZZ5-M01

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90032-ZZ5-M00

BOLT, FLANGE (6X32)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90032-ZZ5-M01

BOLT, FLANGE (6X32)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90054-ZY9-M00

BOLT, FLANGE (8X35)

Note: Use up to Engine SN 1306497.

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90054-ZY9-M01

BOLT, FLANGE (8X35)

Note: Use from Engine SN 1306498.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90120-HW1-671

BOLT, FLANGE (8X45)

$7.99

$

Usually ships in 3-6 days

0

27

Honda 90201-ZY9-M00

NUT, FLANGE CAP (8MM)

Note: Use up to Engine SN 1306449.

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90201-ZY9-M01

NUT (8MM)

Note: Use from Engine SN 1306450.

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90701-PD2-000

PIN, DOWEL (12X14)

$10.99

$

Usually ships in 3-6 days

0

29

Honda 91214-PNA-014

OIL SEAL (80X98X10)
(Superseded to 91214-RNB-A01)

$26.99

$

Usually ships in 3-6 days

0

30

Honda 91302-MAL-601

O-RING (18.1X3.6)

$5.49

$

Usually ships in 3-6 days

0

31

Honda 91305-ZY6-003

O-RING (6.5X1.5)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 91307-PNA-003

O-RING (9.5X1.9)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 91319-PR3-003

O-RING (13X1.5) (ARAI)

$6.99

$

Usually ships in 3-6 days

0

34

Honda 91324-PF4-004

O-RING (28.3X2.4) (NOK)

$5.49

$

Usually ships in 3-6 days

0

35

Honda 96300-06014-09

BOLT, FLANGE (6X14)

$1.99

$

Usually ships in 3-6 days

0
