BF90 DK5 XRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1400001 - BBCJ-9999999) MAINTENANCE KIT (200) Parts Diagram

Marine Engine, Made in Japan

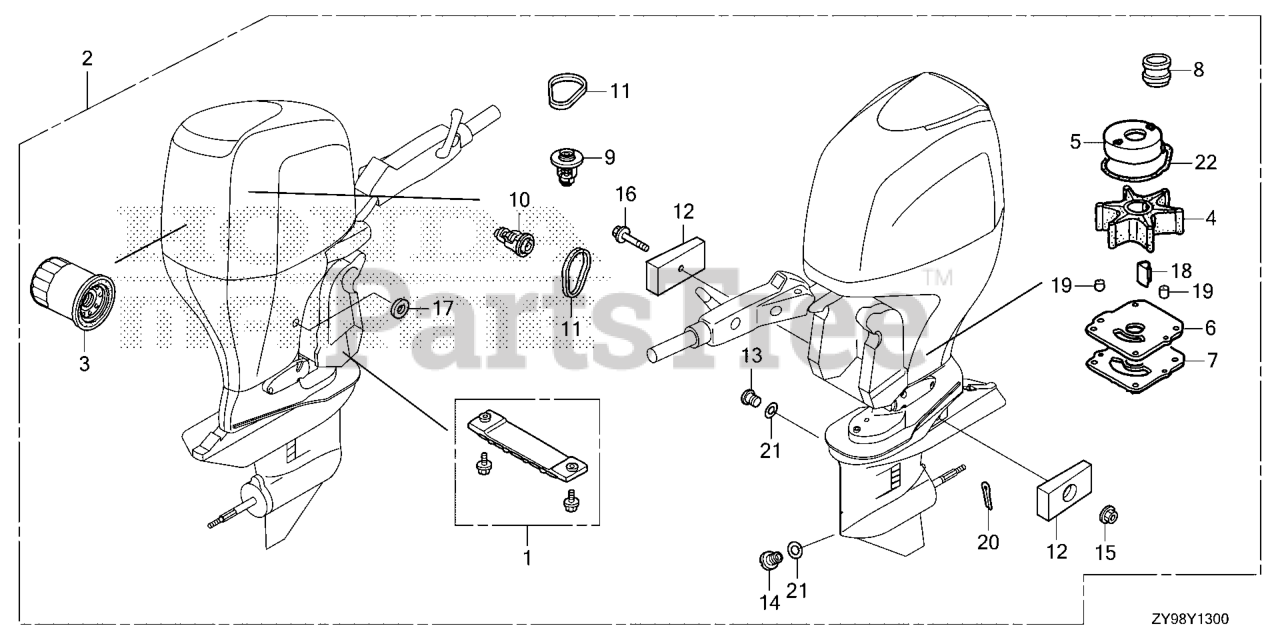

MAINTENANCE KIT (200) Parts Diagram

  • Title

1

Honda 06411-ZW1-020

SEE PART DETAILS - PRI; METAL KIT, ANODE Use from Frame SN 4800343.

Note: (Optional)

$65.99

$

Usually ships in 3-6 days

0

2

Honda 06510-ZY9-010

KIT (200)

Note: (Optional)

$199.99

$

Usually ships in 3-6 days

0

3

Honda 15400-RTA-003

FILTER, OIL
(Superseded to 15400-PLM-A01)

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

4

Honda 19210-ZY9-H01

IMPELLER, PUMP

Note: (Optional)

$48.99

$

Usually ships in 3-6 days

0

5

Honda 19223-ZY9-H00

LINER, PUMP

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0

6

Honda 19231-ZY9-H01

COVER, IMPELLER

Note: (Optional)

$21.99

$

Usually ships in 3-6 days

0

7

Honda 19234-ZW1-B00

GASKET B, IMPELLER

Note: (Optional)

$14.99

$

In Stock, only 1 left!

0

8

Honda 19253-ZW1-B01

SEE PART DETAILS - PRI; RING, WATER TUBE SEAL

Note: (Optional)

$8.99

$

In Stock, only 2 left!

0

9

Honda 19300-ZW9-003

THERMOSTAT ASSY.

Note: (Optional)

$65.99

$

In Stock, only 2 left!

0

10

Honda 19300-ZY6-003

THERMOSTAT ASSY.

Note: (Optional)

$57.99

$

In Stock, only 1 left!

0

11

Honda 19317-ZW9-000

O-RING, THERMOSTAT COVER

Note: (Optional)

$7.99

$

In Stock, only 2 left!

0

12

Honda 41109-ZW1-B00

METAL, ANODE

Note: (Optional)

$27.99

$

Usually ships in 3-6 days

0

13

Honda 90101-ZW9-003

BOLT, OIL CHECK

Note: (Optional)

$4.49

$

In Stock, only 2 left!

0

14

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

Note: (Optional)

$21.99

$

In Stock, only 2 left!

0

15

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90225-HW1-670

BOLT, FLANGE (6X35)

Note: (Optional)

$3.49

$

In Stock, only 1 left!

0

17

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

Note: (Optional)

$3.99

$

In Stock, only 1 left!

0

18

Honda 90752-ZW1-B02

KEY, WOODRUFF

Note: (Optional)

$19.99

$

Usually ships in 3-6 days

0

19

Honda 90756-ZVL-000

PIN, DOWEL (6X10)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

Note: (Optional)

$2.99

$

In Stock, only 3 left!

0

21

Honda 91301-ZW4-003

O-RING (6.9X1.45)

Note: (Optional)

$1.99

$

In Stock, Qty 20+

0

22

Honda 91356-ZW1-B00

O-RING, WATER PUMP

Note: (Optional)

$12.99

$

In Stock, only 2 left!

0
