BFP60 A LRTB (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-8000001 - BBFJ-9999999) INLET MANIFOLD + INJECTOR Parts Diagram

Marine Engine, Made in Japan

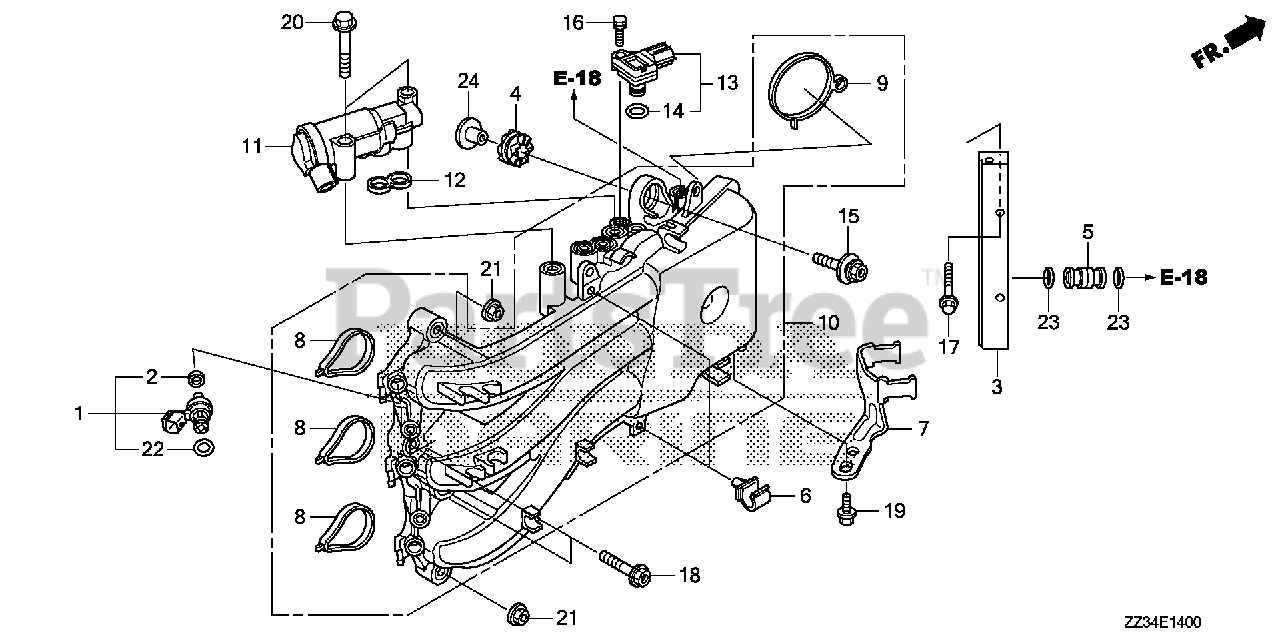

INLET MANIFOLD + INJECTOR Parts Diagram

  • Title

1

Honda 16450-ZZ3-003

INJECTOR ASSY., FUEL

$136.99

$

Usually ships in 3-6 days

0

2

Honda 16472-KPC-D50

RING, SEAL

$3.49

$

In Stock, only 2 left!

0

3

Honda 16620-ZZ5-010

LINE, FUEL

$187.99

$

Usually ships in 3-6 days

0

4

Honda 16733-ZW5-000

GROMMET, VAPOR SEPARATOR

$10.99

$

Usually ships in 3-6 days

0

5

Honda 16752-ZY3-A00

JOINT, FUEL PIPE

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16914-ZZ3-000

STAY, FUEL STRAINER

$13.99

$

Usually ships in 3-6 days

0

8

Honda 17105-ZZ3-000

GASKET, IN. MANIFOLD

$16.99

$

Usually ships in 3-6 days

0

9

Honda 17107-ZZ5-003

GASKET, THROTTLE BODY

$20.99

$

Usually ships in 3-6 days

0

10

Honda 17110-ZZ3-003

MANIFOLD, INLET

$1120.99

$

Usually ships in 3-6 days

0

11

Honda 36550-ZZ5-003

VALVE ASSY., ELECTRONIC AIR CONTROL

$280.99

$

Usually ships in 3-6 days

0

12

Honda 36551-ZY6-003

GASKET, ELECTRONIC AIR CONTROL VALVE

$16.99

$

Usually ships in 3-6 days

0

13

Honda 37830-RNA-A01

SENSOR ASSY., MAP

$134.99

$

Usually ships in 3-6 days

0

14

Honda 37835-PGK-A01

O-RING

$13.99

$

Usually ships in 3-6 days

0

15

Honda 90014-ZW1-000

BOLT-WASHER (8X35)
(Superseded to 90014-ZY9-M01)

$4.49

$

In Stock, only 3 left!

0

16

Honda 90029-ZY3-000

BOLT-WASHER (5X18)

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90036-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)
(Superseded to 90036-ZY3-030)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90126-ZW4-000

BOLT, FLANGE (8X45)
(Superseded to 90026-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90205-ZY3-000

NUT, FLANGE (8MM)
(Superseded to 90205-ZY9-M01)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 91301-KPH-701

O-RING (7.3X2.2)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 91301-MJ0-003

O-RING (7.8X1.9) (ARAI)

$3.49

$

In Stock, only 2 left!

0

24

Honda 91554-ZW1-000

COLLAR (8.5X14.5)
(Superseded to 91504-ZY9-M03)

$8.99

$

Usually ships in 3-6 days

0
