BFP60 AK1 XRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-8100001 - BBFJ-9999999) PROPELLER SHAFT (2) Parts Diagram

Marine Engine, Made in Japan

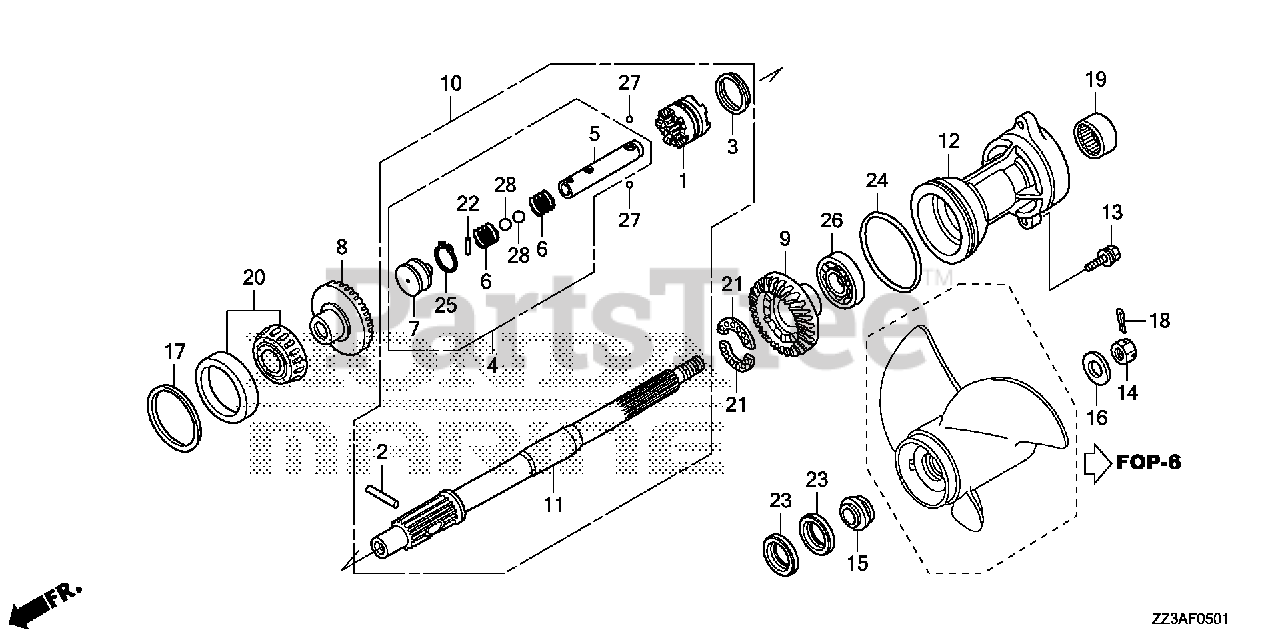

PROPELLER SHAFT (2) Parts Diagram

  • Title

1

Honda 24101-ZZ3-E00

SHIFTER, CLUTCH (POWER THRUST)

$240.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.99

$

Usually ships in 3-6 days

0

4

Honda 24113-ZZ3-E00

SLIDER, SHIFT (POWER THRUST)

$118.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZZ3-E00

SLIDER, SHIFT (POWER THRUST)

$88.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZZ3-E00

SPRING, SHIFT (POWER THRUST)

$7.49

$

Usually ships in 3-6 days

0

7

Honda 24124-ZZ0-000

PLATE, SHIFT

$27.99

$

Usually ships in 3-6 days

0

8

Honda 41140-ZZ3-E00

GEAR, FR. BEVEL (28T) (POWER THRUST)

$558.99

$

Usually ships in 3-6 days

0

9

Honda 41151-ZZ3-E00

GEAR, RR. BEVEL (28T) (POWER THRUST)

$502.99

$

Usually ships in 3-6 days

0

10

Honda 41160-ZZ3-E00

SHAFT ASSY., PROPELLER (POWER THRUST)

$731.99

$

Usually ships in 3-6 days

0

11

Honda 41161-ZZ3-E00

SHAFT, PROPELLER (POWER THRUST)

$507.99

$

Usually ships in 3-6 days

0

12

Honda 41201-ZW1-B02ZC

HOLDER, PROPELLER SHAFT *NHB14M* (AQUA MARINE SILVER METALLIC)

$213.99

$

Usually ships in 3-6 days

0

13

Honda 90123-ZY6-000

BOLT-WASHER (10X40)

$9.99

$

Usually ships in 3-6 days

0

14

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$17.99

$

In Stock, only 2 left!

0

15

Honda 90506-ZW1-B00

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ0-C00)

$78.99

$

Usually ships in 3-6 days

0

15

Honda 90506-ZZ0-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$78.99

$

Usually ships in 3-6 days

0

16

Honda 90508-ZW1-B00

WASHER, PLAIN (18.5MM)

$16.99

$

Usually ships in 3-6 days

0

17

Honda 90528-ZW1-B00

SHIM A, BEVEL (0.10) (FR)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90529-ZW1-B00

SHIM B, BEVEL (0.15) (FR)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90530-ZW1-B00

SHIM C, BEVEL (0.30) (FR)

$24.99

$

Usually ships in 3-6 days

0

17

Honda 90531-ZW1-B00

SHIM D, BEVEL (0.50) (FR)

$26.99

$

Usually ships in 3-6 days

0

18

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

In Stock, only 3 left!

0

19

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

$42.99

$

Usually ships in 3-6 days

0

20

Honda 91051-ZW1-B02

BEARING, TAPERED ROLLER (50X82X21.5)

$109.99

$

Usually ships in 3-6 days

0

21

Honda 91054-ZW5-003

BEARING, BALL (28X38X3)

$38.99

$

Usually ships in 3-6 days

0

22

Honda 91101-ZW1-003

ROLLER (3X12.8)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 91252-ZZ3-003

SEAL, WATER (30X45X7)

$10.99

$

Usually ships in 3-6 days

0

24

Honda 91351-ZW1-B02

O-RING (94X4.1)

$9.99

$

In Stock, only 2 left!

0

25

Honda 94510-14000

CIRCLIP, OUTER (14MM)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 96100-62080-00

BEARING, RADIAL BALL (6208)

$43.99

$

Usually ships in 3-6 days

0

27

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.99

$

Usually ships in 3-6 days

0
