BFP8 DK0 LRTA (BAAJ) - Honda Outboard Engine, Made in Japan (SN: BAAJ-1600001 - BAAJ-9999999) STERN BRACKET (2) Parts Diagram

Outboard Engine, Made in Japan

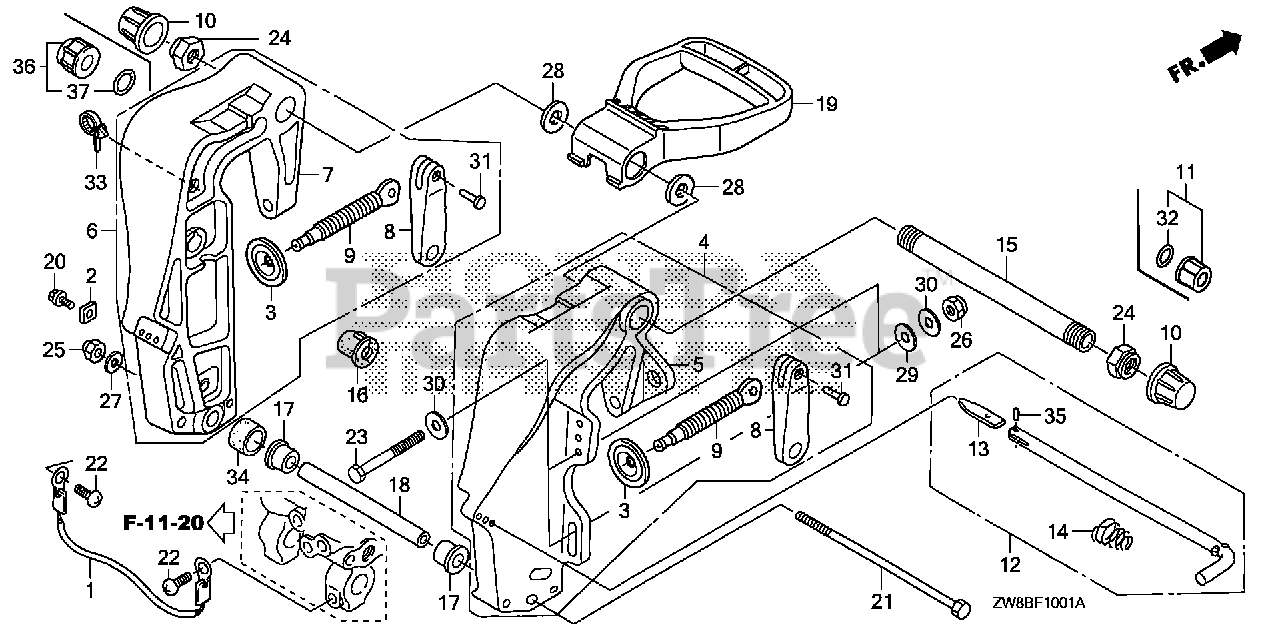

STERN BRACKET (2) Parts Diagram

  • Title

1

Honda 40219-ZY1-013

WIRE, LEAD (1.5X170MM)
(Superseded to 40219-ZY1-023)

$14.99

$

Usually ships in 3-6 days

0

2

Honda 41106-ZW9-000

METAL, ANODE

$13.99

$

In Stock, only 2 left!

0

5

Honda 50301-ZY1-872ZA

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$399.99

$

Usually ships in 3-6 days

0

7

Honda 50311-ZY1-872ZA

BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use up to Frame SN 1600298.

$

$

Not available

7

Honda 50311-ZY1-873ZA

BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use from Frame SN 1600299.

$366.99

$

Usually ships in 3-6 days

0

10

Honda 50331-ZV5-000

CAP, TILTING BOLT

Note: Use up to Frame SN 1602830.

$8.99

$

In Stock, only 2 left!

0

11

Honda 50335-ZV5-000

CAP ASSY.

$13.99

$

Usually ships in 3-6 days

0

12

Honda 50340-ZY1-871

SEE PART DETAILS - PRI; ROD, ADJUSTING

$38.99

$

In Stock, only 1 left!

0

13

Honda 50342-ZV5-300

STOPPER, ROD

$7.99

$

Usually ships in 3-6 days

0

14

Honda 50343-921-300

SPRING, ADJUSTING ROD

$4.99

$

Usually ships in 3-6 days

0

15

Honda 50381-ZZ5-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$116.99

$

In Stock, only 1 left!

0

16

Honda 56118-ZV5-820

BUSH, MOTOR CODE

$12.99

$

Usually ships in 3-6 days

0

17

Honda 56513-ZV5-000

BUSH, CYLINDER (LOWER)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 56539-ZY1-870

COLLAR, CYLINDER (LOWER)

$92.99

$

Usually ships in 3-6 days

0

19

Honda 68111-ZW9-831

HANDLE, CARRYING REMOTE

$39.99

$

Usually ships in 3-6 days

0

20

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90108-ZY1-870

BOLT, HEX. (8X203)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90129-ZV7-000

BOLT, HEX. (10X100)

$27.99

$

Usually ships in 3-6 days

0

24

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$26.99

$

Usually ships in 3-6 days

0

25

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

$6.99

$

In Stock, only 1 left!

0

26

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$5.49

$

In Stock, only 2 left!

0

27

Honda 90507-ZV4-000

WASHER, PLAIN (8MM) Use up to Frame SN 4800712.

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90517-ZV5-000

WASHER, WAVE (22MM)

$8.49

$

Usually ships in 3-6 days

0

29

Honda 90552-ZV7-000

WASHER, PLAIN (10MM)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

32

Honda 91352-ZV5-000

O-RING (15.54X2.26)

$2.99

$

Usually ships in 3-6 days

0

33

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.99

$

In Stock, only 1 left!

0

34

Honda 91599-ZY1-870

COLLAR, DISTANCE

$9.99

$

Usually ships in 3-6 days

0

35

Honda 94305-25083

PIN, SPRING (2.5X8)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 50335-ZV5-000

CAP ASSY.

Note: Use from Frame SN 1602831.

$13.99

$

Usually ships in 3-6 days

0

37

Honda 91352-ZV5-000

O-RING (15.54X2.26)

Note: Use from Frame SN 1602831.

$2.99

$

Usually ships in 3-6 days

0
