BFP8 DK3 LHTA (BAAJ) - Honda Outboard Engine, Made in Japan (SN: BAAJ-1800001 - BAAJ-9999999) GEAR CASE@EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

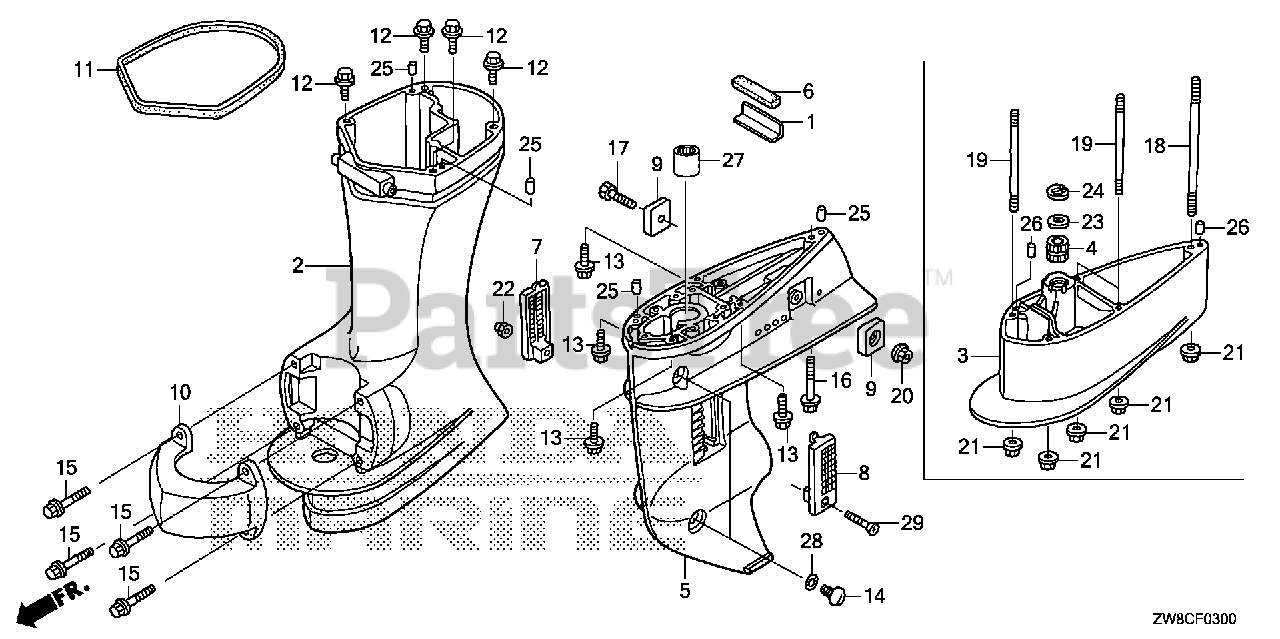

GEAR CASE@EXTENSION CASE Parts Diagram

  • Title

1

Honda 19286-ZY1-000

PLATE, RUBBER SETTING

$4.49

$

Usually ships in 3-6 days

0

2

Honda 40201-ZW9-C10ZB

CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 1800065.

$709.99

$

Usually ships in 3-6 days

0

2

Honda 40201-ZW9-631ZB

CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

Note: Use up to Frame SN 1800064.

$584.99

$

Usually ships in 3-6 days

0

5

Honda 41101-ZW9-C00ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$520.99

$

Usually ships in 3-6 days

0

6

Honda 41102-ZY1-000

GROMMET, GEAR CASE

$8.99

$

Usually ships in 3-6 days

0

7

Honda 41104-ZV5-010

SCREEN, R WATER

$8.99

$

Usually ships in 3-6 days

0

8

Honda 41105-ZV5-010

SCREEN, L. WATER

$8.99

$

Usually ships in 3-6 days

0

9

Honda 41106-ZW9-000

METAL, ANODE

$13.99

$

In Stock, only 2 left!

0

10

Honda 50111-ZW9-000ZB

HOUSING, MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$72.99

$

Usually ships in 3-6 days

0

11

Honda 63702-ZW9-000

RUBBER, COVER (LOWER)

$9.99

$

In Stock, only 1 left!

0

12

Honda 90008-ZW9-000

BOLT, FLANGE (8X35) Use from Frame SN 4800713.

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90009-ZW9-000

BOLT, FLANGE (6X23) Use from Frame SN 4800343.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90101-ZW9-003

BOLT, OIL CHECK

$4.49

$

In Stock, only 2 left!

0

15

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90107-ZW9-000

BOLT, FLANGE (6X75)

$7.49

$

Usually ships in 3-6 days

0

17

Honda 90113-ZV5-000

BOLT, HEX. (6X25) Use up to Frame SN 4800342.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$7.49

$

Usually ships in 3-6 days

0

25

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$4.49

$

In Stock, only 2 left!

0

27

Honda 91554-ZW9-C01

BUSH, PINION GEAR

$43.99

$

Usually ships in 3-6 days

0

28

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.99

$

In Stock, only 4 left!

0

29

Honda 93700-05028-4J

SCREW, OVAL (5X28)

$3.99

$

Usually ships in 3-6 days

0
