BFP8 DK3 XHSA (BAAJ) - Honda Outboard Engine, Made in Japan (SN: BAAJ-1800001 - BAAJ-9999999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

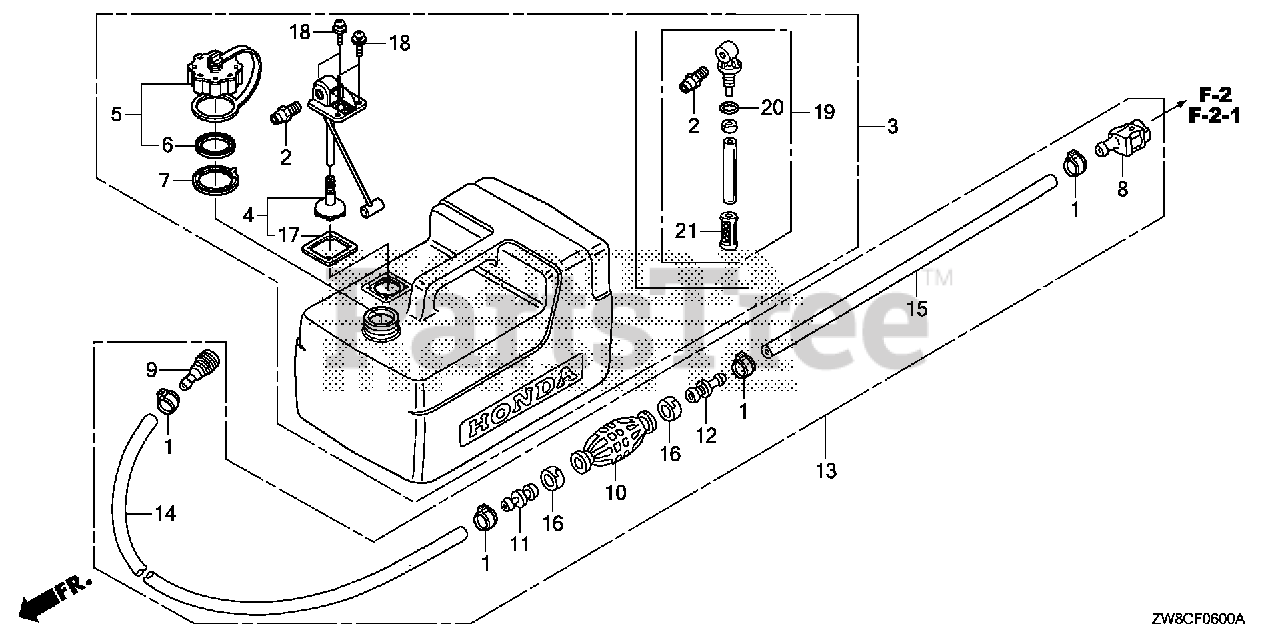

FUEL TANK Parts Diagram

  • Title

1

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0) (CONNECTOR TYPE)

$7.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT Use from Frame SN 1205705.

Note: Use from Frame SN 1802419.

$22.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT Use from Frame SN 1205705.

Note: Use up to Frame SN 1802418.

$22.99

$

Usually ships in 3-6 days

0

3

Honda 17500-ZZ5-013

TANK, FUEL (12L)

Note: Use from Frame SN 1803037.

$251.99

$

Usually ships in 3-6 days

0

4

Honda 17580-ZZ5-003

FILTER KIT, FUEL

Note: Use from Frame SN 1802419 to 1803036.

$47.99

$

Usually ships in 3-6 days

0

4

Honda 17580-ZZ5-003

FILTER KIT, FUEL

Note: Use up to Frame SN 1802418.

$47.99

$

Usually ships in 3-6 days

0

6

Honda 17624-ZZ5-003

GASKET, FUEL CAP

Note: Use from Frame SN 1802419.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 17624-ZZ5-003

GASKET, FUEL CAP

Note: Use up to Frame SN 1802418.

$4.49

$

Usually ships in 3-6 days

0

7

Honda 17625-ZZ5-003

RETAINER, PRESSURE RELIEF

Note: Use from Frame SN 1802419.

$2.49

$

Usually ships in 3-6 days

0

7

Honda 17625-ZZ5-003

RETAINER, PRESSURE RELIEF

Note: Use up to Frame SN 1802418.

$2.49

$

Usually ships in 3-6 days

0

8

Honda 17650-ZW9-023

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (A)

$54.99

$

In Stock, only 1 left!

0

9

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL (CONNECTOR TYPE)

$50.99

$

Usually ships in 3-6 days

0

10

Honda 17661-ZW9-900

BULB, PRIMER

$73.99

$

Usually ships in 3-6 days

0

11

Honda 17665-ZV5-000

VALVE, IN.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

$18.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-904

TUBE ASSY., FUEL TANK

$199.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1800350.

$147.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-904

TUBE, FUEL SHORT

$32.99

$

Usually ships in 3-6 days

0

16

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$5.99

$

Usually ships in 3-6 days

0

17

Honda 17742-ZZ5-003

GASKET, FUEL PICK-UP

Note: Use from Frame SN 1802419 to 1803036.

$6.99

$

Usually ships in 3-6 days

0

17

Honda 17742-ZZ5-003

GASKET, FUEL PICK-UP

Note: Use up to Frame SN 1802418.

$6.99

$

Usually ships in 3-6 days

0

18

Honda 17743-ZZ5-003

BOLT-WASHER (5MM) (SEAL)

Note: Use from Frame SN 1802419 to 1803036.

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17743-ZZ5-003

BOLT-WASHER (5MM) (SEAL)

Note: Use up to Frame SN 1802418.

$4.99

$

Usually ships in 3-6 days

0

19

Honda 16900-ZV4-A22

SEE PART DETAILS - PRI; JOINT ASSY., FUEL

Note: Use from Frame SN 1803037.

$42.99

$

In Stock, only 1 left!

0

20

Honda 16979-ZV5-901

SEE PART DETAILS - PRI; O-RING Use from Frame SN 1300962.

Note: Use from Frame SN 1803037.

$0.99

$

Usually ships in 3-6 days

0

21

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

Note: Use from Frame SN 1803037.

$2.99

$

In Stock, only 2 left!

0
