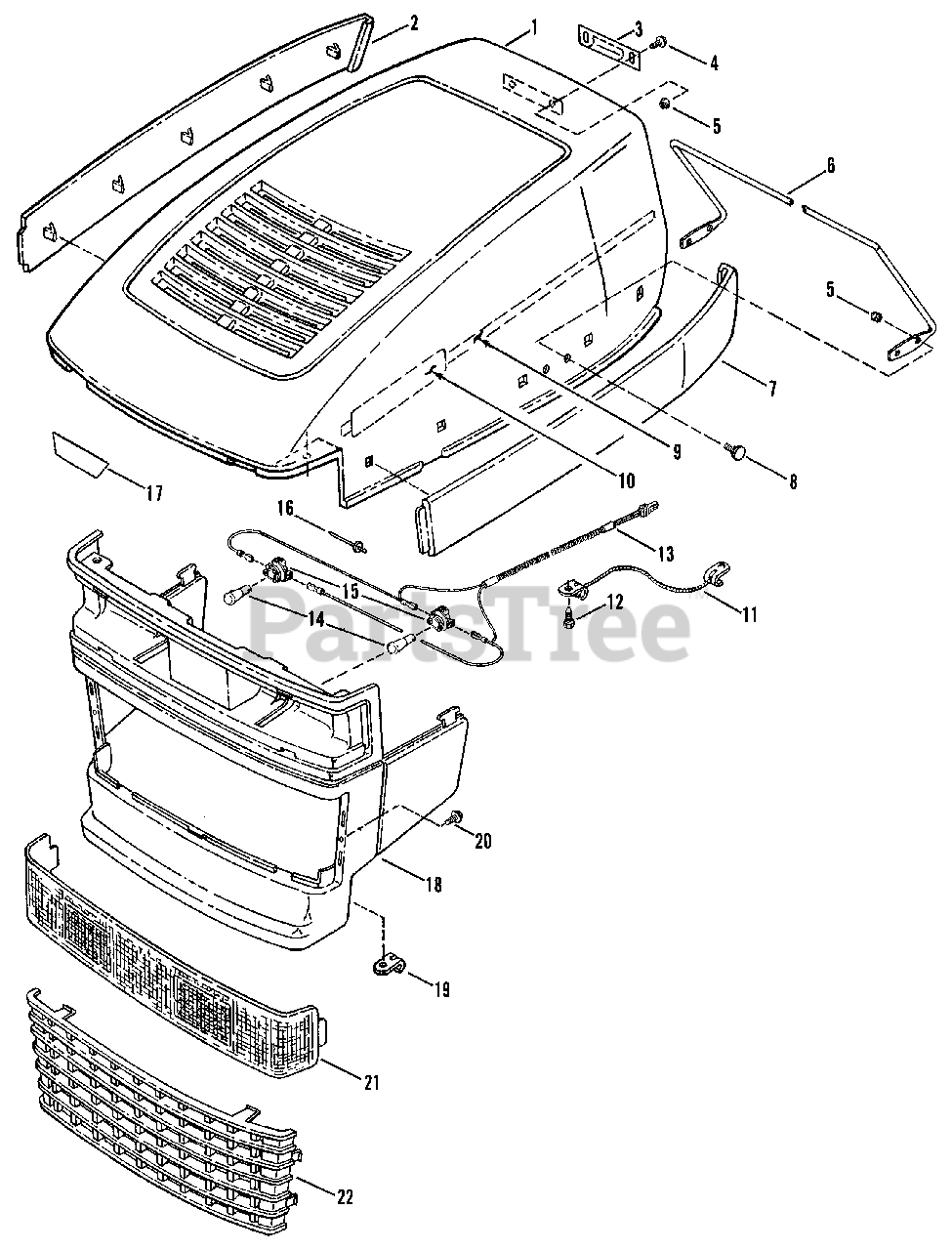

BH 120G38AB (80479) - Snapper Black Hawk 38" Lawn Tractor, 12hp Hood, Grille & Components Parts Diagram

Black Hawk 38" Lawn Tractor, 12hp

Hood, Grille & Components Parts Diagram

  • Title

1

Snapper 7053851

HOOD, Replacement
(Superseded to 7053851YP)

$435.99

$

Usually ships in 2-12 days

0

2

Snapper 7026610

PANEL, Hood, Right Side (Silver)
(Superseded to 7026610YP)

$37.99

$

Usually ships in 2-12 days

0

3

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$25.99

$

Usually ships in 2-12 days

0

4

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head
(Superseded to 7090999FS)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7016766

ROD, Hood Latch
(Superseded to 7016766YP)

$19.99

$

Usually ships in 2-12 days

0

7

Snapper 7026611

PANEL, Hood, Left Side (Silver)

$

$

Not available

8

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7026707

DECAL, Hood, Left Side

$

$

Not available

9

Snapper 7026706

DECAL, Hood, Right Side (Not shown)

$

$

Currently unavailable

10

Snapper 7026228

LOGO - BLACKHAWK

$

$

Not available

11

Snapper 7026114

LANYARD, Hood
(Superseded to 7073446YP)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00MM Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$15.99

$

In Stock, only 1 left!

0

15

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

16

Snapper 7091095

RIVET, 1/8" Pop
(Superseded to 7091095SM)

$2.99

$

In Stock, Qty 12

0

17

Snapper 7026708

DECAL, Lens (Blackhawk)
(Superseded to 7026708YP)

$13.99

$

Usually ships in 2-12 days

0

18

Snapper 7026299

GRILLE, Hood
(Superseded to 7026299YP)

$157.99

$

Usually ships in 2-12 days

0

19

Snapper 7026482

CLIP, "J"
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

20

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

Usually ships in 2-12 days

0

21

Snapper 7026301

LENS, Blackhawk

$

$

Not available

22

Snapper 7026300

INSERT, Grille

$

$

Not available
