BH 125G38BB (82356) - Snapper Black Hawk 38" Lawn Tractor, 12.5hp Engine Components Parts Diagram

Black Hawk 38" Lawn Tractor, 12.5hp

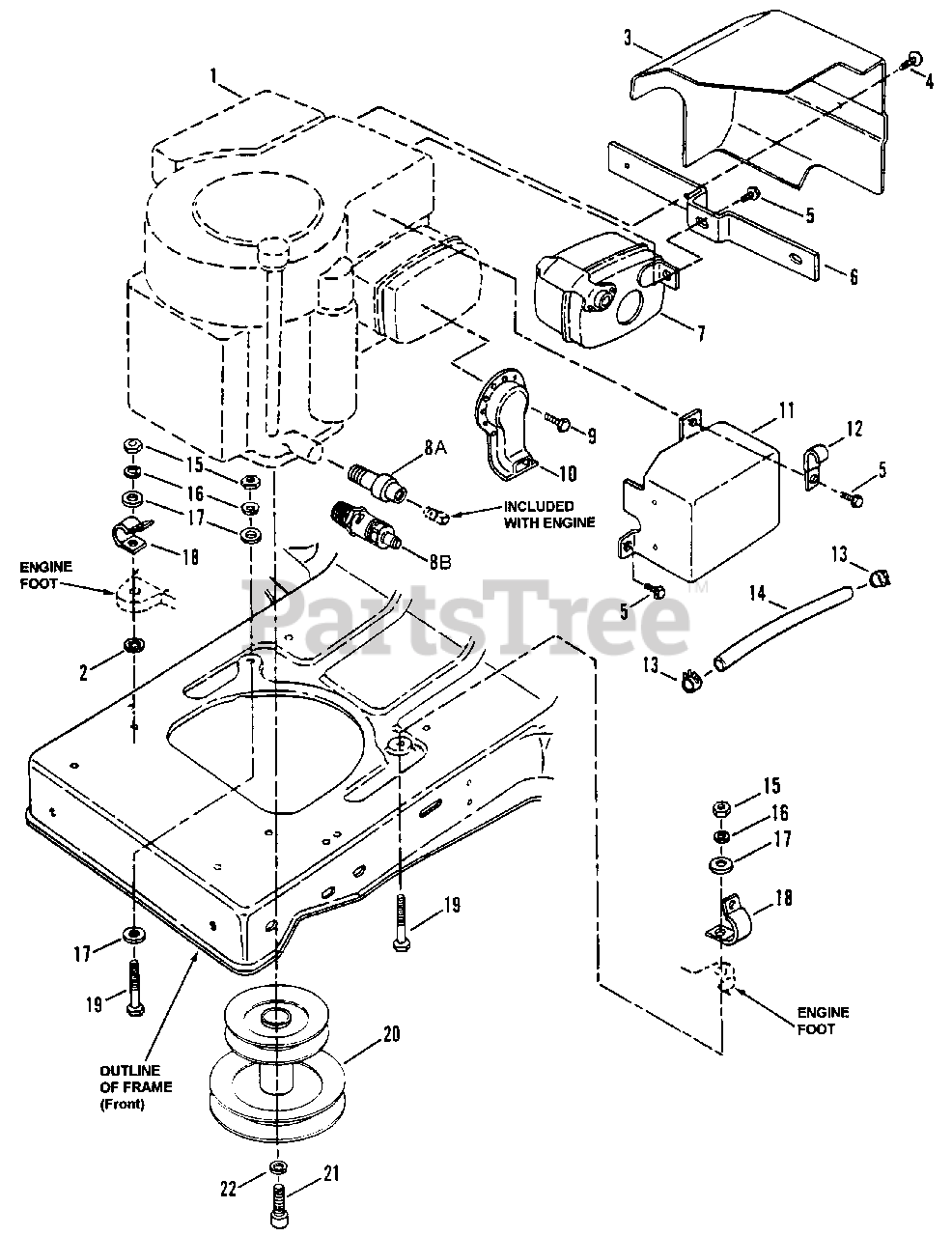

Engine Components Parts Diagram

  • Title

1

* ENGINE, B. & S. 12.5 HP I/C, 3100 RPM, Mod. 289707-0117-01

Note: (Model: BH125G38BB)

$

$

Not available

1

* ENGINE, B. & S. 14 HP OHV, Mod. 287707-0119-01

Note: (Model: BH140H38BBV)

$

$

Not available

2

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7017022

HEAT SHIELD
(Superseded to 7017022YP)

Note: (Model: BH125G38BB)

$105.99

$

Usually ships in 2-12 days

0

4

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.99

$

In Stock, only 2 left!

0

5

Snapper 7091579

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7091579SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7038374

BRACKET, Heat Shield
(Superseded to 7038374YP)

Note: (Model: BH125G38BB)

$39.99

$

Usually ships in 2-12 days

0

7

Snapper 7041824

MUFFLER, Exhaust
(Superseded to 691874)

Note: Was 52691 (Model: BH125G38BB)

$57.99

$

Usually ships in 2-12 days

0

8A

Snapper 7022486

EXTENSION, Oil Drain
(Superseded to 7022486YP)

Note: (Model: BH125G38BB)

$24.99

$

Usually ships in 2-12 days

0

8B

Snapper 7027972

EXTENSION, Oil Drain
(Superseded to 7027972SM)

Note: (Model: BH140H38BBV)

$26.99

$

In Stock, Qty 6

0

9

Snapper 7091581

SCREW, #8-18 x 1/2 Hex Head, Self-Tapping
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7041537

EXTENSION, Muffler
(Superseded to 7041537YP)

Note: (Model: BH140H38BBV)

$85.99

$

Usually ships in 2-12 days

0

11

Snapper 7041269

HEAT SHIELD, Muffler

Note: (Model: BH140H38BBV)

$

$

Not available

12

Snapper 7026482

CLIP, "J" Type
(Superseded to 7026482YP)

Note: (Model: BH140H38BBV)

$3.49

$

In Stock, only 1 left!

0

13

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 12

0

14

Snapper 7023479

LINE, Fuel, 16" Long
(Superseded to 791745)

Note: (Model: BH140H38BBV)

$11.99

$

In Stock, Qty 8

0

14

Snapper 7032015

LINE, Fuel, 7" Long
(Superseded to 791766)

Note: (Model: BH125G38BB)

$8.49

$

In Stock, Qty 19

0

15

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

16

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

17

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, Qty 10

0

18

Snapper 7015861

CLIP, Wiring Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7090669

SCREW, 5/16-18 x 1 3/4 Hex Head Cap
(Superseded to 7090669YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7024686

ASSEMBLY, Engine Pulley
(Superseded to 7024686YP)

Note: (Model: BH125638BB)

$112.99

$

In Stock, only 1 left!

0

20

Snapper 7028033

ASSEMBLY, Engine Pulley
(Superseded to 7028033YP)

Note: (Model: BH140H38BBV)

$97.99

$

Usually ships in 2-12 days

0

21

Snapper 7091531

SCREW, 7/16-20 x 1" Hex Cap, Socket Head

$

$

Not available

22

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0
