BH 125G38BB (82356) - Snapper Black Hawk 38" Lawn Tractor, 12.5hp Transmission Group & Rear Wheels Parts Diagram

Black Hawk 38" Lawn Tractor, 12.5hp

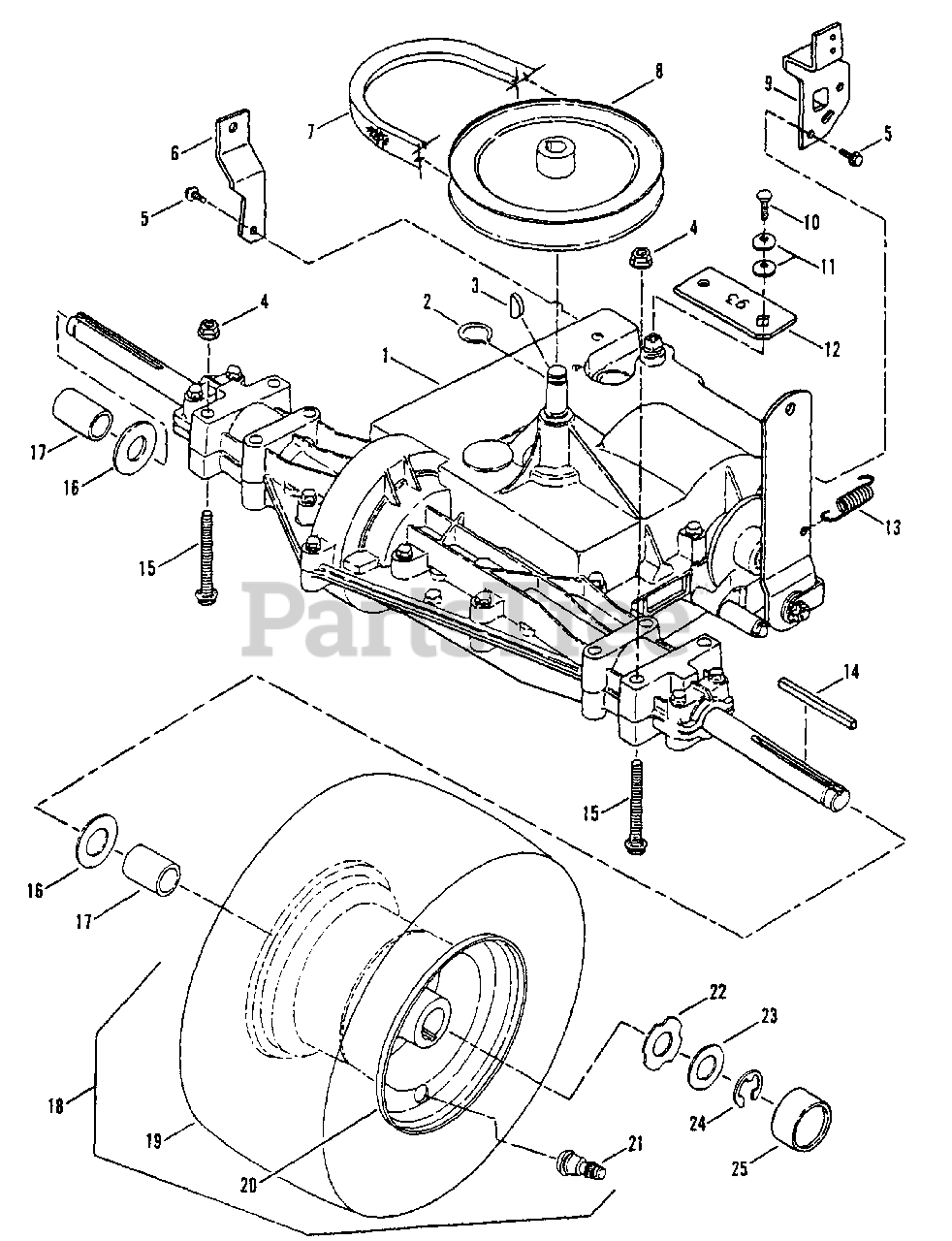

Transmission Group & Rear Wheels Parts Diagram

  • Title

1

Snapper 7028760

TRANSAXLE, Gear Drive, Peerless Model MST205-514

Note: (Vendor Part Number)

$

$

Not available

2

Snapper 7012763

RING, Retaining
(Superseded to 7012763SM)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7010211

KEY, Woodruff, 3/16 x 3/4", No. 9
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

5

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

6

Snapper 7033951

BRACKET, Torque

$

$

Not available

7

Snapper 7029641

BELT, Traction Drive 97.75" EL
(Superseded to 7029641YP)

$81.99

$

Usually ships in 2-12 days

0

8

Snapper 7024831

PULLEY, Drive
(Superseded to 7024831YP)

$65.99

$

Usually ships in 2-12 days

0

9

Snapper 7034439

BRACKET, Axle/Spool

$

$

Not available

10

Snapper 7091165

BOLT, 1/4-28 x 5/8" Hex Head
(Superseded to 7091165YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7090746

WASHER, Bellville
(Superseded to 7090746YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7033754

ARM, Shift Lift Lever
(Superseded to 7033754YP)

$51.99

$

Usually ships in 2-12 days

0

13

Snapper 7022437

SPRING, Brake Return
(Superseded to 7022437YP)

$5.49

$

In Stock, only 1 left!

0

14

Snapper 7017173

KEY, Square, 3/16 x 3/16 x 2 1/2"
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090702

BOLT, 5/16-18 x 2 1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7031036

WASHER, Flat
(Superseded to 7031036YP)

$4.49

$

In Stock, only 4 left!

0

17

Snapper 7024857

SPACER

$

$

Not available

18

Snapper 7052846

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: (Includes 19, 20, & 21)

$208.99

$

Usually ships in 2-12 days

0

19

Snapper 7072705

TIRE, 18 x 8.50
(Superseded to 7072705YP)

Note: Was 26113

$128.99

$

Usually ships in 2-12 days

0

20

Snapper 7024454

RIM, 8 x 7.00
(Superseded to 7024454YP)

$122.99

$

Usually ships in 2-12 days

0

21

Snapper 7012234

VALVE, Snap-In
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

22

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7029617

WASHER, Flat, .07 x .77 I.D. x 1.31 O.D.
(Superseded to 7029617YP)

$4.49

$

In Stock, only 2 left!

0

24

Snapper 7012705

RING, Retaining

$

$

Not available

25

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

Note: Was 26627

$4.49

$

In Stock, only 3 left!

0
