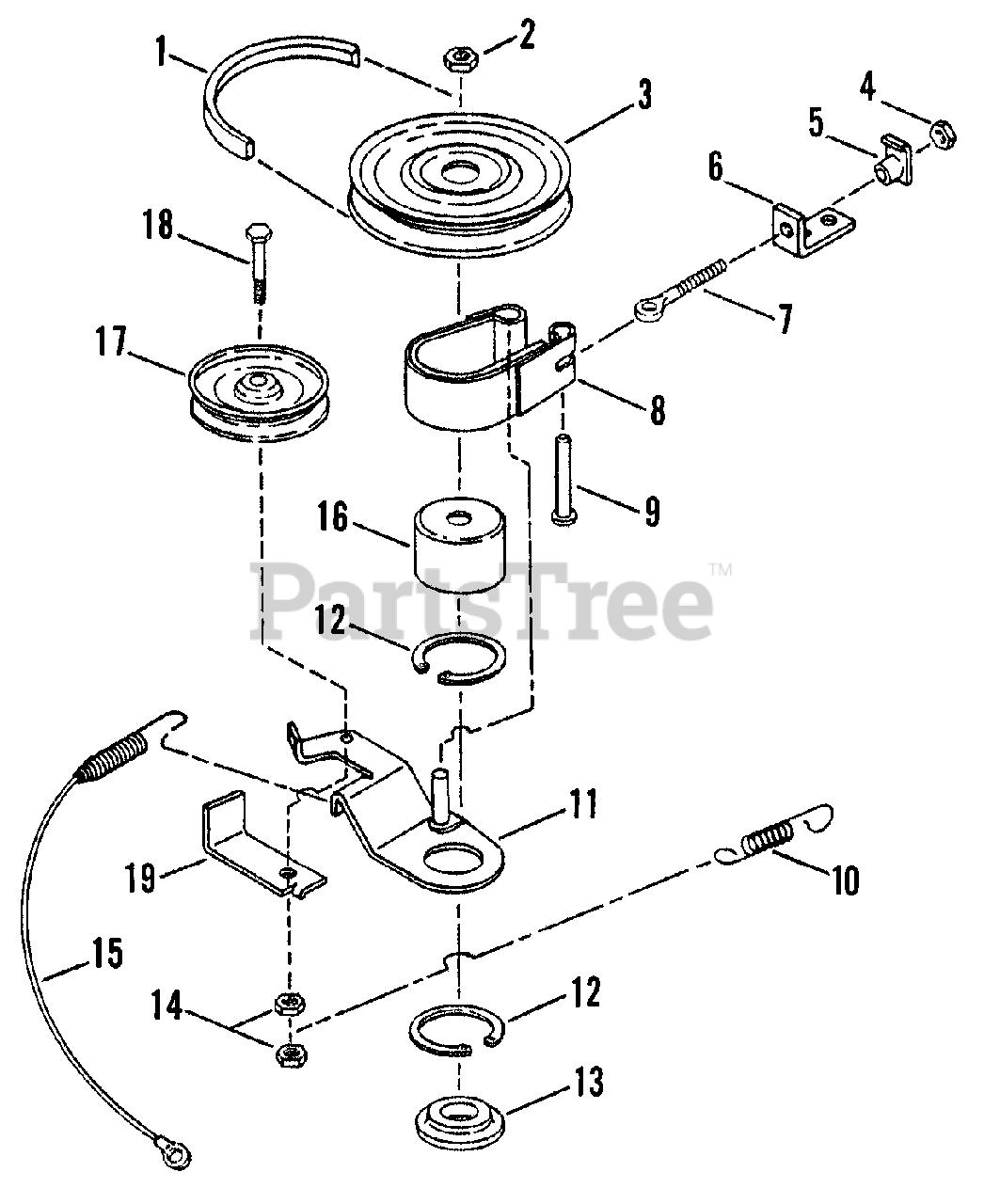

BH 140G42ABV (80480) - Snapper Black Hawk 42" Lawn Tractor, 14hp Belt, Blade Brake, 42" Cutting Deck Parts Diagram

Black Hawk 42" Lawn Tractor, 14hp

Belt, Blade Brake, 42" Cutting Deck Parts Diagram

  • Title

1

Snapper 7014799

BELT, Drive 103.1" EL
(Superseded to 7014799YP)

Note: ('93 Model Year & Earlier)

$61.99

$

Usually ships in 2-12 days

0

1

Snapper 7027737

BELT, Drive 101.7" EL
(Superseded to 7027737YP)

Note: ('94 Model Year)

$92.99

$

Usually ships in 2-12 days

0

2

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7024863

PULLEY, Drive
(Superseded to 7024863BMYP)

$57.99

$

Usually ships in 2-12 days

0

4

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 13

0

5

Snapper 7014303

TEE-NUT, 1/4-20
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 7032587

ANCHOR, Brake
(Superseded to 7032587YP)

$35.99

$

Usually ships in 2-12 days

0

7

Snapper 7014302

BOLT, 1/4-20 Eye
(Superseded to 7014302YP)

$4.99

$

In Stock, only 3 left!

0

8

Snapper 7052886

ASSEMBLY, Brake Band
(Superseded to 7503086YP)

$38.99

$

In Stock, only 2 left!

0

9

Snapper 7011021

PIN, Clevis, 1/4 x 1 1/4"
(Superseded to 7023914YP)

$

$

Not available

10

Snapper 7029788

SPRING, Blade Brake
(Superseded to 7029788YP)

Note: Was 23172

$31.99

$

Usually ships in 2-12 days

0

11

Snapper 7047912

ASSEMBLY, Brake Arm
(Superseded to 7047912YP)

$101.99

$

Usually ships in 2-12 days

0

12

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.99

$

In Stock, Qty 18

0

13

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 10

0

14

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7024765

CABLE, Blade 19.75"
(Superseded to 7024765YP)

$14.99

$

Usually ships in 2-12 days

0

16

Snapper 7032169

DRUM, Brake
(Superseded to 7035378YP)

$12.99

$

In Stock, Qty 8

0

17

Snapper 7018574

PULLEY, Idler
(Superseded to 7018574SM)

$40.99

$

In Stock, Qty 20+

0

18

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap
(Superseded to 7090167SM)

$

$

Not available

19

Snapper 7034043

GUIDE, Belt
(Superseded to 7034043YP)

$38.99

$

Usually ships in 2-12 days

0
