BH 140H33BBV (80878) - Snapper Black Hawk 33" Lawn Tractor, 14hp Hood, Bumper, Headlights & Components Parts Diagram

Black Hawk 33" Lawn Tractor, 14hp

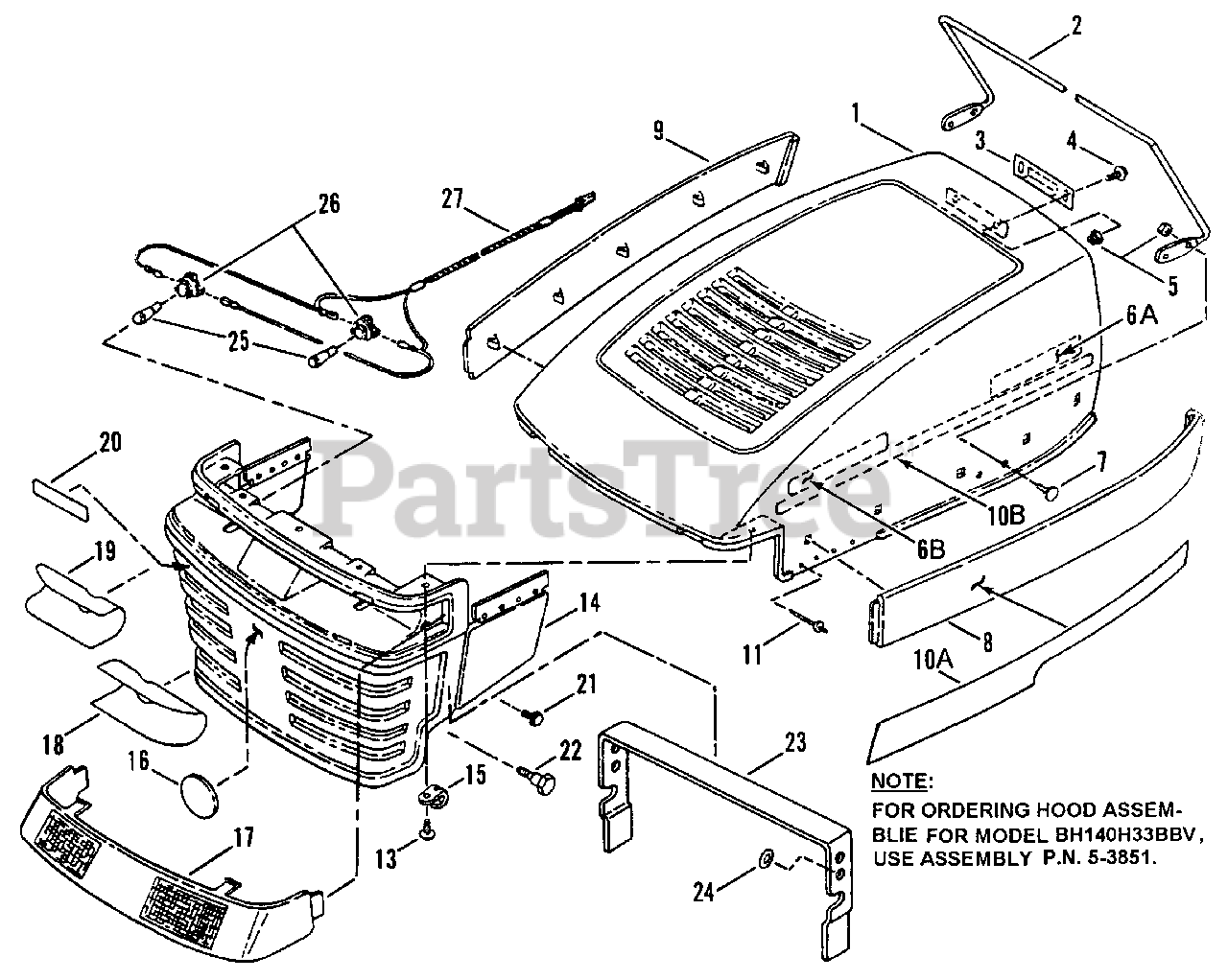

Hood, Bumper, Headlights & Components Parts Diagram

  • Title

1

Snapper 7024471

HOOD, Mozart
(Superseded to 7063298YP)

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7016766

ROD, Hood Support
(Superseded to 7016766YP)

$15.99

$

Usually ships in 2-12 days

0

3

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7026228

LOGO - BLACKHAWK

$

$

Not available

7

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7029572

PANEL, Hood (Left Hand) (Black)

$

$

Currently unavailable

9

Snapper 7029571

PANEL, Hood (Right Hand) (Black)

$

$

Currently unavailable

10A

Snapper 7027840

DECAL, Hood (Right Hand) (Hydro Drive)
(Superseded to 7027840YP)

$13.99

$

Usually ships in 2-12 days

0

10A

Snapper 7027841

DECAL, Hood (Left Hand) (Hydro Drive)
(Superseded to 7027841YP)

$7.49

$

Usually ships in 2-12 days

0

10B

Snapper 7026706

DECAL, Hood (Right Side)

$

$

Currently unavailable

10B

Snapper 7026707

DECAL, Hood (Left Side Shown)

$

$

Not available

11

Snapper 7091095

RIVET, 1/8" Pop
(Superseded to 7091095SM)

$2.99

$

In Stock, Qty 12

0

13

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00MM, Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7029570

GRILLE, Hood
(Superseded to 7029570YP)

$152.99

$

Usually ships in 2-12 days

0

15

Snapper 7026482

CLIP, "J"
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

16

Snapper 7026377

DECAL, Molded Medallion

Note: Was 71544 (Hydro Models Only!)

$

$

Currently unavailable

17

Snapper 7029602

LENS, Grille (Headlights)
(Superseded to 7029602YP)

$60.99

$

Usually ships in 2-12 days

0

18

Snapper 7026180

DECAL, Reflect (Left Hand)
(Superseded to 7026180YP)

$7.99

$

Usually ships in 2-12 days

0

19

Snapper 7026179

DECAL, Reflect (Right Hand)
(Superseded to 7026179YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 7022968

DECAL - SNAPPER, 4" Molded Logo (Silver Letters - Blue Stripe)

Note: (Hydro Mdls. Only!)

$

$

Not available

21

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

22

Snapper 7024061

BOLT, Shoulder, 3/8-16 x 1 1/4" Hex Socket, Torx
(Superseded to 7024061YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7034324

BRACE, Hood Support
(Superseded to 7034324YP)

$50.99

$

Usually ships in 2-12 days

0

24

Snapper 7011791

RETAINER, Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

26

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

27

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0
