BH 1730 SE (1696256-00) - Briggs & Stratton 30" Snow Thrower, 16.5 Gross TP (2012) Auger Drive Group Parts Diagram

30" Snow Thrower, 16.5 Gross TP

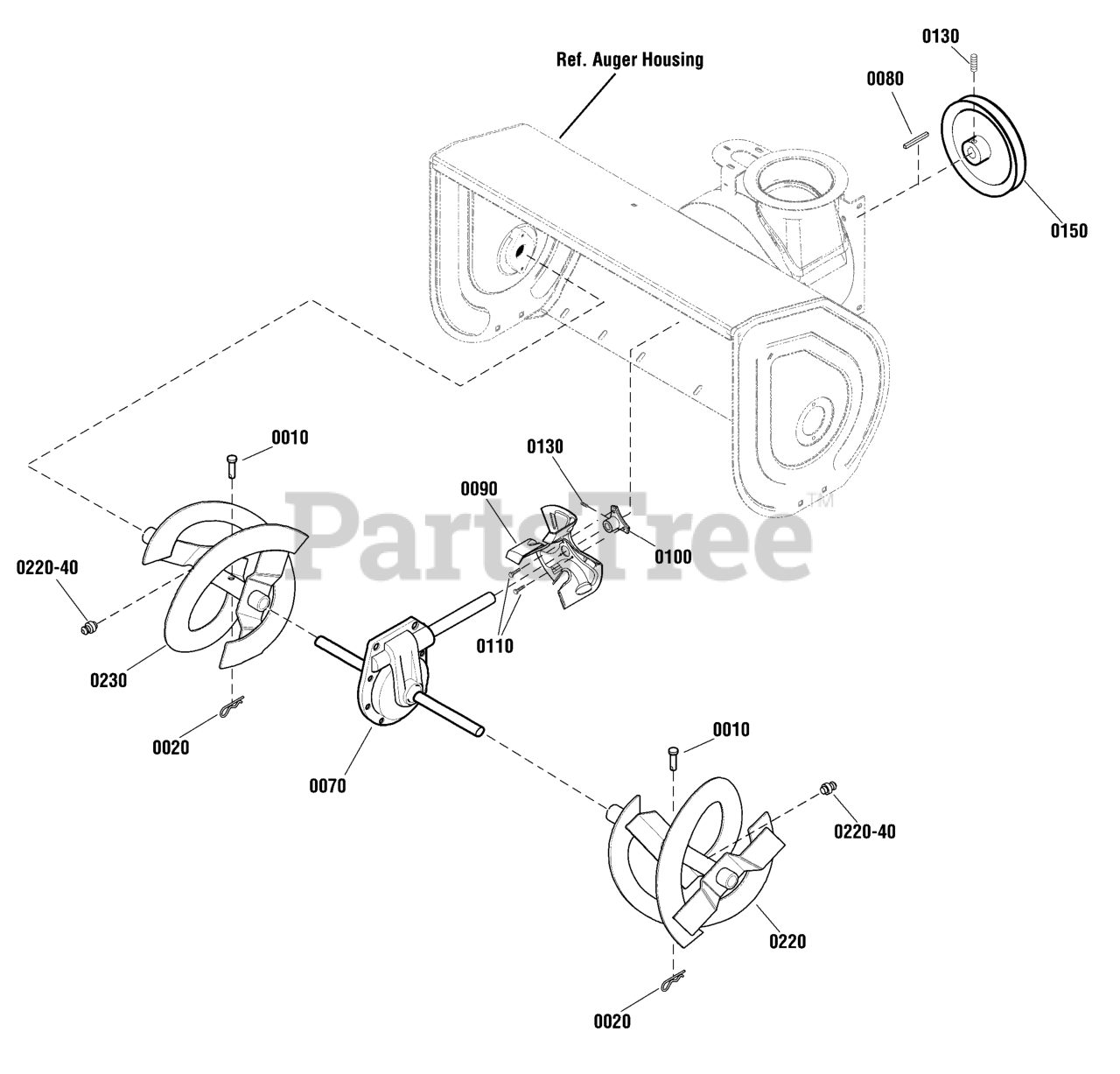

Auger Drive Group Parts Diagram

  • Title

0010

Murray 1739295YP

PIN, Sheer, 1/4 x 1-3/4
(Superseded to 703063)

$3.99

$

In Stock, Qty 20+

0

0020

Murray 1739292YP

PIN, Cotter, 3/16
(Superseded to 703060)

$4.99

$

In Stock, Qty 6

0

0070

Murray 1755492YP

GEAR CASE ASSEMBLY, 30"

$452.99

$

Usually ships in 2-12 days

0

0080

Murray 2818312SM

KEY, Woodruff
(Superseded to 703891)

$5.49

$

In Stock, Qty 8

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, only 1 left!

0

0100

Murray 1739073YP

HUB, Impeller

$24.99

$

In Stock, only 2 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 11

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

Usually ships in 2-12 days

0

0150

Murray 1752220YP

PULLEY, Auger

$93.99

$

In Stock, only 2 left!

0

0180

Murray 1733406SM

SPACER, Auger, 1"

$5.99

$

Usually ships in 2-12 days

0

0220

Murray 1737079BJYP

AUGER, LH, 30"

Note: (Includes Ref. 0220-40)

$184.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0230

Murray 1737078BJYP

AUGER, RH, 30"

Note: (Includes Ref. 0220-40)

$151.99

$

In Stock, only 1 left!

0

--

Murray 1739821YP

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0010 & 0020)

$14.99

$

Usually ships in 2-12 days

0
