BH 1730 SE (1696256-00) - Briggs & Stratton 30" Snow Thrower, 16.5 Gross TP (2012) Engine & Frame Group Parts Diagram

30" Snow Thrower, 16.5 Gross TP

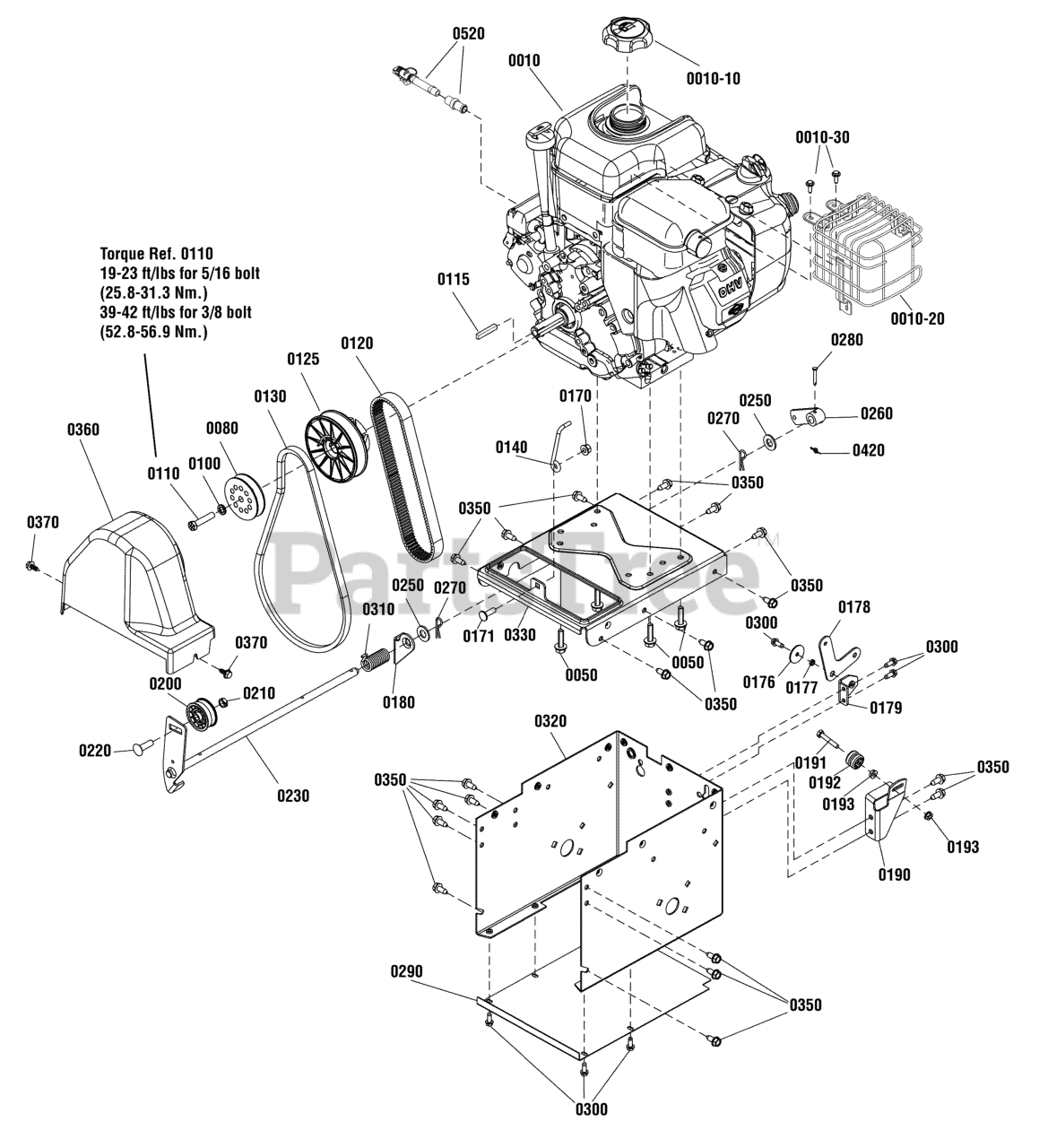

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 21M314-0129-H1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Engine Model: 21M314-0129-H1)

$

$

Not available

0010-10

Murray 795027

CAP, Fuel

$10.99

$

In Stock, only 2 left!

0

0010-20

Murray 796384

GUARD, Muffler

Note: (Includes Ref. No 0010-30)

$83.99

$

Usually ships in 2-12 days

0

0010-30

Murray 699234

SCREW, Muffler Guard

$3.99

$

In Stock, only 4 left!

0

0050

Murray 75246GS

CAPSCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1737509YP

PULLEY ASSEMBLY

$

$

Not available

0100

Murray 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

0110

Murray 2860768YP

CAPSCREW, Hex Head, 3/8-24 X 1-3/4, G8
(Superseded to 703132)

$3.99

$

Usually ships in 2-12 days

0

0115

Murray 2157427SM

KEY, Parallel

$5.49

$

In Stock, only 1 left!

0

0120

Murray 1737220YP

V-BELT, Multi Speed

$49.99

$

In Stock, only 1 left!

0

0125

Murray 1733968YP

PULLEY ASSEMBLY

$76.99

$

In Stock, only 1 left!

0

0130

Murray 1736421YP

BELT, Auger, V4L 38.35

$30.99

$

In Stock, Qty 5

0

0140

Murray 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0170

Murray 1960684SM

NUT, Hex KEPS, Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0171

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0176

Murray 1960151SM

WASHER, 1/4 x 1-1/4 x 1/16
(Superseded to 703136)

$3.99

$

Usually ships in 2-12 days

0

0177

Murray 1733095SM

SPACER, Powdered Metal

$4.49

$

Usually ships in 2-12 days

0

0178

Murray 1737329YP

BELLCRANK

$29.99

$

Usually ships in 2-12 days

0

0179

Murray 1737328AYP

BRACKET, Lower

$11.99

$

Usually ships in 2-12 days

0

0180

Murray 1737297YP

BRACKET, Support, Auger Idler

$9.49

$

Usually ships in 2-12 days

0

0190

Murray 1737347AYP

BRACKET, Guide Wheel

$21.99

$

Usually ships in 2-12 days

0

0191

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

0192

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 10

0

0193

Murray 192432GS

NUT, Lock, Serrated, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic, Ball Bearing

$21.99

$

In Stock, only 1 left!

0

0210

Murray 1960251SM

NUT, Hex Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

0220

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1737296YP

IDLER, Auger
(Superseded to 1756662YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2" Flat
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

BRACKET & HUB ASSEMBLY, Spring

$20.99

$

In Stock, Qty 5

0

0270

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

0290

Murray 1737221AYP

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

0310

Murray 1737350YP

SPRING, Torsional

$7.99

$

In Stock, only 1 left!

0

0320

Murray 1737106BSYP

FRAME BOX

$113.99

$

Usually ships in 2-12 days

0

0330

Murray 1754136BSYP

PLATE, Engine Mount

$58.99

$

Usually ships in 2-12 days

0

0350

Murray 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1750551YP

COVER, Belt

$26.99

$

In Stock, only 1 left!

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, SEMS, Taptite, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0420

Murray 7023590SM

COTTER PIN, 1/4" Self Locking

$3.99

$

In Stock, Qty 20+

0

0520

Murray 1751106YP

OIL DRAIN ASSEMBLY
(Superseded to 798980)

$

$

Not available
