BH 1730 SE (1696481-00) - Briggs & Stratton 30" Snow Thrower, 16.5 Gross TP (2015) Gear Case Assembly (1755811) Parts Diagram

30" Snow Thrower, 16.5 Gross TP

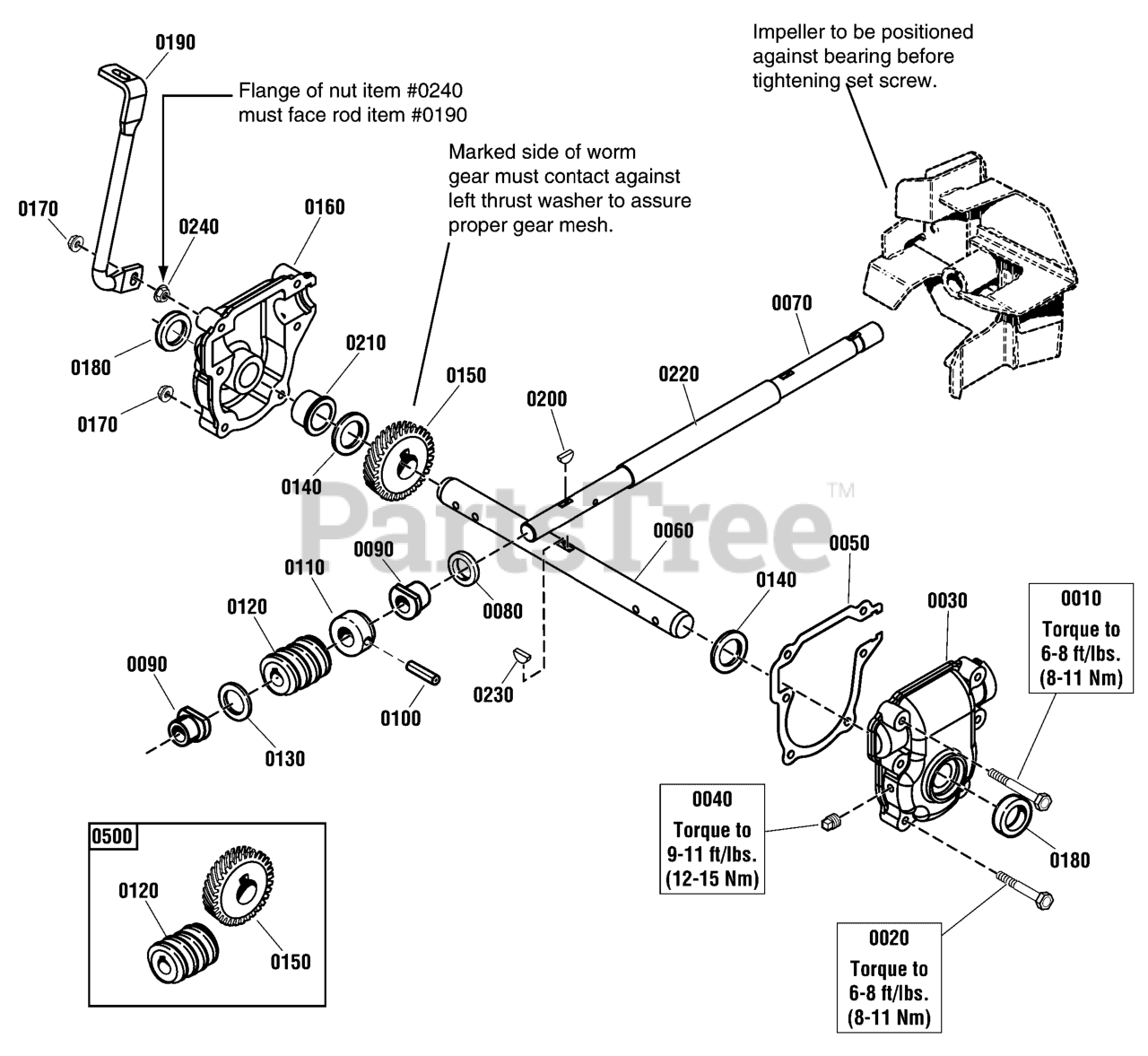

Gear Case Assembly (1755811) Parts Diagram

  • Title

0010

Murray 703166

CAPSCREW, 1/4-20 x 2-3/4

$6.49

$

Usually ships in 2-12 days

0

0020

Murray 704291

CAPSCREW, Hex Head, 1/4-20 X 2 1/4

$5.49

$

Usually ships in 2-12 days

0

0030

Murray 1734218SM

GEAR CASE, Left
(Superseded to 1732207SM)

$396.99

$

Usually ships in 2-12 days

0

0040

Murray 1668971SM

TAPERED PIPE PLUG

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 1612124SM

GASKET

$17.99

$

In Stock, only 1 left!

0

0060

Murray 1732440SM

SHAFT, Auger Cutoff

$53.99

$

Usually ships in 2-12 days

0

0070

Murray 1754687YP

SHAFT, Worm Cutoff

$59.99

$

Usually ships in 2-12 days

0

0080

Murray 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 6

0

0090

Murray 1612149SM

FLANGE BUSHING

$51.99

$

In Stock, Qty 7

0

0100

Murray 2836098SM

PIN, Drive Lock

$18.99

$

In Stock, Qty 6

0

0110

Murray 1612127SM

THRUST COLLAR

$30.99

$

In Stock, only 2 left!

0

0120

ROLLED WORM CASE

Note: (Not a serviceable part. Order Ref. No. 0500)

$

$

Not available

0130

Murray 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

0140

Murray 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 7

0

0150

GEAR, Worm

Note: (Not a serviceable part. Order Ref. No. 0500)

$

$

Not available

0160

Murray 1734219SM

GEAR CASE, Right
(Superseded to 1732207SM)

$396.99

$

Usually ships in 2-12 days

0

0170

Murray 703916

NUT, Top Lock Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0180

Murray 2118118SM

SEAL

$10.99

$

In Stock, Qty 6

0

0190

Murray 1732152SM

BRACKET, Wireform

$33.99

$

In Stock, only 1 left!

0

0200

Murray 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

0210

Murray 1732991SM

BUSHING

$16.99

$

Usually ships in 2-12 days

0

0220

Murray 1612111SM

TUBE

$21.99

$

In Stock, Qty 5

0

0230

Murray 704280

KEY, Woodruff

$4.99

$

In Stock, Qty 10

0

0240

Murray 703233

NUT, Flange, 1/4-20

$4.49

$

In Stock, only 2 left!

0

0500

Murray 706853

KIT, Gears

Note: (Includes Ref. Nos. 0120 & 0150)

$

$

Not available
