BH 2160 - Poulan Chainsaw (2006-11) Shaft Parts Diagram

Chainsaw

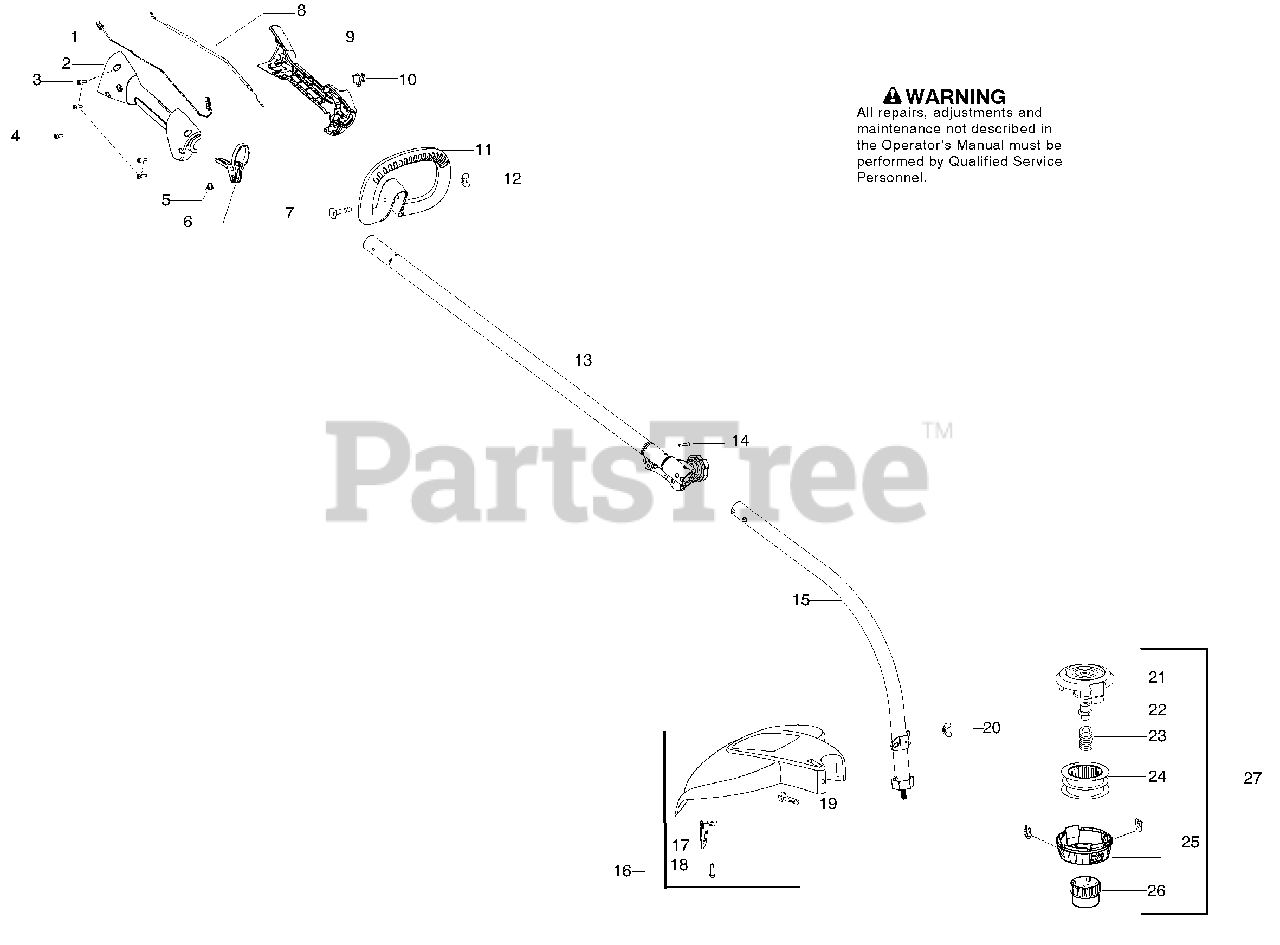

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 545191801

Assy-Switch Wire

$

$

Not available

2

Electrolux/AYP 545187602

Housing-Throttle (RH)

$14.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016449

Screw M4 x 1.75

$6.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 530015805

Screw 10-14 x 1/2
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

5

Electrolux/AYP 545190001

Spring-Trigger

$4.99

$

In Stock, Qty 7

0

6

Electrolux/AYP 545008073

Kit - Trigger
(Superseded to 545008077)

Note: (Incl. 5)

$9.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 530015786

Bolt - 1/4-20 x 2

$4.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 545199301

Assy - Throttle Cable

$

$

Not available

9

Electrolux/AYP 545187502

Housing-Throttle (LH)

$14.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 16

0

11

Electrolux/AYP 530058583

Assy - Handle Assist

Note: (Incl. 7,12)

$8.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016152

Wingnut - 1/4-20
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 545003366

Kit-Driveshaft Upper (Incl.#14)
(Superseded to 575260201)

$44.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530016344

Screw - 12-24 x .480

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 545024301

Kit-Driveshaft Lower
(Superseded to 530071788)

$66.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530071824

Kit-Shield

Note: (Incl. 17,18,19,20)

$31.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530052287

Limiter-Line

$4.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530015814

Screw - 10-14 x 3/4

$6.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 530015820

Bolt - 1/4-20 x 1-1/4

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530016152

Wingnut - 1/4-20
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 537419303

Housing

$10.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 537419901

Adapter

$8.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 537338801

Spring
(Superseded to 537338801)

$6.49

$

In Stock, Qty 7

0

24

Electrolux/AYP 545080801

Assy - Spool

$

$

Not available

25

Electrolux/AYP 545003365

Kit - Cover and Eyelet

$12.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 537419601

Knob
(Superseded to 537419601)

$6.49

$

In Stock, Qty 20+

0

27

Electrolux/AYP 952701717

Accy. - TNG 7 Cutting Head
(Superseded to 590267601)

Note: (Incl. 21,22,23,24,25,26)

$26.99

$

In Stock, Qty 6

0

27

Electrolux/AYP 545186845

Manual

Note: Not Shown

$

$

Not available

27

Electrolux/AYP 545209101

Decal-Shaft Warning (lower)

Note: Not Shown

$

$

Not available

27

Electrolux/AYP 545167703

Decal-Shaft Warning (upper)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

45

Electrolux/AYP 530071259

Kit-Oil Pump

Note: (incl 46,47,49)

$18.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 4 left!

0

47

Electrolux/AYP 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, Qty 5

0

48

Electrolux/AYP 530016064

Screw

$4.99

$

In Stock, Qty 6

0

49

Electrolux/AYP 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530047663

Assy-Oil-Pickup

Note: (Incl. 51,52)

$4.99

$

In Stock, Qty 8

0

51

Electrolux/AYP 530038373

Pickup-Oiler

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530056533

Filter-Oil

$6.49

$

Usually ships in 3-10 days

0
