BH 500 (82362) - Snapper Black Hawk 19" Walk-Behind Mower Engine, Cutting Deck & Blade Parts Diagram

Black Hawk 19" Walk-Behind Mower

Engine, Cutting Deck & Blade Parts Diagram

  • Title

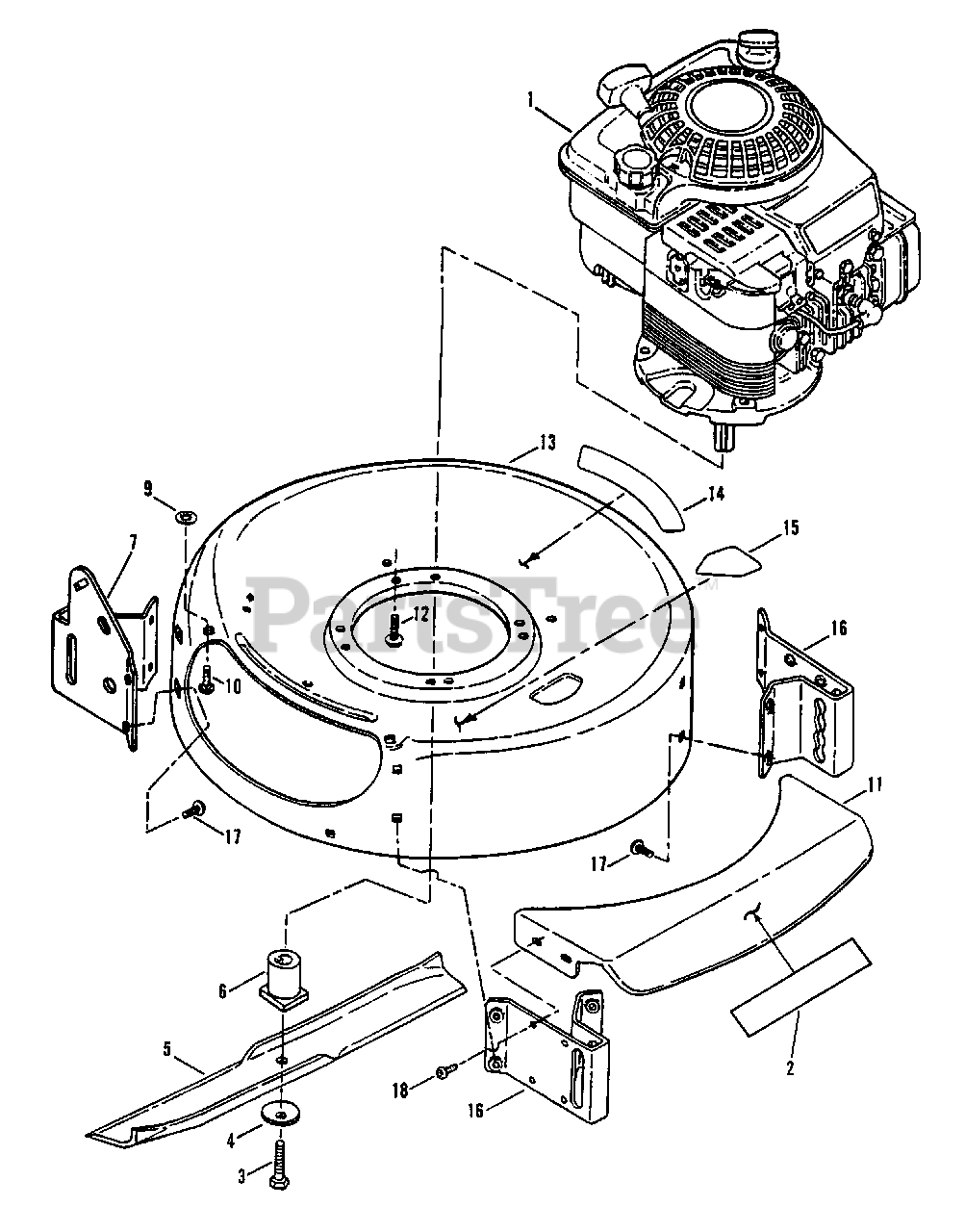

1

*ENGINE, 5 HP Briggs & Stratton XM

Note: Model 12F802-0878-01

$

$

Not available

2

Snapper 7029403

DECAL, Front

Note: BLACKHAWK BH500

$

$

Currently unavailable

3

Snapper 7090187

SCREW, 3/8-24 x 2 Hex Head Cap, Grade 5
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 19

0

5

Snapper 7017167

BLADE, Mulching

$

$

Not available

6

Snapper 7015626

HUB, Blade
(Superseded to 7015626YP)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 7035322

BRACKET, Rear Wheel
(Superseded to 7035322YP)

Note: (Right Side - Shown)

$20.99

$

Usually ships in 2-12 days

0

?8

Snapper 7035323

BRACKET, Rear Wheel
(Superseded to 7035323YP)

Note: (Left Side -

$20.99

$

Usually ships in 2-12 days

0

9

Snapper 7011791

RETAINER, 5/18 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7034363

PLATE, Deck Front
(Superseded to 7034363YP)

$21.99

$

Usually ships in 2-12 days

0

12

Snapper 7091088

SCREW, 3/8-16 x 2 Hex Washer Head, Self-Tapping
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

13

Snapper 7053822

DECK, 20" Cutting

Note: (Includes items 14 & 15)

$

$

Not available

14

Snapper 7024379

DECAL - WARNING

$

$

Not available

15

Snapper 7013010

DECAL - DANGER
(Superseded to 7013010SM)

Note: (Keep Hands & Feet Away)

$9.49

$

In Stock, Qty 20+

0

16

Snapper 7035321

BRACKET, Front Wheels
(Superseded to 7035321YP)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Torx, Self-Tapping
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0
