BH 500 (82362) - Snapper Black Hawk 19" Walk-Behind Mower Handles & Controls Parts Diagram

Black Hawk 19" Walk-Behind Mower

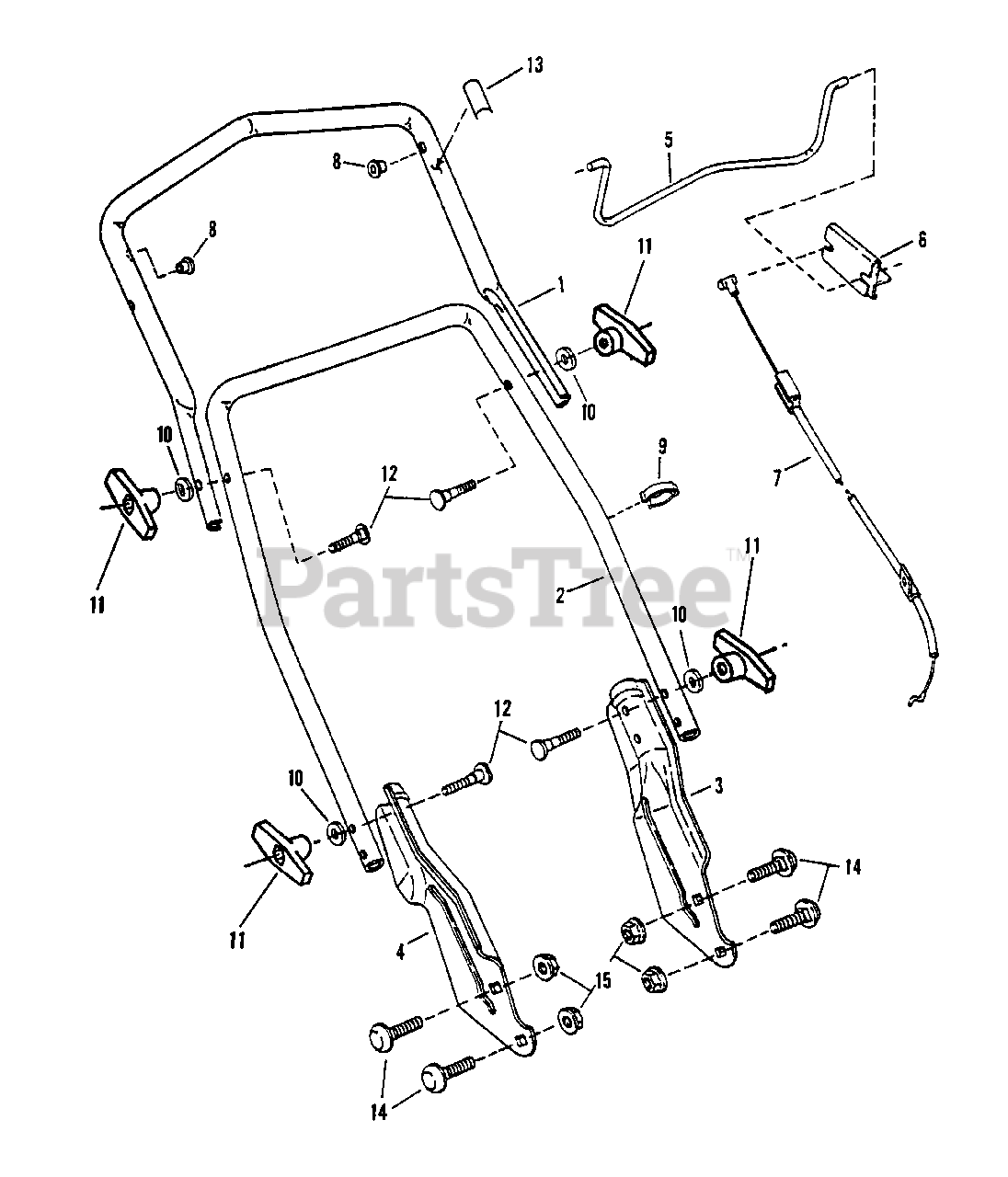

Handles & Controls Parts Diagram

  • Title

1

Snapper 7074384

HANDLE, Upper
(Superseded to 7074384YP)

Note: Was 33473

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7036350

HANDLE, Middle

$

$

Not available

3

Snapper 7046502

HANDLE, Lower (Left Hand)
(Superseded to 7046502YP)

Note: Was 35343

$56.99

$

Usually ships in 2-12 days

0

4

Snapper 7035342

HANDLE, Lower (Right Hand)
(Superseded to 7035342YP)

$43.99

$

In Stock, only 1 left!

0

5

Snapper 7017072

CONTROL, Blade
(Superseded to 7047011YP)

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7023765

CABLE, Blade Control
(Superseded to 7023765YP)

$16.99

$

Usually ships in 2-12 days

0

8

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 10

0

10

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

Note: Was 91068

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7029405

KNOB, 5/16-18 T-Style
(Superseded to 7029405YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7091740

SCREW, 5/16-18 x 2 Curved Head
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 11

0

13

Snapper 7024211

DECAL, Blade Control
(Superseded to 7024211YP)

$14.99

$

In Stock, Qty 5

0

14

Snapper 7090799

BOLT, 5/16-18 x 5/8 Short Neck Carriage
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091601

NUT, 5/18-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0
