BH 600 (82363) - Snapper Black Hawk 21" Walk-Behind Mower Handles & Controls Parts Diagram

Black Hawk 21" Walk-Behind Mower

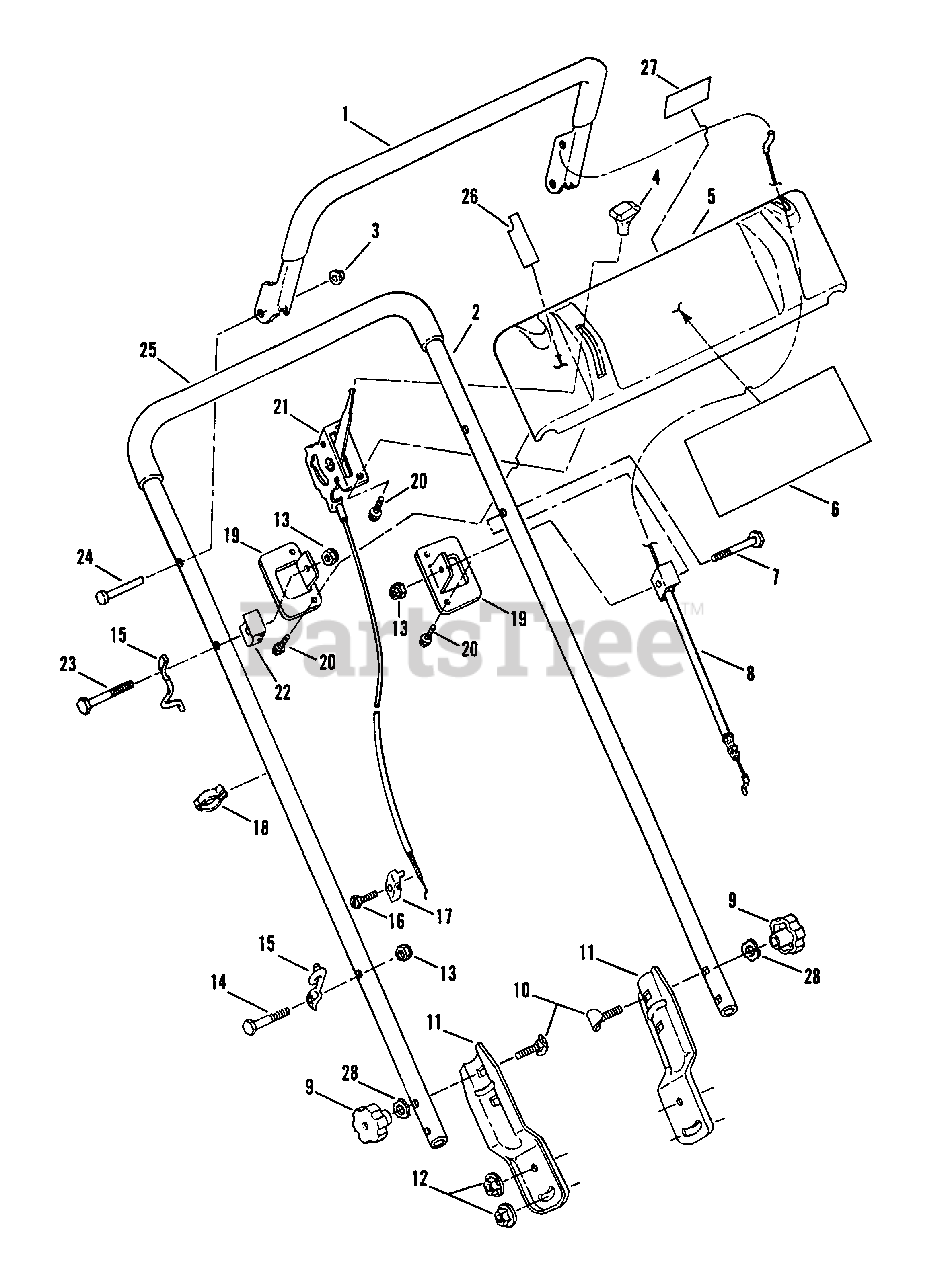

Handles & Controls Parts Diagram

  • Title

1

Snapper 7026422

CONTROL, Blade
(Superseded to 7026422YP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper 7033853

HANDLE, Upper

$

$

Currently unavailable

3

Snapper 7012542

PUSH-NUT, 5/16
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

4

Snapper 7026557

KNOB, Throttle Control
(Superseded to 7026557YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7024881

CONSOLE, Control
(Superseded to 7024881YP)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 7024995

DECAL, Console
(Superseded to 7024995YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, Grade 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7028803

CABLE ASSEMBLY, Blade Control
(Superseded to 7028803YP)

Note: Was 24561

$91.99

$

In Stock, only 1 left!

0

9

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091740

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 11

0

11

Snapper 7034848

BRACKET, Handle

Note: Was 33845

$

$

Not available

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7079577

SCREW, 1/4-20 x 1 1/2" Hex Head Cap, Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7022779

GUIDE, Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

16

Snapper 7023154

SCREW, #10-32 x 5/8" Slotted Hex Head, Self-Tapping
(Superseded to 7023154YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7023153

CLAMP, Throttle Control
(Superseded to 7023153YP)

Note: (Attaches to Engine)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7026219

CLAMP, Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 7033923

BRACKET, Console
(Superseded to 7033923YP)

$15.99

$

Usually ships in 2-12 days

0

20

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

21

Snapper 7024563

CONTROL, Throttle
(Superseded to 7024563YP)

$38.99

$

In Stock, only 1 left!

0

22

Snapper 7026440

FITTING, Handle Bar
(Superseded to 7026440YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7090892

SCREW, 1/4-20 x 2-1/4" Hex Head Cap, Grade 5
(Superseded to 7090892YP)

Note: Was 91217

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7079831

PIN, 5/16 x 1-23/64" Clevis
(Superseded to 7079831YP)

Note: Was 91230

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 7026216

GRIP, Foam
(Superseded to 7026216SM)

$26.99

$

Usually ships in 2-12 days

0

26

Snapper 7026226

DECAL, Throttle Control
(Superseded to 7026226YP)

$7.99

$

Usually ships in 2-12 days

0

27

Snapper 7026680

DECAL, Instruction
(Superseded to 7026680YP)

$5.99

$

Usually ships in 2-12 days

0

28

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
